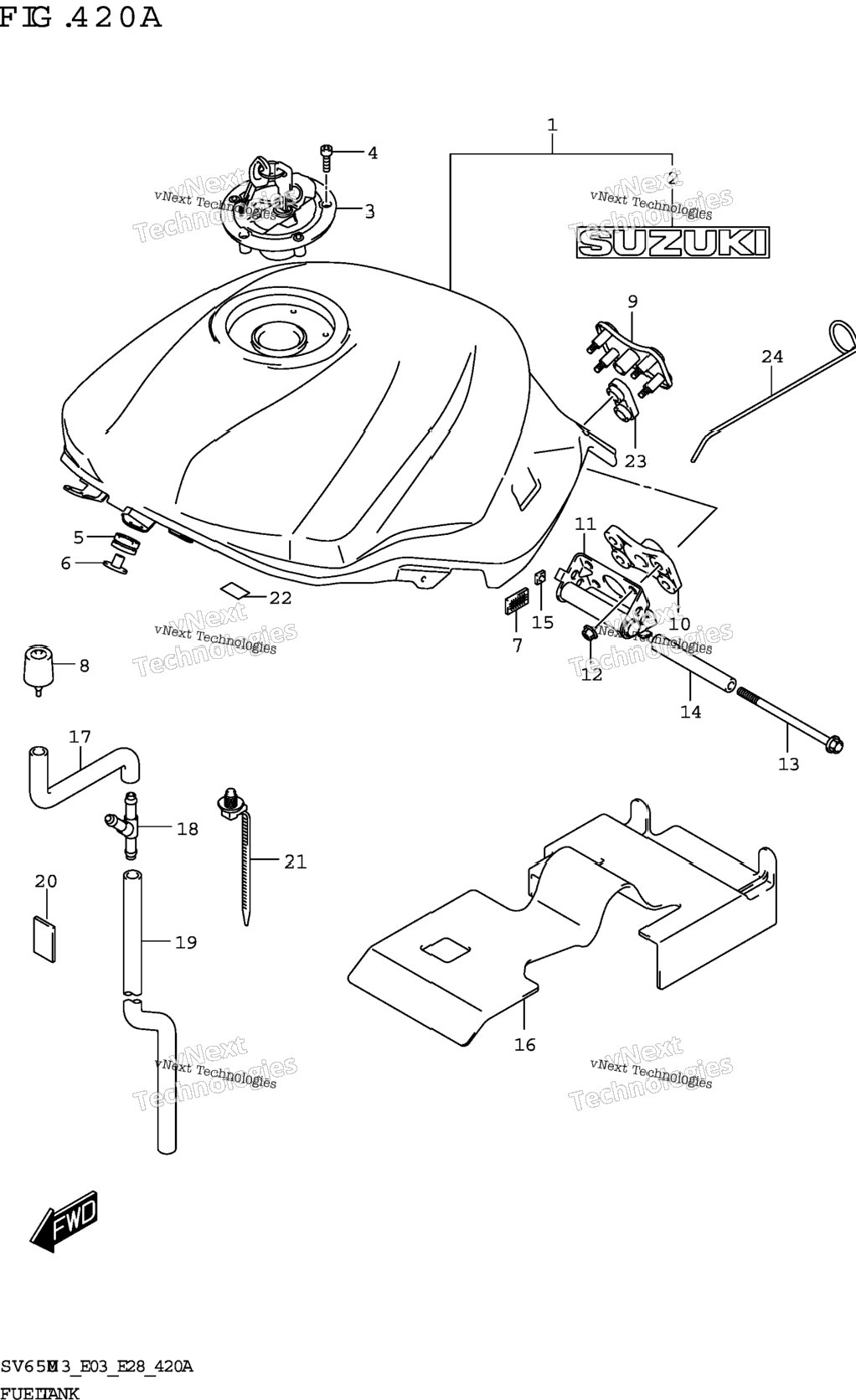

| 1-1 | 44100-18K61-YVB | TANK ASSY,FUEL (BLACK) BODY COLOR:YVB | 1 шт. | — | |
|
| 1-2 | 44100-18K61-QT8 | TANK ASSY,FUEL (BLUE) BODY COLOR:QT8 | 1 шт. | — | |
|
| 1-3 | 44100-18K61-YUD | TANK ASSY,FUEL (GRAY) BODY COLOR:BTH | 1 шт. | — | |
|
| 2-1 | 68111-47C10-YLF | .EMBLEM (GRAY) BODY COLOR:YVB | 2 шт. | — | |
|
| 2-2 | 68111-47C10-YD8 | .EMBLEM (SILVER) BODY COLOR:QT8 | 2 шт. | — | |
|
| 2-3 | 68111-47C10-YVB | .EMBLEM,SUZUKI (BLACK) BODY COLOR:BTH | 2 шт. | — | |
|
| 3 | 44200-17840 | CAP SET,FUEL TANK FILLER | 1 шт. | — | |
|
| 4 | 44244-11J00 | BOLT,FUEL TANK FILLER CAP | 3 шт. | — | |
|
| 5 | 44511-18K00 | CUSHION,FUEL TANK FRONT | 2 шт. | — | |
|
| 6 | 44512-04K00 | SPACER,FUEL TANK FRONT | 2 шт. | — | |
|
| 7 | 44572-13G00 | .FASTENER (33X25X2.6) | 2 шт. | — | |
|
| 8 | 44542-29G01 | CUSHION,FUEL TANK RR | 2 шт. | — | |
|
| 9 | 44570-16G00 | BRACKET,FUEL TANK RR UP | 1 шт. | — | |
|
| 10 | 44542-18K00 | CUSHION,FUEL TANK RR LWR | 1 шт. | — | |
|
| 11 | 44530-44H00 | BRACKET,FUEL TANK REAR | 1 шт. | — | |
|
| 12 | 08319-3106A | NUT | 4 шт. | — | |
|
| 13 | 09103-06060 | BOLT (6X100) | 1 шт. | — | |
|
| 14 | 44561-35F00 | SPACER,FUEL TANK REAR | 1 шт. | — | |
|
| 15 | 08318-1106A | NUT | 0 шт. | — | |
|
| 16 | 44191-18K00 | SHEET,HEAT SHIELD RUBBER | 1 шт. | — | |
|
| 17 | 44423-18K01 | HOSE,FUEL TANK DRAIN NO.1 | 1 шт. | — | |
|
| 18 | 09367-08010 | JOINT,DRAIN HOSE | 0 шт. | — | |
|
| 19 | 44423-18K11 | HOSE,FUEL TANK DRAIN NO.2 | 1 шт. | — | |
|
| 20 | 44427-18K10 | SHIELD,DRAIN HOSE HEAT | 1 шт. | — | |
|
| 21 | 09407-17403 | CLAMP (L:170) | 2 шт. | — | |
|
| 22 | 36611-16G00 | TAPE, HARNESS (28X50X0.13) | 1 шт. | — | |
|
| 23 | 44541-18K00 | CUSHION,FUEL TANK RR UPR | 2 шт. | — | |
|
| 24 | 44560-23H00 | STAY, FUEL TANK OPT | 1 шт. | — | |
|
