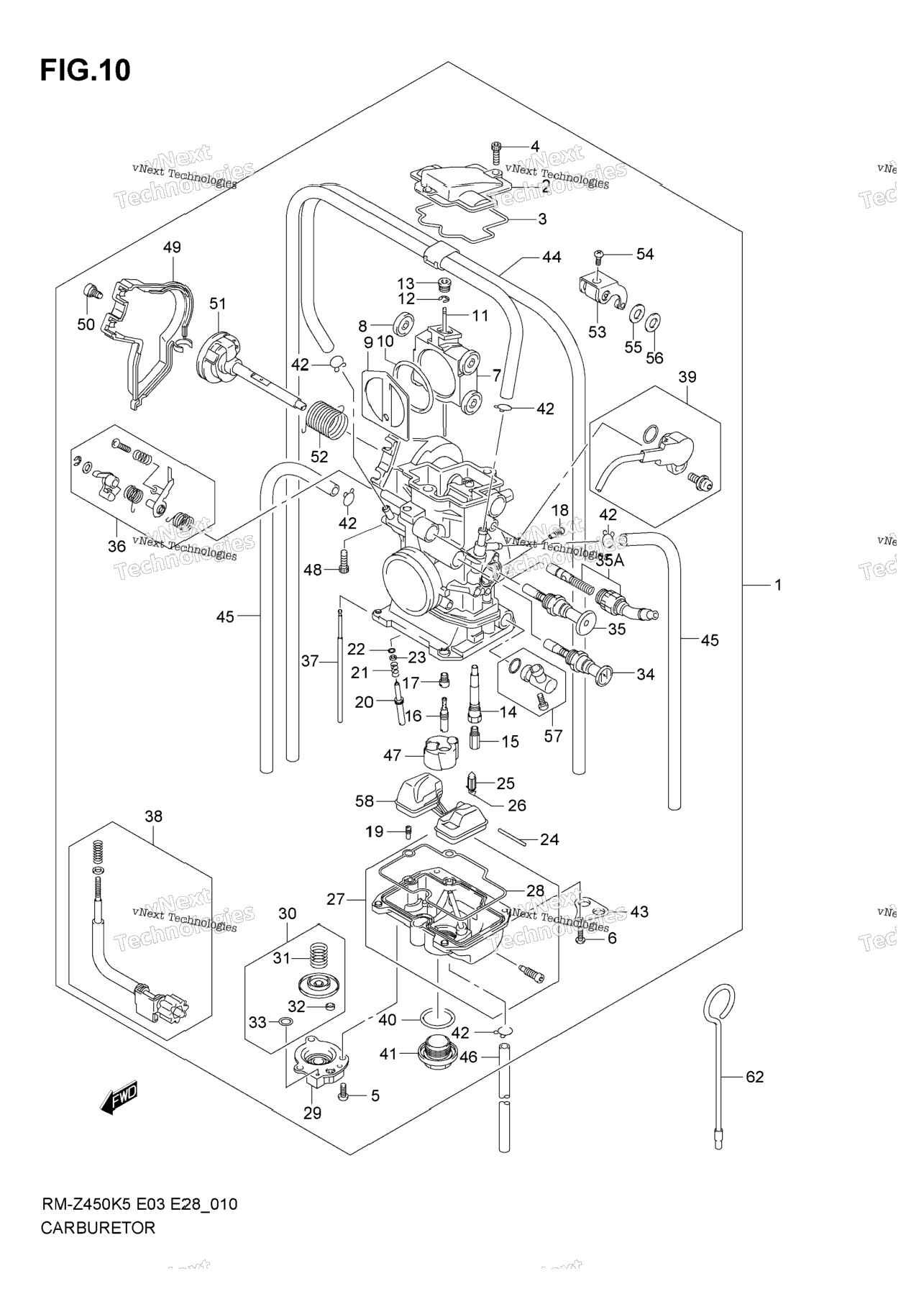

| 1 | 13200-35G10 | CARBURETOR ASSY MODEL K5 E28 | 0 шт. | — | |
|
| 1 | 13200-35G00 | CARBURETOR ASSY MODEL K5 E3 | 0 шт. | — | |
|
| 1 | 13200-35G30 | CARBURETOR ASSY MODEL K6 E28 | 0 шт. | — | |
|
| 1 | 13200-35G20 | CARBURETOR ASSY MODEL K6 E3 | 0 шт. | — | |
|
| 1 | 13200-35G50 | CARBURETOR ASSY MODEL K7 E28; Includes Item(s) 2 - 58 | 0 шт. | — | |
|
| 1 | 13200-35G40 | CARBURETOR ASSY MODEL K7 E3 | 0 шт. | — | |
|
| 2 | 13261-35G00 | TOP | 0 шт. | — | |
|
| 3 | 13266-35G00 | O RING | 1 шт. | — | |
|
| 4 | 13612-35G00 | BOLT | 2 шт. | — | |
|
| 5 | 13602-43E00 | SCREW | 3 шт. | — | |
|
| 6 | 13602-35G00 | SCREW | 4 шт. | — | |
|
| 7 | 13551-35G10 | THROTTLE VALVE | 0 шт. | — | |
|
| 8 | 13570-29F00 | BEARING | 1 шт. | — | |
|
| 9 | 13555-35G00 | FLOATING VALVE | 1 шт. | — | |
|
| 10 | 13559-29F00 | LIP SEAL | 1 шт. | — | |
|
| 12 | 13394-29F00 | BAR CLIP | 1 шт. | — | |
|
| 13 | 13600-35G00 | SCREW SET, JET NEEDLE | 1 шт. | — | |
|
| 14 | 13342-35G10 | MAIN, NOZZLE | 1 шт. | — | |
|
| 17 | 09492-35G00 | JET, STARTER | 1 шт. | — | |
|
| 18 | 09492-35G10 | JET, SLOW AIR | 1 шт. | — | |
|
| 19 | 09492-35G30 | JET, ACC | 1 шт. | — | |
|
| 20 | 13279-29F00 | SCREW, ADJUST | 1 шт. | — | |
|
| 21 | 13271-29F00 | SPRING | 1 шт. | — | |
|
| 22 | 13295-29F00 | O RING | 1 шт. | — | |
|
| 23 | 13291-29F00 | WASHER | 1 шт. | — | |
|
| 24 | 13254-26E00 | PIN, FLOAT | 1 шт. | — | |
|
| 25 | 13370-29F00 | VALVE, FLOAT | 1 шт. | — | |
|
| 26 | 13375-26E00 | CLIP | 1 шт. | — | |
|
| 27 | 13250-35G00 | FLOAT CHAMBER BODY SET MODEL K5/K6 | 0 шт. | — | |
|
| 27 | 13250-35G10 | FLOAT CHAMBER BODY SET MODEL K7 | 0 шт. | — | |
|
| 28 | 13251-35G00 | O RING | 1 шт. | — | |
|
| 29 | 13488-29F00 | COVER | 1 шт. | — | |
|
| 30 | 13480-35G00 | DIAPHRAGM SET | 1 шт. | — | |
|
| 31 | 13497-14F00 | U RING | 1 шт. | — | |
|
| 32 | 13494-15F00 | SPRING | 1 шт. | — | |
|
| 33 | 13673-26E10 | O RING | 1 шт. | — | |
|
| 34 | 13410-35G00 | STARTER VALVE MODEL K5 | 0 шт. | — | |
|
| 34 | 13410-35G20 | STARTER VALVE MODEL K6/K7 | 1 шт. | — | |
|
| 35 | 13410-35G10 | STARTER VALVE MODEL K5 | 1 шт. | — | |
|
| 35A | 13410-35G30 | STARTER VALVE MODEL K6/K7 | 1 шт. | — | |
|
| 36 | 13490-35G00 | LEVER SET, PUMP MODEL K5 | 1 шт. | — | |
|
| 36 | 13490-35G10 | LEVER SET, PUMP MODEL K6/K7 | 1 шт. | — | |
|
| 37 | 13487-35G00 | ROD | 1 шт. | — | |
|
| 38 | 13270-35G00 | SCREW SET | 1 шт. | — | |
|
| 39 | 13580-35G00 | SENSOR SET, THROTTLE | 1 шт. | — | |
|
| 40 | 13246-28E00 | O RING | 1 шт. | — | |
|
| 41 | 13247-28E00 | BOLT, DRAIN | 1 шт. | — | |
|
| 42 | 09401-06101 | CLIP | 5 шт. | — | |
|
| 43 | 13693-36E00 | PLATE | 2 шт. | — | |
|
| 44 | 13680-35G00 | PIPE SET, BOWL VENT | 1 шт. | — | |
|
| 45 | 13686-35G00 | PIPE | 2 шт. | — | |
|
| 46 | 13684-35G00 | PIPE | 1 шт. | — | |
|
| 47 | 13257-35G00 | PLATE, BUFFER | 0 шт. | — | |
|
| 48 | 13296-35G00 | SCREW | 0 шт. | — | |
|
| 49 | 13311-35G00 | COVER | 1 шт. | — | |
|
| 50 | 13312-35G00 | BOLT | 1 шт. | — | |
|
| 51 | 13550-35G01 | THROTTLE SHAFT | 0 шт. | — | |
|
| 52 | 13573-35G00 | SPRING | 1 шт. | — | |
|
| 53 | 13564-35G00 | LINK ARM | 0 шт. | — | |
|
| 54 | 13605-35G00 | SCREW | 1 шт. | — | |
|
| 55 | 13572-29F00 | WASHER | 1 шт. | — | |
|
| 56 | 13574-35G00 | WASHER | 1 шт. | — | |
|
| 57 | 13670-35G00 | JOINT SET | 1 шт. | — | |
|
| 58 | 13240-35G00 | FLOAT | 1 шт. | — | |
|
| 59 | 09491-30018 | JET, MAIN (150) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-30019 | JET, MAIN (152) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-31012 | JET, MAIN (155) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-31013 | JET, MAIN (158) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-32010 | JET, MAIN (160) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-32011 | JET, MAIN (162) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-33009 | JET, MAIN, 165 MODEL K5 E3 | 1 шт. | — | |
|
| 59 | 09491-33009 | JET, MAIN (165) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-33010 | JET, MAIN (168) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-34010 | JET, MAIN, 170 MODEL K5 E28 | 1 шт. | — | |
|
| 59 | 09491-34010 | JET, MAIN, 170 MODEL K6/K7 E3 | 1 шт. | — | |
|
| 59 | 09491-34010 | JET, MAIN (170) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-34011 | JET, MAIN (172) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-35009 | JET, MAIN, 175 MODEL K6/K7 E28 | 1 шт. | — | |
|
| 59 | 09491-35009 | JET, MAIN (175) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-35010 | JET, MAIN (178) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-36008 | JET, MAIN (180) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-37008 | JET, MAIN (185) OPT NOT SHOWN | 1 шт. | — | |
|
| 59 | 09491-38011 | JET, MAIN (190) OPT NOT SHOWN | 0 шт. | — | |
|
| 60 | 09492-35019 | JET, SLOW (35) OPT NOT SHOWN | 1 шт. | — | |
|
| 60 | 09492-40022 | JET, SLOW (40) OPT NOT SHOWN | 1 шт. | — | |
|
| 60 | 09492-42019 | JET, SLOW, 42 | 1 шт. | — | |
|
| 60 | 09492-42019 | JET, SLOW (42) OPT NOT SHOWN | 1 шт. | — | |
|
| 60 | 09492-45032 | JET, SLOW (45) OPT NOT SHOWN | 1 шт. | — | |
|
| 60 | 09492-48013 | JET, SLOW (48) OPT NOT SHOWN | 1 шт. | — | |
|
| 60 | 09492-50023 | JET, SLOW (50) OPT NOT SHOWN | 1 шт. | — | |
|
| 60 | 09492-52011 | JET, SLOW (52) OPT NOT SHOWN | 1 шт. | — | |
|
| 60 | 09492-55017 | JET, SLOW (55) OPT NOT SHOWN | 1 шт. | — | |
|
| 60 | 09492-58001 | JET, SLOW (58) OPT NOT SHOWN | 1 шт. | — | |
|
| 60 | 09492-60016 | JET, SLOW (60) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 13383-35G10 | NEEDLE, JET (NCVP) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35G30 | NEEDLE, JET (NCVQ) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35G50 | NEEDLE, JET (NCVR) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35G70 | NEEDLE, JET (NCVS) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35G90 | NEEDLE, JET (NCVT) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35G00 | NEEDLE, JET (NCYP) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35G20 | NEEDLE, JET (NCYQ) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 13383-35G40 | NEEDLE, JET (NCYR) MODEL K5/K6 | 1 шт. | — | |
|
| 61 | 13383-35G40 | NEEDLE, JET (NCYR) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 13383-35G60 | NEEDLE, JET (NCYS) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35G80 | NEEDLE, JET (NCYT) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35GA0 | NEEDLE, JET (NKYR) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35GC0 | NEEDLE, JET (NKYS) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35GE0 | NEEDLE, JET (NKYT) MODEL K7 | 1 шт. | — | |
|
| 61 | 13383-35GE0 | NEEDLE, JET (NKYT) OPT NOT SHOWN | 1 шт. | — | |
|
| 61 | 13383-35GG0 | NEEDLE, JET (NKYU) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35GJ0 | NEEDLE, JET (NKYV) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35GB0 | NEEDLE, JET (NKZR) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35GD0 | NEEDLE, JET (NKZS) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35GF0 | NEEDLE, JET (NKZT) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35GH0 | NEEDLE, JET (NKZU) OPT NOT SHOWN | 0 шт. | — | |
|
| 61 | 13383-35GK0 | NEEDLE, JET (NKZV) OPT NOT SHOWN | 0 шт. | — | |
|
| 62 | 13220-35G00 | HOLDER, JET NEEDLE OPT | 1 шт. | — | |
|
