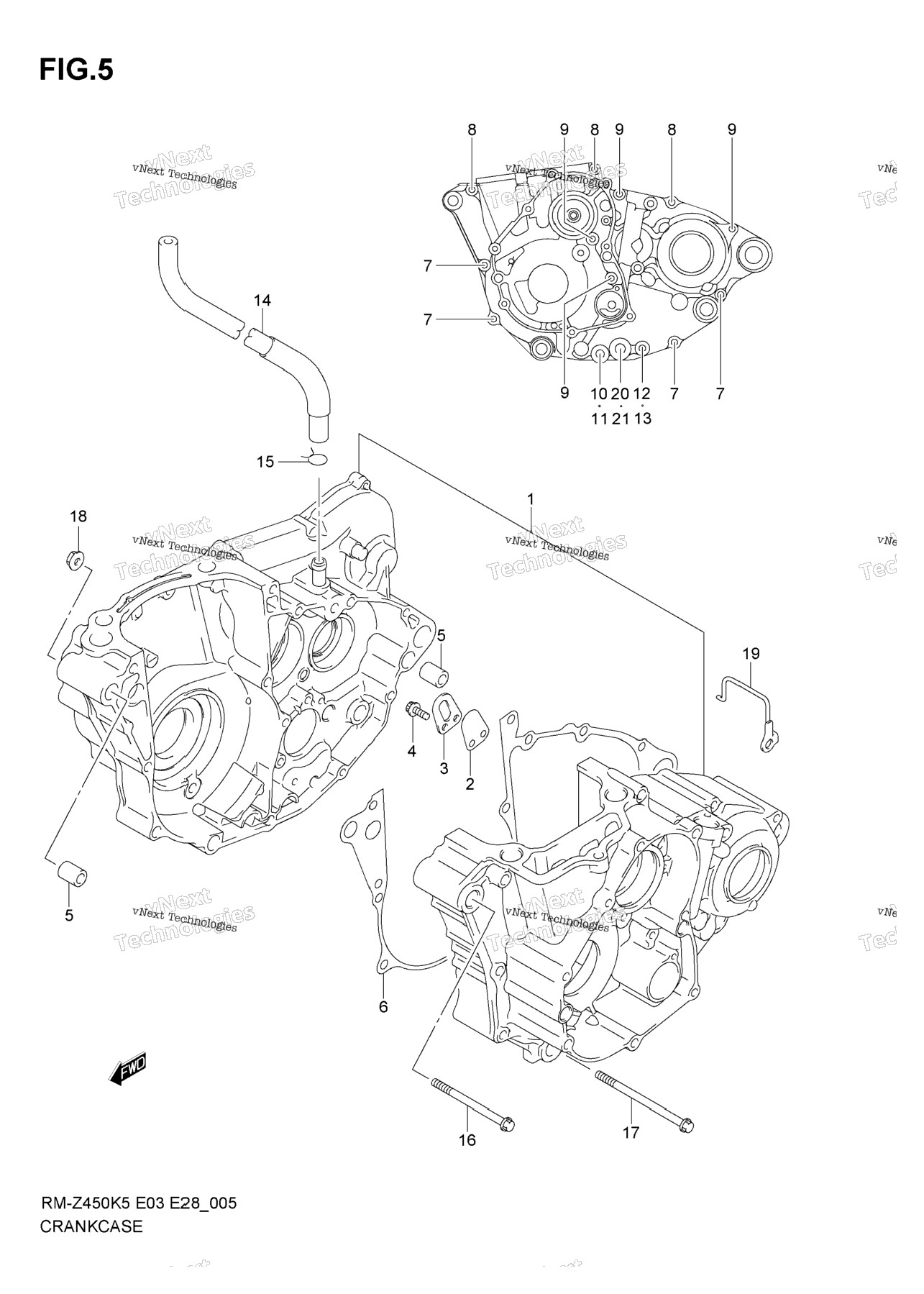

| 1 | 11301-35811 | CRANKCASE SET MODEL K5 | 0 шт. | — | |
|
| 1 | 11302-35812 | CRANKCASE SET MODEL K6 | 0 шт. | — | |
|
| 1 | 11302-35830 | CRANKCASE SET MODEL K7; Includes Item(s) 2 - 9 | 1 шт. | — | |
|
| 2 | 11322-35G00 | VALVE, CRANKCASE REED MODEL K5 | 1 шт. | — | |
|
| 3 | 11323-35G00 | STOPPER, CRANKCASE REED VALVE MODEL K5 | 1 шт. | — | |
|
| 4 | 07120-05123 | BOLT, REED VALVE MODEL K5 | 2 шт. | — | |
|
| 5 | 09206-13020 | PIN, CRANKCASE | 2 шт. | — | |
|
| 6 | 11481-35G10 | GASKET, CRANKCASE MODEL K5 | 1 шт. | — | |
|
| 6 | 11481-35G11 | GASKET, CRANKCASE MODEL K6/K7 | 1 шт. | — | |
|
| 7 | 09103-06243 | BOLT, CRANKCASE (L55) | 4 шт. | — | |
|
| 8 | 09103-06245 | BOLT, CRANKCASE (L65) | 3 шт. | — | |
|
| 9 | 09103-06257 | BOLT, CRANKCASE (L75) | 4 шт. | — | |
|
| 10 | 09103-08043 | PLUG, OIL DRAIN | 1 шт. | — | |
|
| 12 | 09103-08079 | PLUG, OIL DRAIN MODEL K7 | 1 шт. | — | |
|
| 13 | 09168-08016 | GASKET, OIL DRAIN PLUG | 1 шт. | — | |
|
| 13 | 09168-08016 | GASKET, OIL DRAIN PLUG MODEL K7 | 1 шт. | — | |
|
| 14 | 11332-35G10 | HOSE, BREATHER | 1 шт. | — | |
|
| 15 | 09401-13301 | CLIP, BREATHER HOSE | 1 шт. | — | |
|
| 16 | 09103-10141 | BOLT (10X125) MODEL K5 | 1 шт. | — | |
|
| 16 | 09103-10403 | BOLT (10X135) MODEL K6/K7 | 1 шт. | — | |
|
| 17 | 09103-10399 | BOLT (10X125) MODEL K7 | 1 шт. | — | |
|
| 17 | 09103-10127 | BOLT (10X170) MODEL K5/K6 | 1 шт. | — | |
|
| 18 | 09159-10115 | NUT | 2 шт. | — | |
|
| 19 | 13694-35G00 | GUIDE, CARBURETOR HOSE | 1 шт. | — | |
|
| 20 | 16316-10H00 | CAP, OIL STRAINER MODEL K7 | 1 шт. | — | |
|
| 21 | 09168-16003 | GASKET, OIL DRAIN PLUG MODEL K7 | 1 шт. | — | |
|
