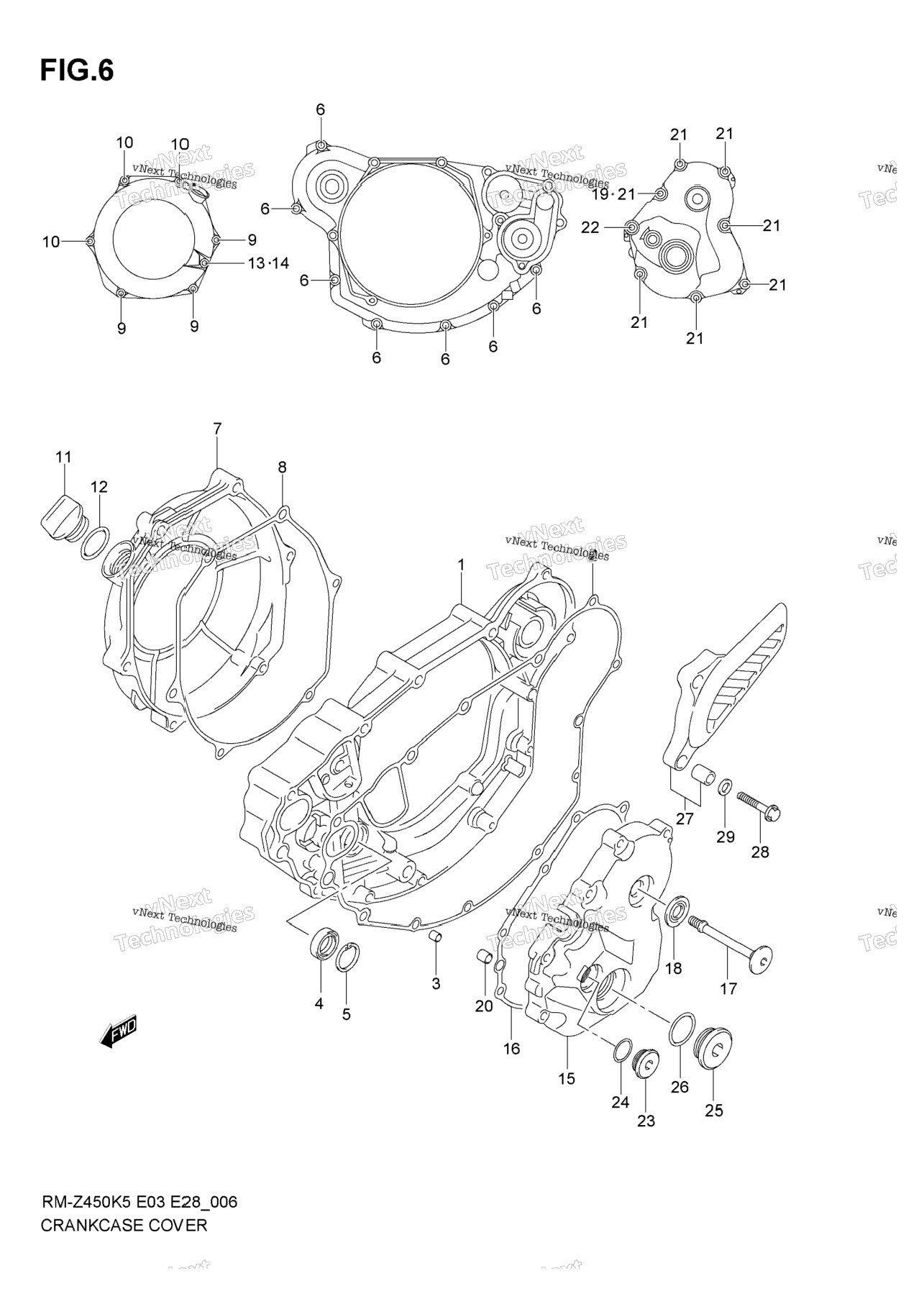

| 1 | 11340-35G10 | COVER, CLUTCH INNER MODEL K5/K6 | 0 шт. | — | |
|
| 1 | 11340-35G20 | COVER, CLUTCH INNER MODEL K7 | 0 шт. | — | |
|
| 2 | 11482-35G10 | GASKET, CLUTCH COVER | 1 шт. | — | |
|
| 4 | 09282-12012 | SEAL, OIL | 1 шт. | — | |
|
| 5 | 08331-41246 | CIRCLIP | 1 шт. | — | |
|
| 7 | 11371-35G00 | COVER, CLUTCH OUTER MODEL K5/K6 | 1 шт. | — | |
|
| 7 | 11371-35G10 | COVER, CLUTCH OUTER MODEL K7 | 0 шт. | — | |
|
| 8 | 11484-35G10 | GASKET, CLUTCH COVER OUTER | 1 шт. | — | |
|
| 10 | 09103-06254 | BOLT, OUTER COVER (6X70) | 3 шт. | — | |
|
| 11 | 09259-20022 | PLUG, OIL FILLER | 1 шт. | — | |
|
| 12 | 09280-17003 | O-RING (D:3.1,ID:16.8) | 1 шт. | — | |
|
| 13 | 07120-06103 | BOLT (6X10) | 1 шт. | — | |
|
| 14 | 09168-06004 | GASKET (6.2X11X1.2) | 1 шт. | — | |
|
| 15 | 11351-35G11 | COVER, MAGNETO MODEL K5 | 0 шт. | — | |
|
| 15 | 11351-35G20 | COVER, MAGNETO MODEL K6/K7 | 1 шт. | — | |
|
| 16 | 11483-35G10 | GASKET, MAGNETO COVER | 1 шт. | — | |
|
| 17 | 11161-35G00 | BOLT, MAGNETO COVER MODEL K5 | 0 шт. | — | |
|
| 18 | 09161-11008 | WASHER MODEL K5 | 1 шт. | — | |
|
| 19 | 09168-06018 | .GASKET (6.2X13X1.2) | 1 шт. | — | |
|
| 20 | 04211-09149 | PIN | 2 шт. | — | |
|
| 20 | 04211-09149 | PIN | 2 шт. | — | |
|
| 21 | 09103-06250 | BOLT (6X25) | 7 шт. | — | |
|
| 21 | 09103-06250 | BOLT (6X25) | 7 шт. | — | |
|
| 23 | 09248-12007 | PLUG (12X9) | 1 шт. | — | |
|
| 24 | 09280-10016 | O RING (D:1.9,ID:9.8) | 1 шт. | — | |
|
| 25 | 09259-26011 | PLUG, CRANK HOLE | 1 шт. | — | |
|
| 26 | 09280-22008 | O RING (D:3.1,ID:22.7) | 1 шт. | — | |
|
| 27 | 11360-35G00 | COVER, ENGINE SPROCKET | 1 шт. | — | |
|
| 28 | 09103-06251 | BOLT (6X20) | 2 шт. | — | |
|
| 28 | 09103-06251 | BOLT (6X30) | 1 шт. | — | |
|
| 28 | 09103-06251 | BOLT, OUTER COVER (6X30) | 3 шт. | — | |
|
| 29 | 08322-01063 | WASHER | 2 шт. | — | |
|
