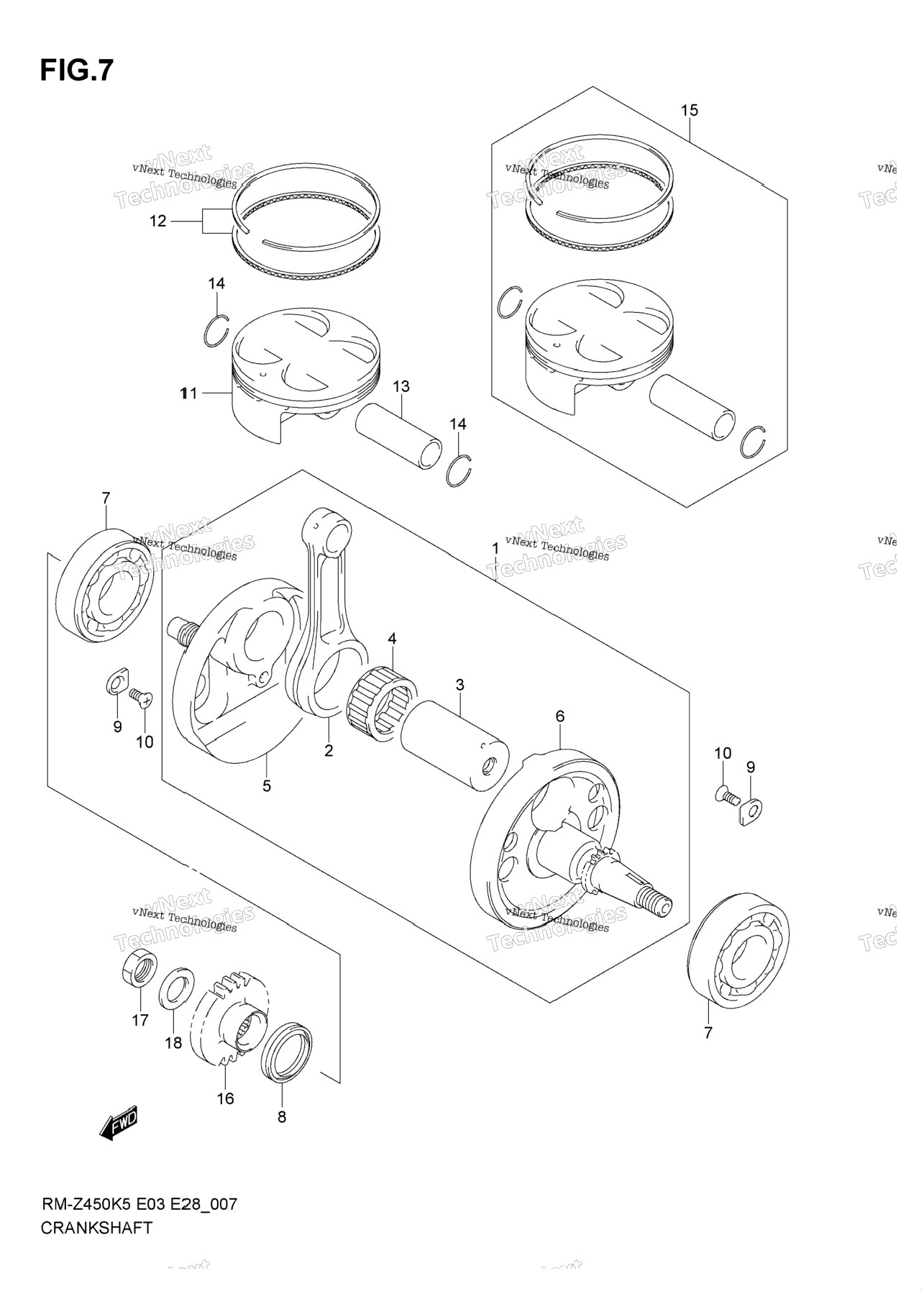

| 1 | 12200-35G01 | CRANKSHAFT ASSY MODEL K5 | 1 шт. | — | |
|
| 1 | 12200-35G10 | CRANKSHAFT ASSY MODEL K6 | 1 шт. | — | |
|
| 1 | 12200-35G20 | CRANKSHAFT ASSY MODEL K7; Includes Item(s) 2 - 6 | 1 шт. | — | |
|
| 2 | 12161-35G00-0B0 | ROD, CONNECTING | 1 шт. | — | |
|
| 3 | 12210-35G00 | PIN | 1 шт. | — | |
|
| 4 | 09263-34008-0B0 | BEARING MODEL K5 | 1 шт. | — | |
|
| 4 | 09263-34011-0B0 | BEARING MODEL K6/K7 | 1 шт. | — | |
|
| 5 | 12221-35G02 | CRANKSHAFT, RH MODEL K5/K6 | 0 шт. | — | |
|
| 5 | 12221-35G20 | CRANKSHAFT, RH MODEL K7 | 0 шт. | — | |
|
| 6 | 12261-35G02 | CRANKSHAFT, LH MODEL K5/K6 | 0 шт. | — | |
|
| 6 | 12261-35G20 | CRANKSHAFT, LH MODEL K7 | 0 шт. | — | |
|
| 7 | 09262-30115 | BEARING | 2 шт. | — | |
|
| 8 | 09283-30061 | OIL SEAL, RH (30X40X7) | 1 шт. | — | |
|
| 9 | 24741-20A00 | RETAINER MODEL K5/K6 | 4 шт. | — | |
|
| 9 | 24741-37F00 | RETAINER MODEL K7 | 4 шт. | — | |
|
| 10 | 09126-06011 | SCREW | 4 шт. | — | |
|
| 11 | 12111-35G01-0F0 | PISTON MODEL K5/K6 | 1 шт. | — | |
|
| 11 | 12111-35G20-0F0 | PISTON MODEL K7 | 0 шт. | — | |
|
| 12 | 12140-35810 | RING SET, PISTON MODEL K5 | 1 шт. | — | |
|
| 12 | 12140-35830 | RING SET, PISTON MODEL K6 | 1 шт. | — | |
|
| 12 | 12140-35840 | RING SET, PISTON MODEL K7 | 1 шт. | — | |
|
| 13 | 12151-35G01 | PIN, PISTON | 1 шт. | — | |
|
| 14 | 09381-19001 | CIRCLIP | 2 шт. | — | |
|
| 15 | 12110-35814 | PISTON KIT INC.REF.NO.11%14 OPT NOT SHOWN MODEL K5 | 1 шт. | — | |
|
| 15 | 12110-35830 | PISTON KIT INC.REF.NO.11%14 OPT NOT SHOWN MODEL K6 | 1 шт. | — | |
|
| 15 | 12110-35840 | PISTON KIT INC.REF.NO.11%14 OPT NOT SHOWN MODEL K7 | 1 шт. | — | |
|
| 16 | 21111-35G00 | GEAR, PRIMARY DRIVE | 1 шт. | — | |
|
| 17 | 09140-16036 | NUT | 1 шт. | — | |
|
| 18 | 09164-16002 | WASHER | 1 шт. | — | |
|
