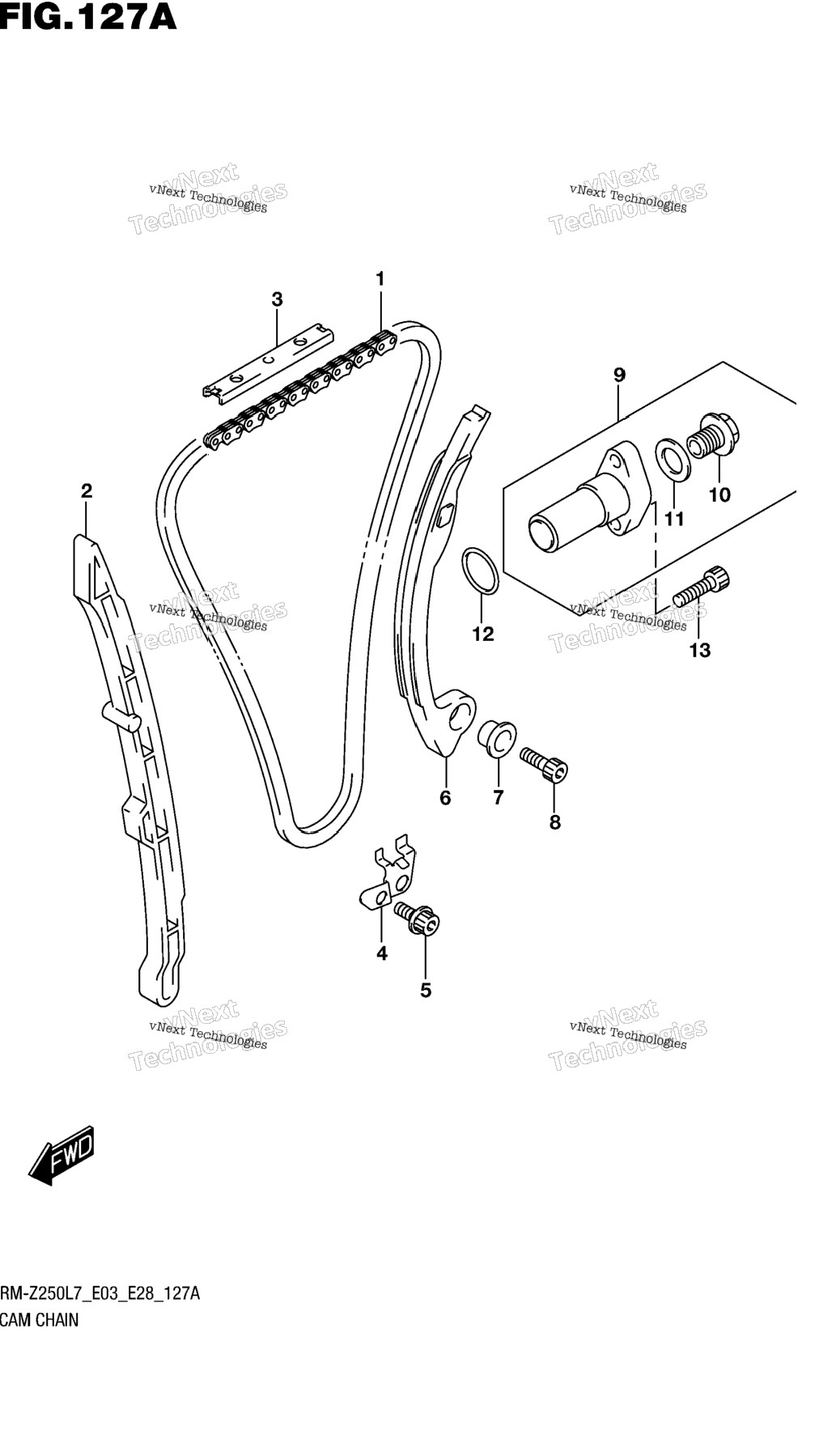

| 1 | 12760-10H00 | CHAIN, CAM SHAFT DRIVE | 1 шт. | — | |
|
| 2 | 12771-49H00 | GUIDE, CAM CHAIN NO.1 | 1 шт. | — | |
|
| 3 | 12782-35G00 | GUIDE, CAM CHAIN NO.2 | 1 шт. | — | |
|
| 4 | 12773-49H00 | RETAINER, CAM CHAIN GUIDE NO. | 1 шт. | — | |
|
| 5 | 07120-0610A | BOLT | 1 шт. | — | |
|
| 6 | 12811-49H00 | TENSIONER, CAM CHAIN | 1 шт. | — | |
|
| 7 | 12812-35G00 | SPACER, CAM CHAIN TENSIONER | 1 шт. | — | |
|
| 8 | 07130-0616A | BOLT | 1 шт. | — | |
|
| 9 | 12830-49H00 | ADJUSTER ASSY, TENSIONER | 1 шт. | — | |
|
| 10 | 12833-49H00 | .PLUG, ADJUSTER | 0 шт. | — | |
|
| 11 | 12837-49H00 | .GASKET,TENSIONER ADJUSTER | 1 шт. | — | |
|
| 12 | 09280-19001 | O RING (D:1.9,ID:18.8) | 1 шт. | — | |
|
| 13 | 07130-0625A | BOLT | 2 шт. | — | |
|
