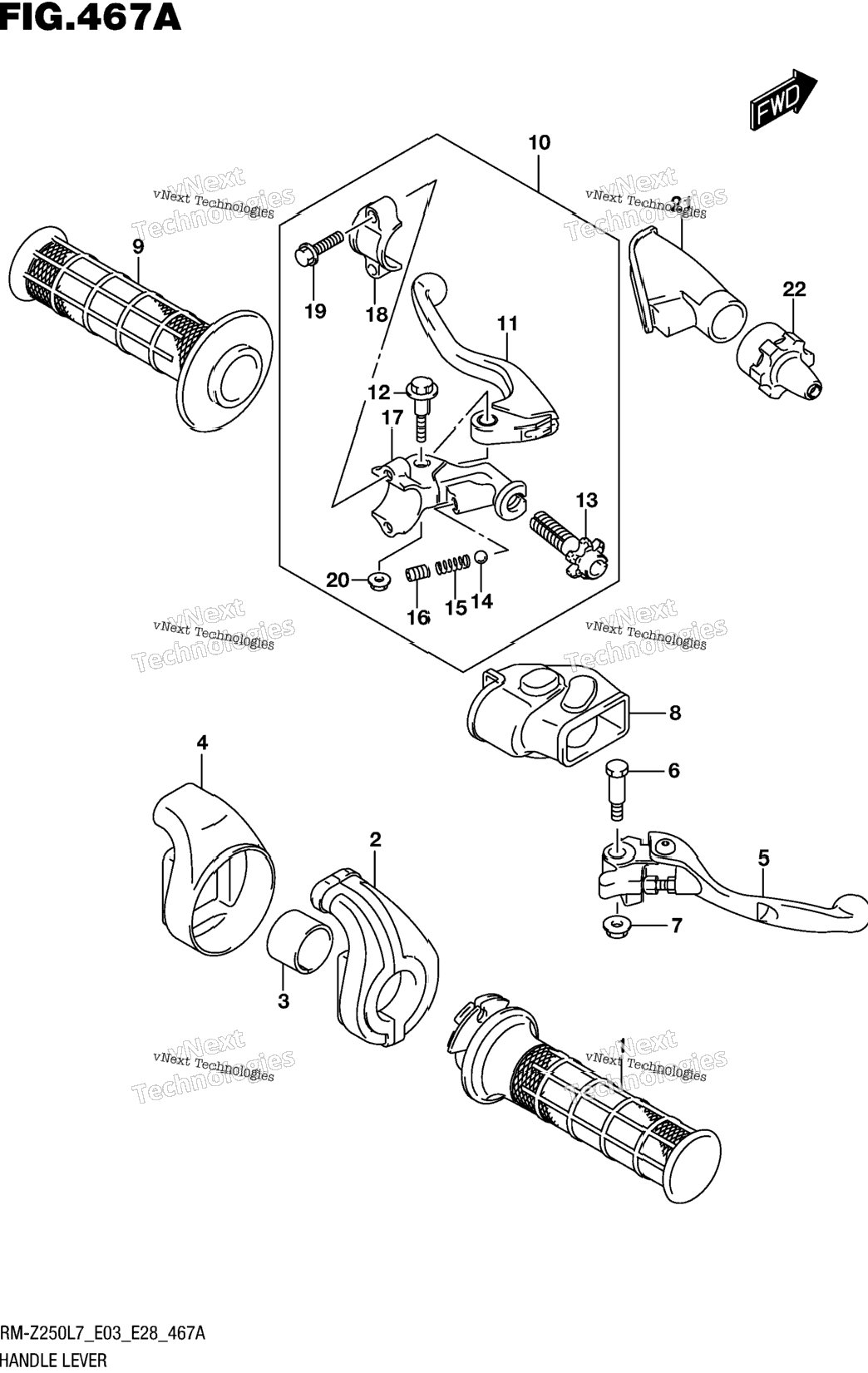

| 1 | 57110-10H10 | GRIP, THROTTLE | 1 шт. | — | |
|
| 2 | 57100-10H00 | CASE ASSY, THROTTLE | 1 шт. | — | |
|
| 3 | 57151-35G00 | COLLAR, THROTTLE CASE | 1 шт. | — | |
|
| 4 | 57129-35G00 | COVER, THROTTLE CASE | 1 шт. | — | |
|
| 5 | 57310-37F00 | LEVER ASSY, BRAKE | 1 шт. | — | |
|
| 6 | 57431-14500 | BOLT, BRAKE LEVER | 1 шт. | — | |
|
| 7 | 08316-1006A | NUT | 1 шт. | — | |
|
| 8 | 57343-35G00 | COVER, BRAKE LEVER | 1 шт. | — | |
|
| 9 | 57211-28H00 | GRIP, LH | 1 шт. | — | |
|
| 10 | 57500-35G30 | LEVER ASSY, CLUTCH | 1 шт. | — | |
|
| 11 | 57621-35G10 | .LEVER, CLUTCH | 1 шт. | — | |
|
| 12 | 57431-35G00 | .BOLT | 1 шт. | — | |
|
| 13 | 57441-37F00 | .ADJUSTER, CLUTCH CABLE | 1 шт. | — | |
|
| 14 | 06111-06003 | .BALL | 1 шт. | — | |
|
| 15 | 09440-04010 | .SPRING | 1 шт. | — | |
|
| 16 | 09134-06009 | .SCREW (6X8) | 1 шт. | — | |
|
| 17 | 57511-35G00 | .HOLDER, CLUTCH LEVER | 1 шт. | — | |
|
| 18 | 57512-28C00 | .BRACKET, CLUTCH LEVER HOLDER | 1 шт. | — | |
|
| 19 | 57513-29F10 | .BOLT, BRACKET | 2 шт. | — | |
|
| 20 | 08310-00057 | .NUT | 1 шт. | — | |
|
| 21 | 57341-28H00 | COVER, CLUTCH LEVER | 1 шт. | — | |
|
| 22 | 57342-37F00 | COVER, CLUTCH ADJUSTER | 1 шт. | — | |
|
