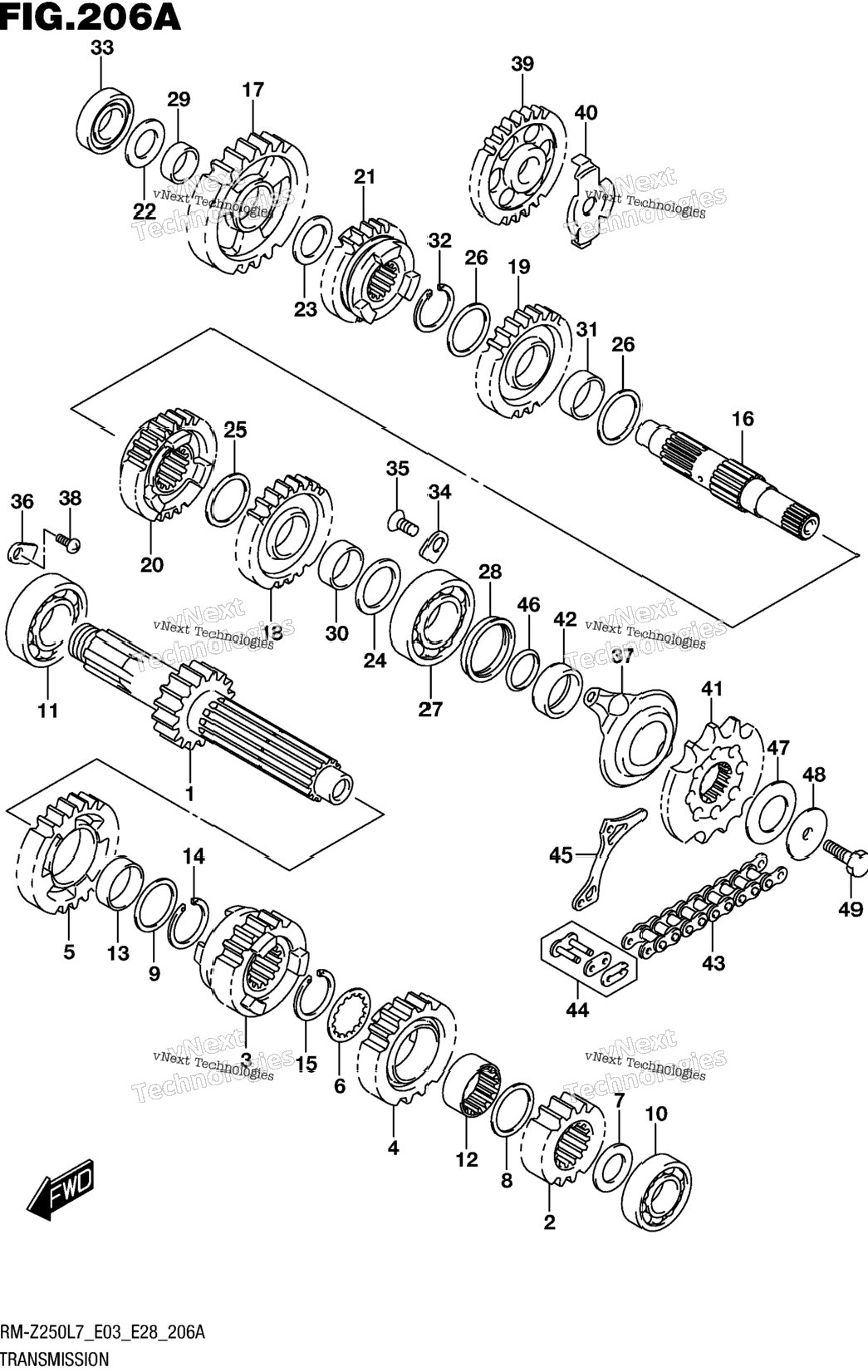

| 1 | 24120-49H10 | SHAFT, COUNTER (NT:13) | 1 шт. | — | |
|
| 2 | 24221-49H10 | GEAR, 2ND DRIVE (NT:17) | 1 шт. | — | |
|
| 3 | 24231-49H10 | GEAR, 3RD DRIVE (NT:17) | 1 шт. | — | |
|
| 4 | 24241-49H10 | GEAR, 4TH DRIVE (NT:21) | 1 шт. | — | |
|
| 5 | 24251-49H10 | GEAR, 5TH DRIVE (NT:22) | 1 шт. | — | |
|
| 6 | 24243-49H00 | WASHER, 4TH DRIVE GEAR | 1 шт. | — | |
|
| 7 | 09181-17195 | SHIM (17X28X1) | 1 шт. | — | |
|
| 8 | 09181-24008 | SHIM (24X30X1) | 1 шт. | — | |
|
| 9 | 09181-24008 | SHIM (24X30X1) | 1 шт. | — | |
|
| 10 | 09262-17040 | BEARING (17X40X9.5) LH | 1 шт. | — | |
|
| 11 | 09262-22018 | BEARING (22X50X14) RH | 1 шт. | — | |
|
| 12 | 24242-49H00 | BUSH, 4TH DRIVE GEAR | 1 шт. | — | |
|
| 13 | 24252-49H00 | BUSH, 5TH DRIVE GEAR | 1 шт. | — | |
|
| 14 | 09380-24007 | CIRCLIP | 1 шт. | — | |
|
| 15 | 09380-24007 | CIRCLIP | 1 шт. | — | |
|
| 16 | 24131-49H10 | SHAFT, DRIVE | 1 шт. | — | |
|
| 17 | 24311-49H10 | GEAR, 1ST DRIVEN (NT:28) | 1 шт. | — | |
|
| 18 | 24321-49H10 | GEAR, 2ND DRIVEN (NT:30) | 1 шт. | — | |
|
| 19 | 24331-49H10 | GEAR, 3RD DRIVEN (NT:25) | 1 шт. | — | |
|
| 20 | 24341-49H10 | GEAR, 4TH DRIVEN (NT:26) | 1 шт. | — | |
|
| 21 | 24351-49H10 | GEAR, 5TH DRIVEN (NT:24) | 1 шт. | — | |
|
| 22 | 09181-17195 | SHIM (17X28X1) | 1 шт. | — | |
|
| 23 | 09181-20167 | SHIM (20X28X1) | 1 шт. | — | |
|
| 24 | 09181-22167 | SHIM (22X30X1.0) | 1 шт. | — | |
|
| 25 | 09181-24008 | SHIM (24X30X1) | 1 шт. | — | |
|
| 26 | 09181-24008 | SHIM (24X30X1) | 2 шт. | — | |
|
| 27 | 09262-22040 | BEARING (22X52X15) LH | 1 шт. | — | |
|
| 28 | 09289-28012 | OIL SEAL (28X38X7.5) | 1 шт. | — | |
|
| 29 | 09300-20037 | BUSH (20X24X10) | 1 шт. | — | |
|
| 30 | 24323-49H00 | BUSH, 2ND DRIVEN GEAR | 1 шт. | — | |
|
| 31 | 24323-49H00 | BUSH, 2ND DRIVEN GEAR | 1 шт. | — | |
|
| 32 | 09380-24007 | CIRCLIP | 1 шт. | — | |
|
| 33 | 09262-17023 | BEARING (17X40X12) RH | 1 шт. | — | |
|
| 34 | 24741-20A00 | RETAINER | 1 шт. | — | |
|
| 35 | 09126-06011 | SCREW (6X12) | 1 шт. | — | |
|
| 36 | 24741-21A00 | RETAINER | 1 шт. | — | |
|
| 37 | 24751-49H00 | RETAINER, DRIVE SHAFT OIL SEA | 1 шт. | — | |
|
| 38 | 09125-06122 | SCREW (6X12) | 1 шт. | — | |
|
| 39 | 26260-49H10 | GEAR, KICK STARTER IDLE | 1 шт. | — | |
|
| 40 | 27516-28H00 | WASHER, ENG SPROCKET BOLT LOC | 1 шт. | — | |
|
| 41 | 27511-49H10 | SPROCKET, ENGINE (NT:13) | 1 шт. | — | |
|
| 42 | 27531-49H00 | SPACER, ENGINE SPROCKET | 1 шт. | — | |
|
| 43 | 27600-43D02-114 | CHAIN ASSY, DRIVE | 1 шт. | — | |
|
| 44 | 27620-43D02 | JOINT SET, CHAIN | 1 шт. | — | |
|
| 45 | 27641-28H00 | PLATE, FRONT CHAIN GUIDE | 1 шт. | — | |
|
| 46 | 27515-49H00 | D RING, SPROCKET SPACER | 1 шт. | — | |
|
| 47 | 27514-49H00 | WASHER, ENGINE SPROCKET WAVE | 1 шт. | — | |
|
| 48 | 27513-49H00 | WASHER, ENGINE SPROCKET | 1 шт. | — | |
|
| 49 | 27517-28H00 | BOLT, ENGINE SPROCKET | 1 шт. | — | |
|
