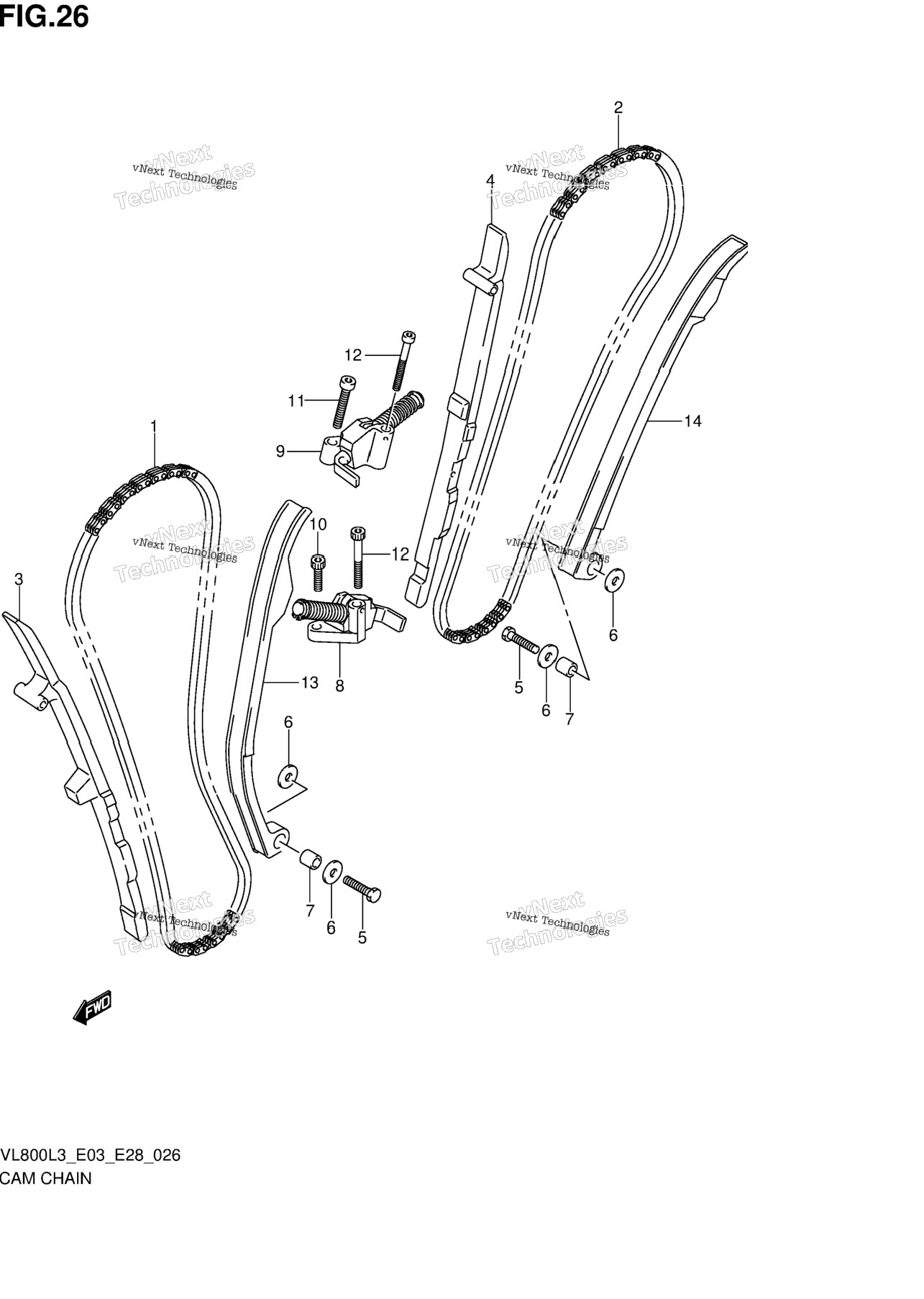

| 1 | 12760-41F01 | CHAIN,CAMSHAFT DRIVE FR (DID | 1 шт. | — | |
|
| 2 | 12760-38A21 | CHAIN,CAMSHAFT DRIVE REAR (DI | 1 шт. | — | |
|
| 3 | 12772-41F00 | GUIDE, CAM CHAIN FRONT | 1 шт. | — | |
|
| 4 | 12771-41F00 | GUIDE, CAM CHAIN REAR | 1 шт. | — | |
|
| 5 | 09100-06129 | BOLT (6X26) | 2 шт. | — | |
|
| 6 | 08211-06182 | WASHER | 4 шт. | — | |
|
| 7 | 09180-06148 | SPACER (6X11X11) | 2 шт. | — | |
|
| 8 | 12831-38A01 | ADJUSTER ASSY, TENSIONER FRONT | 1 шт. | — | |
|
| 9 | 12832-41F01 | ADJUSTER ASSY, TENSIONER REAR | 1 шт. | — | |
|
| 10 | 07130-0620A | BOLT | 1 шт. | — | |
|
| 11 | 07130-0630A | BOLT | 1 шт. | — | |
|
| 12 | 07130-0645A | BOLT | 0 шт. | — | |
|
| 13 | 12811-41F00 | TENSIONER, CAM CHAIN FRONT | 1 шт. | — | |
|
| 14 | 12816-38A01 | TENSIONER, CAM CHAIN REAR | 1 шт. | — | |
|
