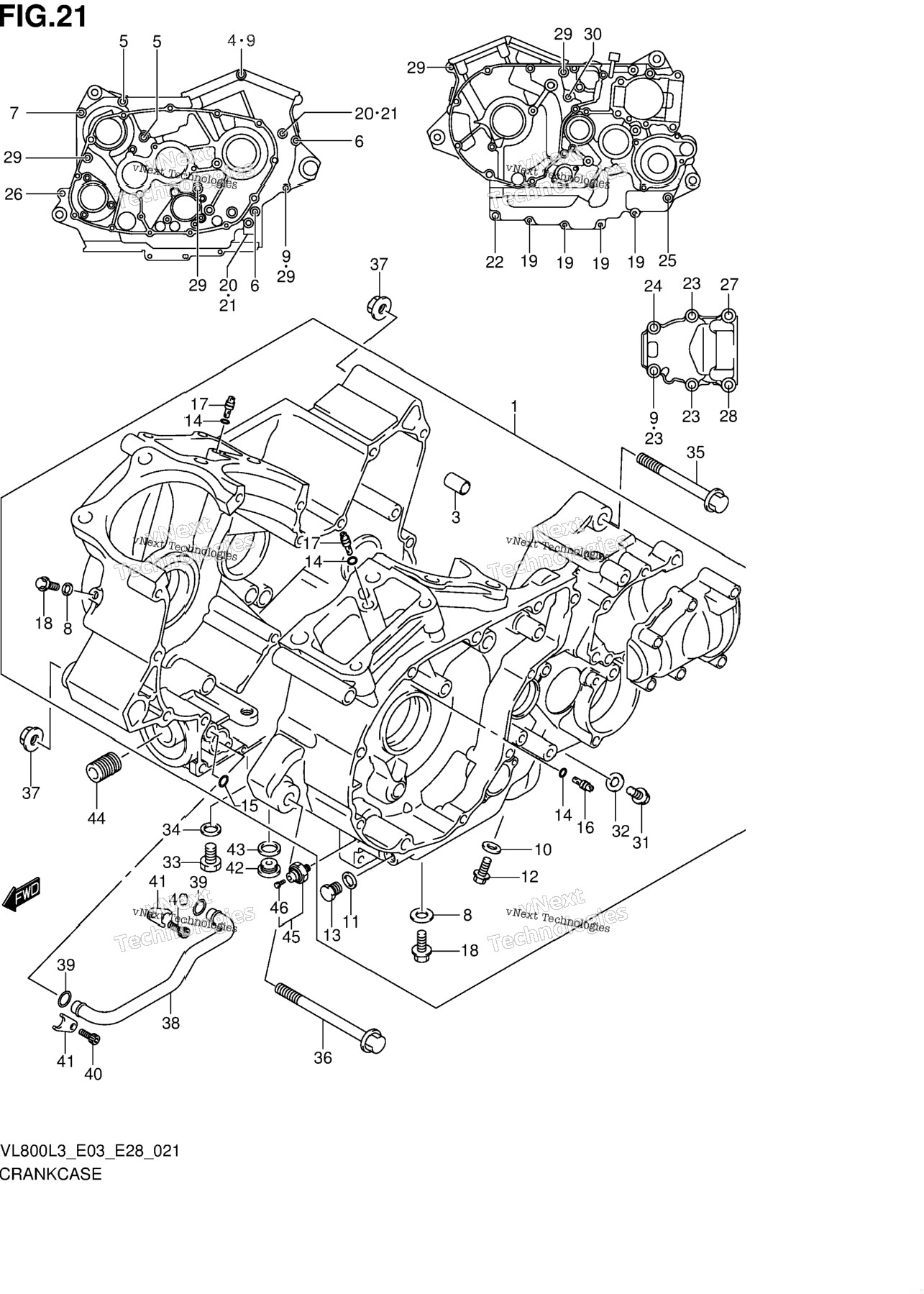

| 1 | 11302-39830 | CRANKCASE SET | 0 шт. | — | |
|
| 2 | 09160-48001 | WASHER (48.1X64X1.94) NOT ILLUSTRATED | 1 шт. | — | |
|
| 2 | 09160-48002 | WASHER (48.1X64X1.96) NOT ILLUSTRATED | 0 шт. | — | |
|
| 2 | 09160-48003 | WASHER (48.1X64X1.99) NOT ILLUSTRATED | 0 шт. | — | |
|
| 2 | 09160-48004 | WASHER (48.1X64X2.01) NOT ILLUSTRATED | 0 шт. | — | |
|
| 2 | 09160-48005 | WASHER (48.1X64X2.04) NOT ILLUSTRATED | 0 шт. | — | |
|
| 2 | 09160-48006 | WASHER (48.1X64X2.06) NOT ILLUSTRATED | 1 шт. | — | |
|
| 2 | 09160-48007 | WASHER (48.1X64X2.09) NOT ILLUSTRATED | 0 шт. | — | |
|
| 2 | 09160-48008 | WASHER (48.1X64X2.11) NOT ILLUSTRATED | 0 шт. | — | |
|
| 2 | 09160-48009 | WASHER (48.1X64X2.14) NOT ILLUSTRATED | 0 шт. | — | |
|
| 2 | 09160-48010 | WASHER (48.1X64X2.16) NOT ILLUSTRATED | 1 шт. | — | |
|
| 3 | 09206-11007 | PIN (8.4X11X20) | 4 шт. | — | |
|
| 4 | 09103-08405 | BOLT (8X160) | 0 шт. | — | |
|
| 5 | 09103-08406 | BOLT (8X120) | 0 шт. | — | |
|
| 6 | 09103-08179 | BOLT (8X105) | 2 шт. | — | |
|
| 7 | 09103-08164 | BOLT (8X95) | 1 шт. | — | |
|
| 8 | 09168-06023 | GASKET (5.8X13X1.2) | 2 шт. | — | |
|
| 10 | 09168-10002 | GASKET (10X14X3.6) | 1 шт. | — | |
|
| 11 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 12 | 09247-10008 | PLUG (10X12) | 1 шт. | — | |
|
| 13 | 09247-14026 | PLUG (14X12) | 1 шт. | — | |
|
| 14 | 09280-04004 | O RING (D:1.2,ID:4) | 3 шт. | — | |
|
| 15 | 09280-12009 | O RING (D:1.9,ID:12.6) | 1 шт. | — | |
|
| 16 | 09493-20014 | JET | 1 шт. | — | |
|
| 17 | 09493-28010 | JET AIR (#14) | 2 шт. | — | |
|
| 18 | 01550-0610A | BOLT | 2 шт. | — | |
|
| 19 | 01547-0640A | BOLT | 4 шт. | — | |
|
| 20 | 01550-0812A | BOLT | 2 шт. | — | |
|
| 22 | 01550-0835A | BOLT | 1 шт. | — | |
|
| 23 | 01550-0840A | BOLT | 3 шт. | — | |
|
| 24 | 01550-0850A | BOLT | 1 шт. | — | |
|
| 26 | 01550-0860A | BOLT | 1 шт. | — | |
|
| 27 | 01550-0855A | BOLT | 1 шт. | — | |
|
| 27 | 01550-0855A | BOLT | 1 шт. | — | |
|
| 28 | 01550-0865A | BOLT | 1 шт. | — | |
|
| 29 | 09103-08105 | BOLT (8X95) | 5 шт. | — | |
|
| 30 | 01550-0875A | BOLT | 1 шт. | — | |
|
| 31 | 09103-08407 | BOLT (8X12) | 0 шт. | — | |
|
| 32 | 09168-08016 | GASKET (8.2X14X1) | 1 шт. | — | |
|
| 32 | 09168-08016 | GASKET (8.2X14X1) | 3 шт. | — | |
|
| 32 | 09168-08016 | GASKET (8.2X14X1) | 2 шт. | — | |
|
| 33 | 09247-12011 | PLUG (12X20) OIL DRAIN | 1 шт. | — | |
|
| 34 | 09168-12002 | GASKET (12.1X16.2X3.7) | 1 шт. | — | |
|
| 35 | 09103-10706 | BOLT (10X135) | 2 шт. | — | |
|
| 36 | 09103-10705 | BOLT (10X160) | 0 шт. | — | |
|
| 37 | 09159-10113 | NUT | 3 шт. | — | |
|
| 38 | 11451-38A00 | PIPE, OIL GALLERY | 0 шт. | — | |
|
| 39 | 09280-15008 | O RING (D:3.1,ID:14.8) | 2 шт. | — | |
|
| 40 | 09106-06075 | BOLT (6X12) | 2 шт. | — | |
|
| 41 | 11461-38A00 | CLAMP | 0 шт. | — | |
|
| 42 | 09248-16013 | PLUG (16X12) | 1 шт. | — | |
|
| 43 | 09168-16002 | GASKET (16X22X2) | 1 шт. | — | |
|
| 44 | 16591-06B01 | UNION | 1 шт. | — | |
|
| 45 | 37820-33D10 | SWITCH ASSY, OIL PRESSURE | 1 шт. | — | |
|
| 46 | 37822-33D00 | .BOLT,OIL PRESSURE SWITCH | 1 шт. | — | |
|
