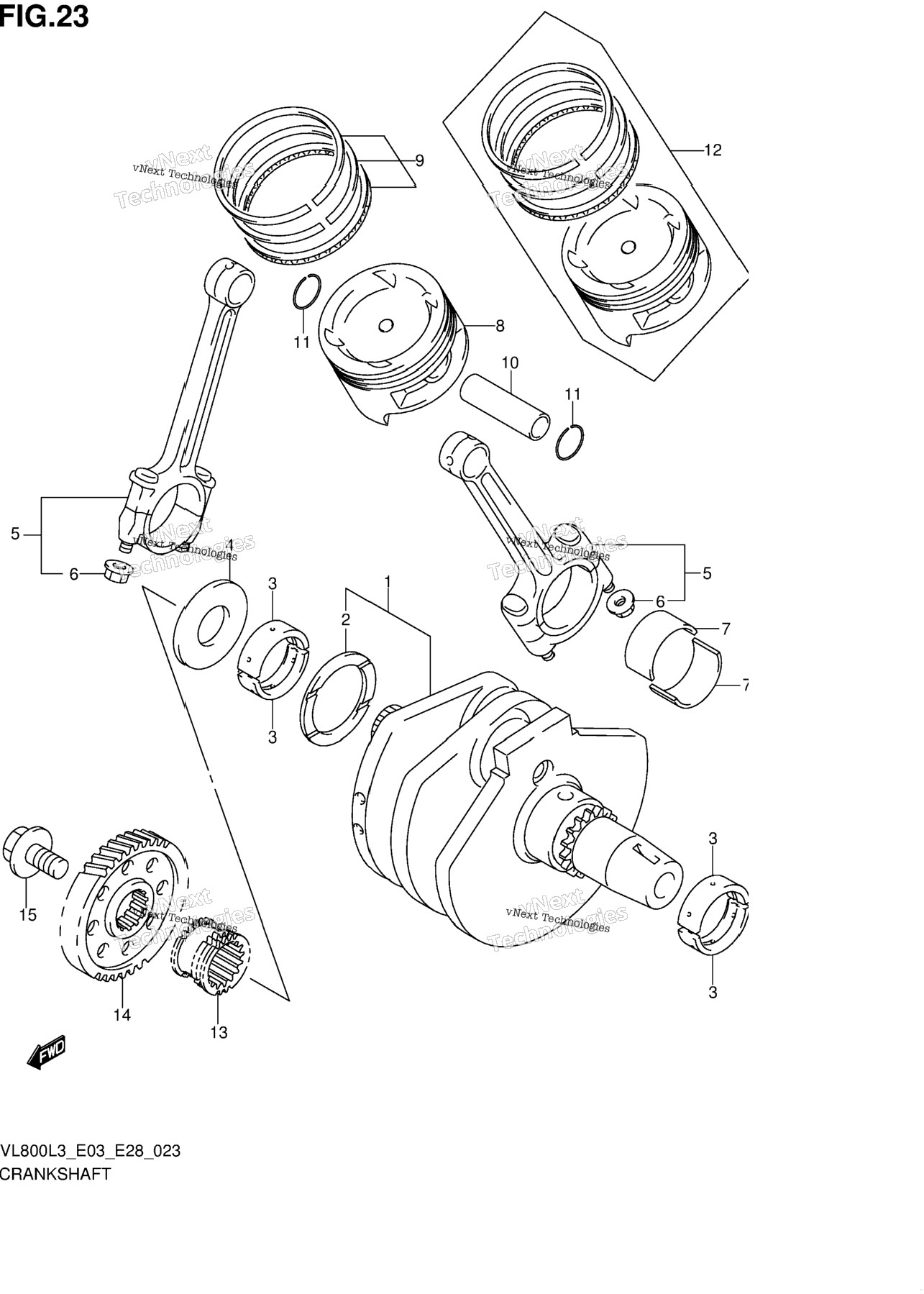

| 1 | 12000-41810 | CRANKSHAFT SET | 1 шт. | — | |
|
| 2 | 09160-48001 | WASHER (48.1X64X1.94) | 1 шт. | — | |
|
| 2 | 09160-48002 | WASHER (48.1X64X1.96) | 0 шт. | — | |
|
| 2 | 09160-48003 | WASHER (48.1X64X1.99) | 0 шт. | — | |
|
| 2 | 09160-48004 | WASHER (48.1X64X2.01) | 0 шт. | — | |
|
| 2 | 09160-48005 | WASHER (48.1X64X2.04) | 0 шт. | — | |
|
| 2 | 09160-48006 | WASHER (48.1X64X2.06) | 1 шт. | — | |
|
| 2 | 09160-48007 | WASHER (48.1X64X2.09) | 0 шт. | — | |
|
| 2 | 09160-48008 | WASHER (48.1X64X2.11) | 0 шт. | — | |
|
| 2 | 09160-48009 | WASHER (48.1X64X2.14) | 0 шт. | — | |
|
| 2 | 09160-48010 | WASHER (48.1X64X2.16) | 1 шт. | — | |
|
| 3 | 12229-39G00-0C0 | BEARING,CRANKSHAFT | 4 шт. | — | |
|
| 3 | 12229-39G00-0B0 | BEARING,CRANKSHAFT | 4 шт. | — | |
|
| 3 | 12229-39G00-0A0 | BEARING,CRANKSHAFT | 4 шт. | — | |
|
| 4 | 12652-38A00 | WASHER, CRANK THRUST | 1 шт. | — | |
|
| 5 | 12160-45C30 | ROD ASSY, CONNECTING | 2 шт. | — | |
|
| 6 | 09159-09001 | NUT | 4 шт. | — | |
|
| 7 | 12164-38E00-0B0 | BEARING, CRANK PIN (BLACK) | 4 шт. | — | |
|
| 7 | 12164-38E00-0E0 | BEARING, CRANK PIN (BLUE) | 4 шт. | — | |
|
| 7 | 12164-38E00-0C0 | BEARING, CRANK PIN (BROWN) | 4 шт. | — | |
|
| 7 | 12164-38E00-0A0 | BEARING, CRANK PIN (GREEN) | 4 шт. | — | |
|
| 7 | 12164-38E00-0D0 | BEARING, CRANK PIN (YELLOW) | 4 шт. | — | |
|
| 8 | 12111-41F00-0F0 | PISTON | 2 шт. | — | |
|
| 9 | 12140-41F00 | RING SET, PISTON | 2 шт. | — | |
|
| 10 | 12151-24A00 | PIN,PISTON | 2 шт. | — | |
|
| 11 | 09381-20004 | CIRCLIP | 4 шт. | — | |
|
| 12 | 12100-41F00-050 | PISTON SET (OS:0.5) OPT | 2 шт. | — | |
|
| 13 | 12731-38A00 | SPROCKET,CAM CHAIN DRIVE,R (N | 1 шт. | — | |
|
| 14 | 21111-38A00 | GEAR, PRIMARY DRIVE (NT:42) | 1 шт. | — | |
|
| 15 | 09103-12013 | BOLT (12X28) | 1 шт. | — | |
|
