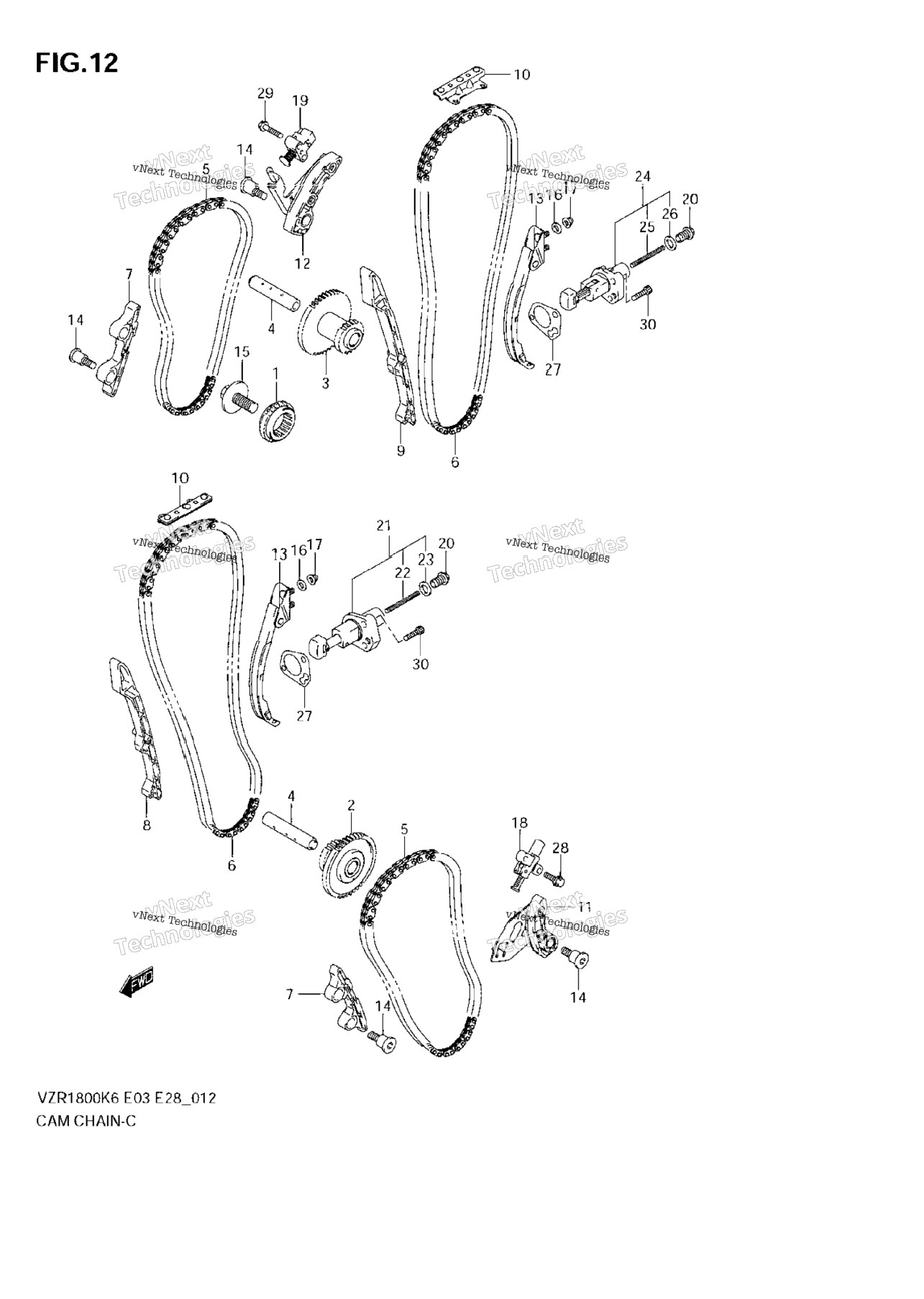

| 1 | 12731-48G00 | SPROCKET, CAM CHAIN DRIVE RH | 1 шт. | — | |
|
| 2 | 12751-48G00 | SPROCKET, CAM CHAIN IDLE FR | 0 шт. | — | |
|
| 3 | 12752-48G00 | SPROCKET, CAM CHAIN IDLE RR | 0 шт. | — | |
|
| 4 | 12755-48G00 | SHAFT, IDLER | 0 шт. | — | |
|
| 5 | 12761-48G00 | CHAIN, CAMSHAFT DRIVE NO.1 | 2 шт. | — | |
|
| 6 | 12762-48G00 | CHAIN, CAMSHAFT DRIVE NO.2 | 2 шт. | — | |
|
| 7 | 12771-48G00 | GUIDE, CAM CHAIN NO.1 | 2 шт. | — | |
|
| 8 | 12772-48G00 | GUIDE, CAM CHAIN NO.2 FR | 1 шт. | — | |
|
| 9 | 12774-48G00 | GUIDE, CAM CHAIN NO.2 RR | 1 шт. | — | |
|
| 10 | 12773-48G00 | GUIDE, CAM CHAIN NO.3 | 2 шт. | — | |
|
| 11 | 12811-48G00 | TENSIONER, CAM CHAIN NO.1 FR | 0 шт. | — | |
|
| 12 | 12813-48G00 | TENSIONER, CAM CHAIN NO.1 RR | 1 шт. | — | |
|
| 13 | 12814-48G00 | TENSIONER, CAM CHAIN NO.2 | 2 шт. | — | |
|
| 14 | 12812-31G00-A05 | BOLT | 6 шт. | — | |
|
| 15 | 09103-12013 | BOLT (12X28) | 1 шт. | — | |
|
| 16 | 09168-06018 | .GASKET (6.2X13X1.2) | 4 шт. | — | |
|
| 17 | 08313-20067 | .NUT | 4 шт. | — | |
|
| 18 | 12831-48G00 | ADJUSTER, TENSIONER NO.1 FR | 0 шт. | — | |
|
| 19 | 12832-48G00 | ADJUSTER, TENSIONER NO.1 RR | 0 шт. | — | |
|
| 20 | 12833-17G00-A08 | PLUG | 2 шт. | — | |
|
| 21 | 12834-48G00 | ADJUSTER, TENSIONER NO.2 FR Includes Item(s) 22 - 23 | 1 шт. | — | |
|
| 24 | 12835-48G00 | ADJUSTER, TENSIONER NO.2 RR Includes Item(s) 25 - 26 | 1 шт. | — | |
|
| 25 | 12831-35F00 | SPRING | 1 шт. | — | |
|
| 25 | 12831-35F00 | SPRING | 1 шт. | — | |
|
| 26 | 12837-24F10 | GASKET | 1 шт. | — | |
|
| 26 | 12837-24F10 | GASKET | 1 шт. | — | |
|
| 27 | 12837-27G00 | GASKET | 2 шт. | — | |
|
| 28 | 01550-0620A | BOLT | 2 шт. | — | |
|
| 29 | 01550-0630A | BOLT | 2 шт. | — | |
|
| 30 | 07130-0625B | BOLT | 4 шт. | — | |
|
