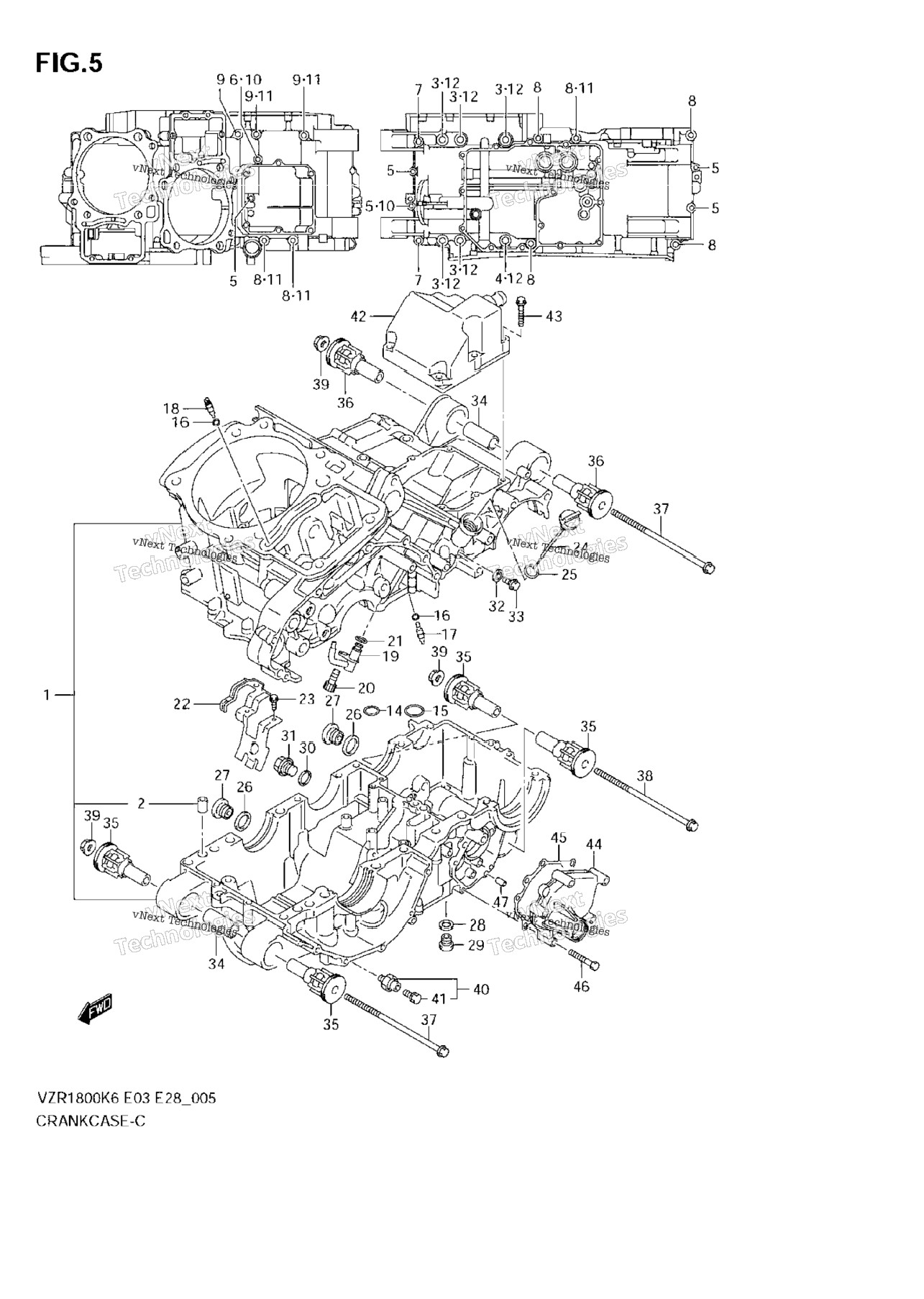

| 1 | 11300-48861 | CRANKCASE SET MODEL K6/K7 | 1 шт. | — | |
|
| 1 | 11300-48862 | CRANKCASE SET MODEL K8/K9; Includes Item(s) 2 - 13 | 1 шт. | — | |
|
| 2 | 11319-33E50 | PIN, CRANKCASE | 3 шт. | — | |
|
| 3 | 09103-10408 | BOLT (10X100) | 0 шт. | — | |
|
| 4 | 09103-10406 | BOLT (10X115) | 0 шт. | — | |
|
| 5 | 01547-0645B | BOLT | 5 шт. | — | |
|
| 6 | 01547-0670B | BOLT | 1 шт. | — | |
|
| 7 | 07130-0850B | BOLT | 0 шт. | — | |
|
| 8 | 07130-0865B | BOLT | 7 шт. | — | |
|
| 9 | 07130-0885B | BOLT | 0 шт. | — | |
|
| 11 | 09168-08016 | GASKET | 5 шт. | — | |
|
| 12 | 09168-10031 | GASKET (10.2X20X2.3) | 6 шт. | — | |
|
| 13 | 12228-48G00-0B0 | WASHER, CRANK THRUST (BLACK) | 1 шт. | — | |
|
| 13 | 12228-48G00-0C0 | WASHER, CRANK THRUST (BLUE) | 1 шт. | — | |
|
| 13 | 12228-48G00-0D0 | WASHER, CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 13 | 12228-48G00-0A0 | WASHER, CRANK THRUST (RED) SEE ILLUS ON FIG.8(B-10) | 1 шт. | — | |
|
| 13 | 12228-48G00-0F0 | WASHER, CRANK THRUST (WHITE) | 0 шт. | — | |
|
| 13 | 12228-48G00-0E0 | WASHER, CRANK THRUST (YELLOW) | 1 шт. | — | |
|
| 14 | 09280-08012 | O RING, CRANKCASE (ID:7.8) | 5 шт. | — | |
|
| 15 | 09280-12009 | O RING, CRANKCASE (ID:12.6) | 2 шт. | — | |
|
| 16 | 09280-04004 | O RING (D:1.2,ID:4) | 4 шт. | — | |
|
| 18 | 09493-80005 | JET (#80) | 2 шт. | — | |
|
| 18 | 09493-80005 | JET (#80) | 2 шт. | — | |
|
| 19 | 11390-48G00 | JET, PISTON COOLING | 2 шт. | — | |
|
| 20 | 09106-06075-A05 | BOLT (6X12) | 2 шт. | — | |
|
| 21 | 09280-05007 | O-RING (D:1.2,ID:4.7) | 2 шт. | — | |
|
| 22 | 11521-48G00 | PLATE, OIL SEPARATOR | 1 шт. | — | |
|
| 24 | 11971-48G01 | GAUGE, OIL LEVEL | 1 шт. | — | |
|
| 25 | 09280-17003 | O-RING (D:3.1,ID:16.8) | 1 шт. | — | |
|
| 26 | 09168-16002 | GASKET | 2 шт. | — | |
|
| 27 | 09248-16012-A05 | PLUG, OIL GALLERY | 2 шт. | — | |
|
| 28 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 29 | 09248-14012 | PLUG, OIL GALLERY | 1 шт. | — | |
|
| 30 | 09168-12002 | GASKET | 1 шт. | — | |
|
| 31 | 09247-12006-A05 | PLUG, OIL GALLERY | 1 шт. | — | |
|
| 32 | 09168-06023 | GASKET | 2 шт. | — | |
|
| 32 | 09168-06023 | GASKET | 3 шт. | — | |
|
| 33 | 01547-0612A | BOLT | 4 шт. | — | |
|
| 33 | 01547-0612A | PLUG, OIL GALLERY | 3 шт. | — | |
|
| 34 | 11611-48G00 | SPACER | 0 шт. | — | |
|
| 35 | 11652-10G00 | BUSH | 4 шт. | — | |
|
| 36 | 11652-10G30 | BUSH | 2 шт. | — | |
|
| 37 | 09103-10041-A05 | BOLT (10X215) | 2 шт. | — | |
|
| 38 | 09103-10118-A05 | BOLT (10X195) | 1 шт. | — | |
|
| 39 | 08319-3110A | NUT | 3 шт. | — | |
|
| 40 | 37820-33D10 | SWITCH ASSY, OIL PRESSURE Includes Item(s) 41 | 1 шт. | — | |
|
| 41 | 37822-33D00 | .BOLT,OIL PRESSURE SWITCH | 1 шт. | — | |
|
| 42 | 11330-48G00 | COVER, BREATHER | 0 шт. | — | |
|
| 43 | 01547-0630A | BOLT | 6 шт. | — | |
|
| 44 | 11371-48G00 | COVER, GEAR SHIFT | 1 шт. | — | |
|
| 45 | 11485-48G00 | GASKET | 1 шт. | — | |
|
| 46 | 01547-0645A | BOLT | 5 шт. | — | |
|
| 47 | 04211-09149 | PIN | 2 шт. | — | |
|
