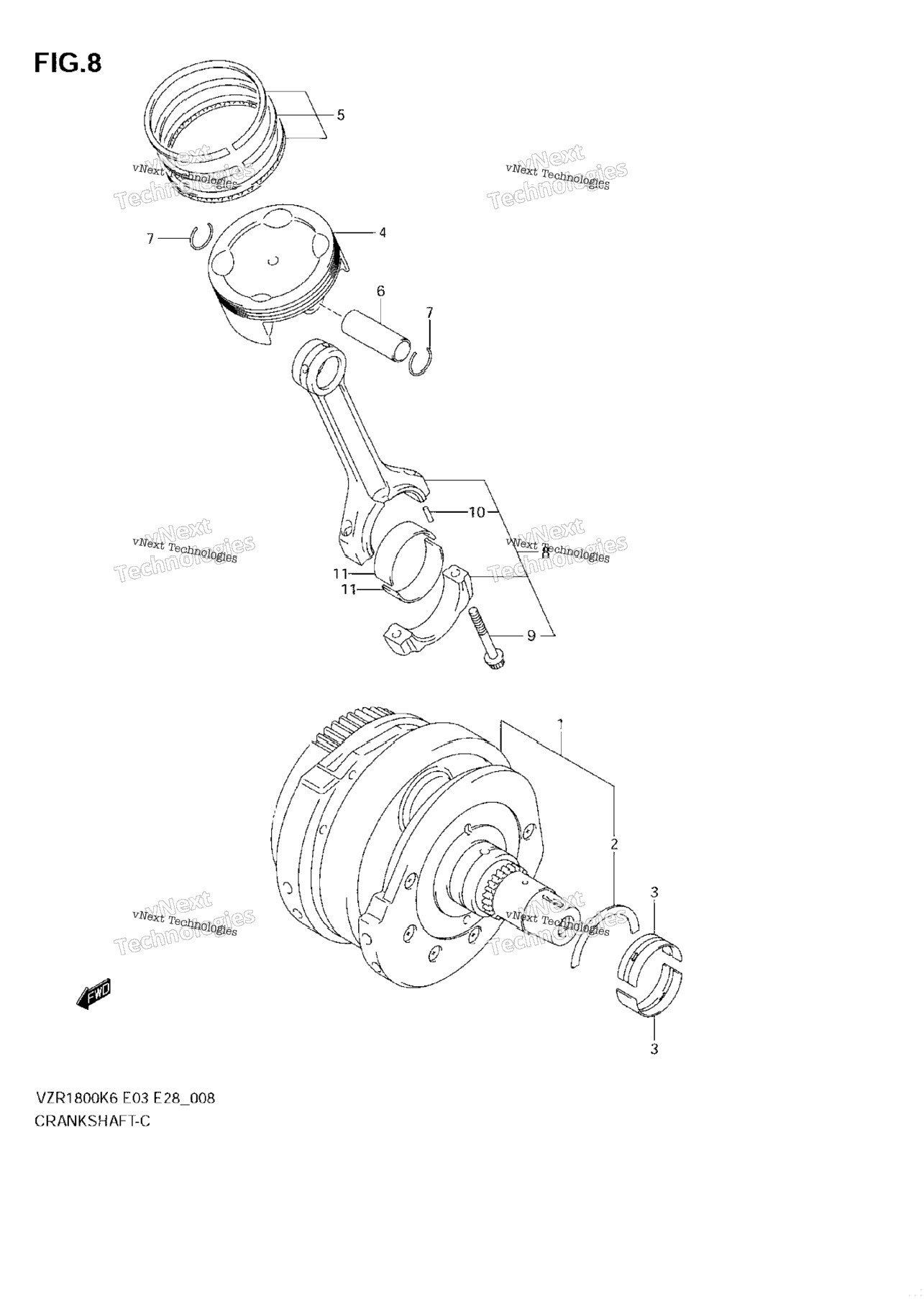

| 1 | 12000-48831 | CRANKSHAFT SET Includes Item(s) 2 - 2 | 1 шт. | — | |
|
| 2 | 12228-48G00-0B0 | WASHER, CRANK THRUST (BLACK) | 1 шт. | — | |
|
| 2 | 12228-48G00-0C0 | WASHER, CRANK THRUST (BLUE) | 1 шт. | — | |
|
| 2 | 12228-48G00-0D0 | WASHER, CRANK THRUST (GREEN) | 1 шт. | — | |
|
| 2 | 12228-48G00-0A0 | WASHER, CRANK THRUST (RED) | 1 шт. | — | |
|
| 2 | 12228-48G00-0F0 | WASHER, CRANK THRUST (WHITE) | 0 шт. | — | |
|
| 2 | 12228-48G00-0E0 | WASHER, CRANK THRUST (YELLOW) | 1 шт. | — | |
|
| 3 | 12229-48G00-0B0 | BEARING, CRANKSHAFT (BLACK) | 4 шт. | — | |
|
| 3 | 12229-48G00-0E0 | BEARING, CRANKSHAFT (BLUE) | 4 шт. | — | |
|
| 3 | 12229-48G00-0C0 | BEARING, CRANKSHAFT (BROWN) | 4 шт. | — | |
|
| 3 | 12229-48G00-0A0 | BEARING, CRANKSHAFT (GREEN) | 4 шт. | — | |
|
| 3 | 12229-48G00-0D0 | BEARING, CRANKSHAFT (YELLOW) | 4 шт. | — | |
|
| 4 | 12111-48G00-0F0 | PISTON | 2 шт. | — | |
|
| 5 | 12140-48G00 | RING SET, PISTON | 2 шт. | — | |
|
| 6 | 12151-48G00 | PIN, PISTON | 2 шт. | — | |
|
| 7 | 09381-23003 | CIRCLIP | 4 шт. | — | |
|
| 8 | 12160-48G00 | ROD ASSY, CONNECTING Includes Item(s) 9 - 10 | 2 шт. | — | |
|
| 9 | 12163-06G00 | BOLT | 4 шт. | — | |
|
| 10 | 04221-04089 | .PIN | 4 шт. | — | |
|
| 11 | 12164-48G00-0B0 | BEARING, CRANK PIN (BLACK) | 4 шт. | — | |
|
| 11 | 12164-48G00-0C0 | BEARING, CRANK PIN (BROWN) | 4 шт. | — | |
|
| 11 | 12164-48G00-0A0 | BEARING, CRANK PIN (GREEN) | 4 шт. | — | |
|
| 11 | 12164-48G00-0D0 | BEARING, CRANK PIN (YELLOW) | 4 шт. | — | |
|
