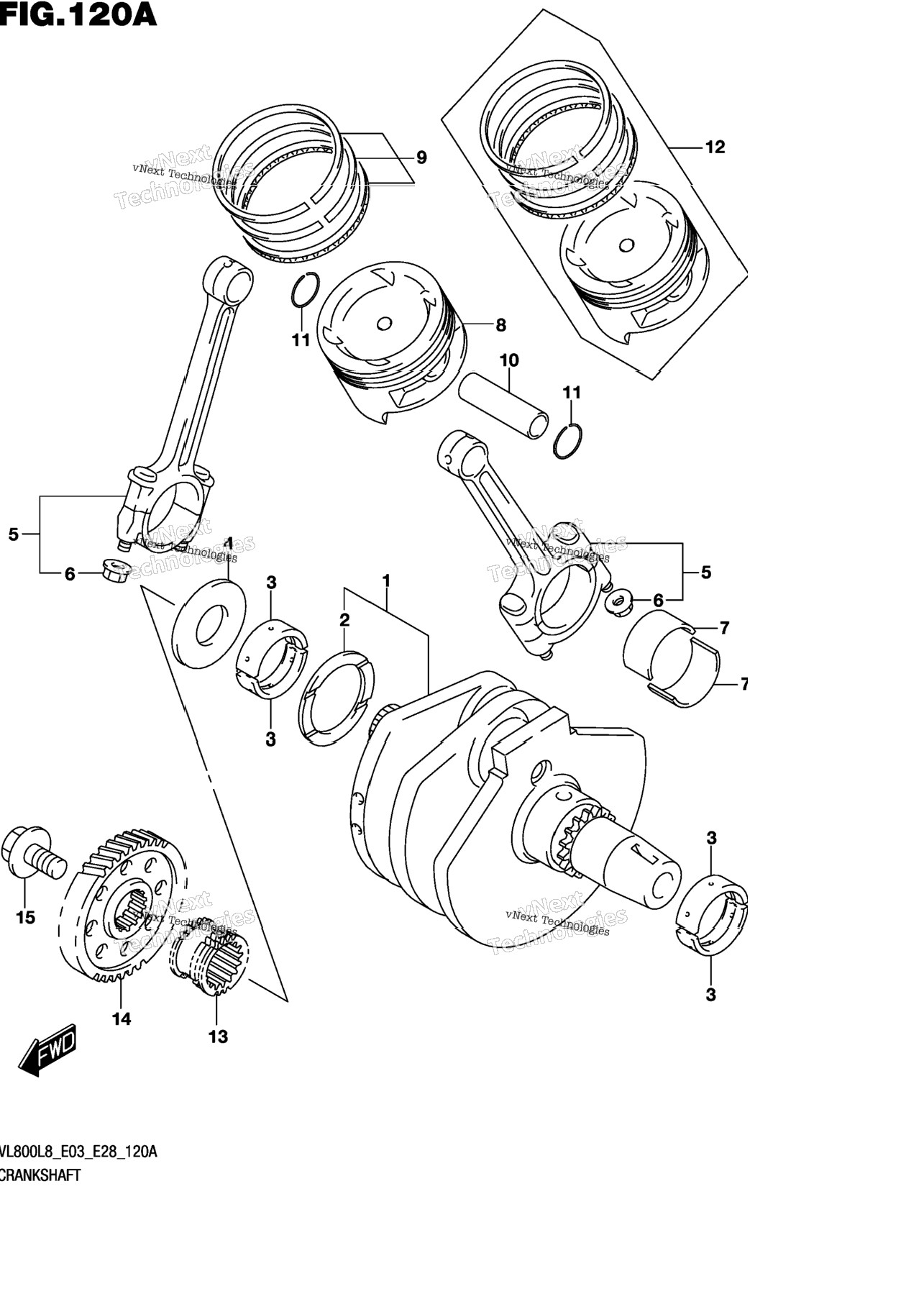

| 1 | 12000-41830 | CRANKSHAFT SET | 1 шт. | — | |
|
| 2-1 | 09160-48001 | .WASHER (1X64X1.94) | 1 шт. | — | |
|
| 2-10 | 09160-48010 | .WASHER (1X64X2.16) | 1 шт. | — | |
|
| 2-2 | 09160-48002 | .WASHER (1X64X1.96) | 0 шт. | — | |
|
| 2-3 | 09160-48003 | .WASHER (1X64X1.99) | 0 шт. | — | |
|
| 2-4 | 09160-48004 | .WASHER (1X64X2.01) | 0 шт. | — | |
|
| 2-5 | 09160-48005 | .WASHER (1X64X2.04) | 0 шт. | — | |
|
| 2-6 | 09160-48006 | .WASHER (1X64X2.06) | 1 шт. | — | |
|
| 2-7 | 09160-48007 | .WASHER (1X64X2.09) | 0 шт. | — | |
|
| 2-8 | 09160-48008 | .WASHER (1X64X2.11) | 0 шт. | — | |
|
| 2-9 | 09160-48009 | .WASHER (1X64X2.14) | 0 шт. | — | |
|
| 3-1 | 12229-39G00-0A0 | BEARING,CRANKSHAFT | 4 шт. | — | |
|
| 3-2 | 12229-39G00-0B0 | BEARING,CRANKSHAFT | 4 шт. | — | |
|
| 3-3 | 12229-39G00-0C0 | BEARING,CRANKSHAFT | 4 шт. | — | |
|
| 4 | 12652-38A00 | WASHER,CRANK THRUST | 1 шт. | — | |
|
| 5 | 12160-45C30 | CONNROD ASSY | 2 шт. | — | |
|
| 6 | 09159-09001 | .NUT | 4 шт. | — | |
|
| 7-1 | 12164-38E00-0A0 | BEARING,CRANK PIN | 4 шт. | — | |
|
| 7-2 | 12164-38E00-0B0 | BEARING,CRANK PIN | 4 шт. | — | |
|
| 7-3 | 12164-38E00-0C0 | BEARING,CRANK PIN | 4 шт. | — | |
|
| 7-4 | 12164-38E00-0D0 | BEARING,CRANK PIN | 4 шт. | — | |
|
| 7-5 | 12164-38E00-0E0 | BEARING,CRANK PIN | 4 шт. | — | |
|
| 8 | 12111-41F10-0F0 | PISTON | 2 шт. | — | |
|
| 9 | 12140-41F00 | RING SET PISTON | 2 шт. | — | |
|
| 10 | 12151-24A00 | PIN,PISTON | 2 шт. | — | |
|
| 11 | 09381-20004 | CIRCLIP | 4 шт. | — | |
|
| 12 | 12100-41F10-050 | PISTON SET (OS:0.5) OPT | 2 шт. | — | |
|
| 13 | 12731-38A00 | SPROCKET,CAM CHAIN DRIVE,R (N | 0 шт. | — | |
|
| 13 | 12731-38A00 | SPROCKET,CAM CHAIN DRIVE,R (N | 1 шт. | — | |
|
| 14 | 21111-38A00 | GEAR,PRIMARY DRIVE (NT:42) | 1 шт. | — | |
|
| 15 | 09103-12013 | BOLT (12X28) | 1 шт. | — | |
|
