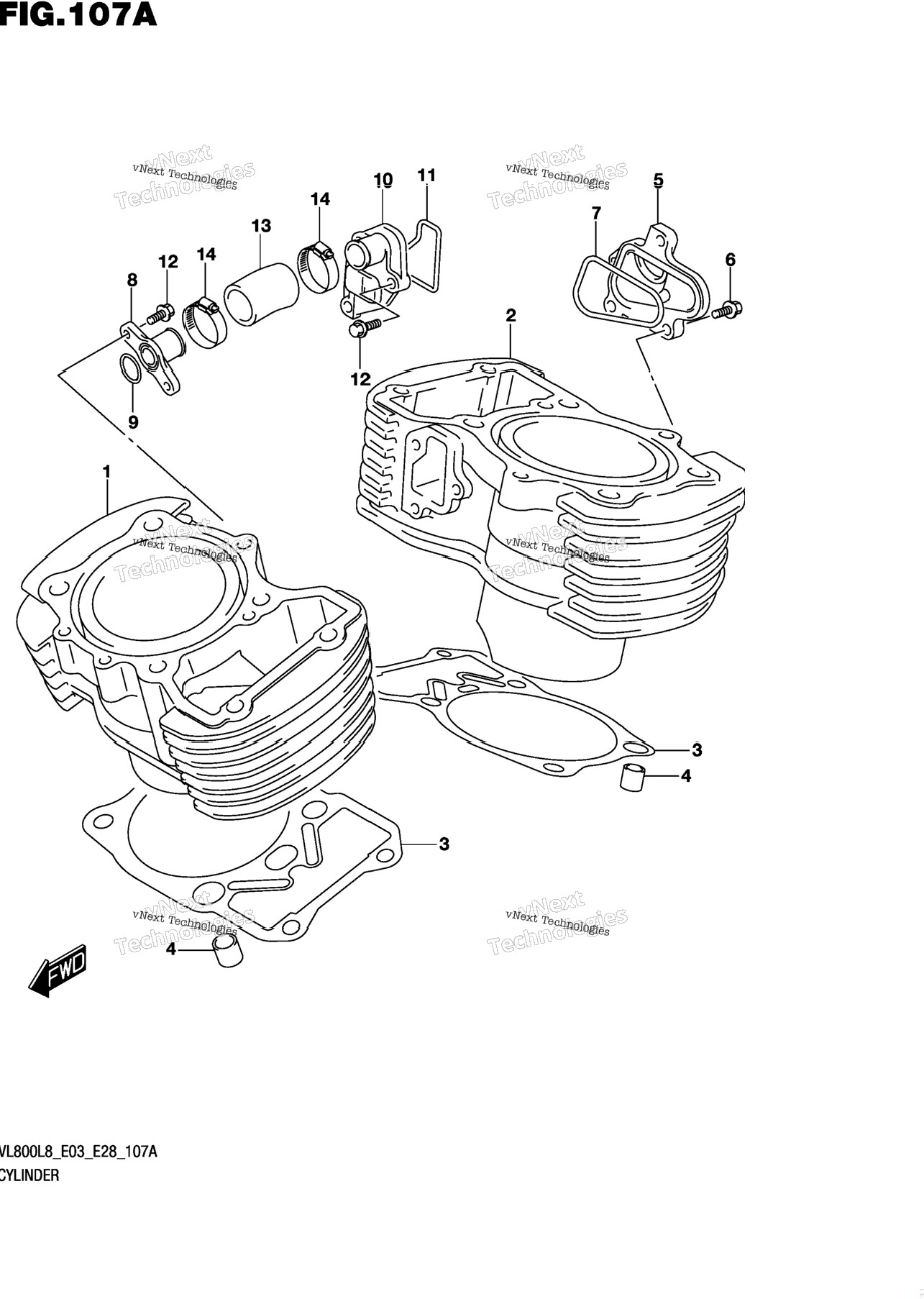

| 1 | 11210-39G00-0F0 | CYLINDER,FRONT | 1 шт. | — | |
|
| 2 | 11220-39G00-0F0 | CYLINDER,REAR | 1 шт. | — | |
|
| 3 | 11241-39G00 | .GASKET,CYLINDER | 2 шт. | — | |
|
| 4 | 04211-13189 | PIN (10.4X13X18) | 4 шт. | — | |
|
| 5 | 11237-41F00 | CONNECTOR,CYL INLET PIPE | 1 шт. | — | |
|
| 6 | 01547-0620A | BOLT | 3 шт. | — | |
|
| 7 | 11247-38A00 | O-RING,INLET WATER CHAMBER | 1 шт. | — | |
|
| 8 | 11235-41F00 | UNION,CYL INLET | 1 шт. | — | |
|
| 9 | 09280-16005 | O-RING (D:2.4,ID:15.8) | 1 шт. | — | |
|
| 10 | 17892-41F00 | UNION,CYL OUTLET | 1 шт. | — | |
|
| 11 | 17899-41F00 | O-RING,CYL OUTLET UNION | 1 шт. | — | |
|
| 12 | 01547-0616A | BOLT | 5 шт. | — | |
|
| 13 | 17853-38A10 | HOSE,CYL JOINT | 1 шт. | — | |
|
| 14 | 09402-28513 | CLAMP | 2 шт. | — | |
|
