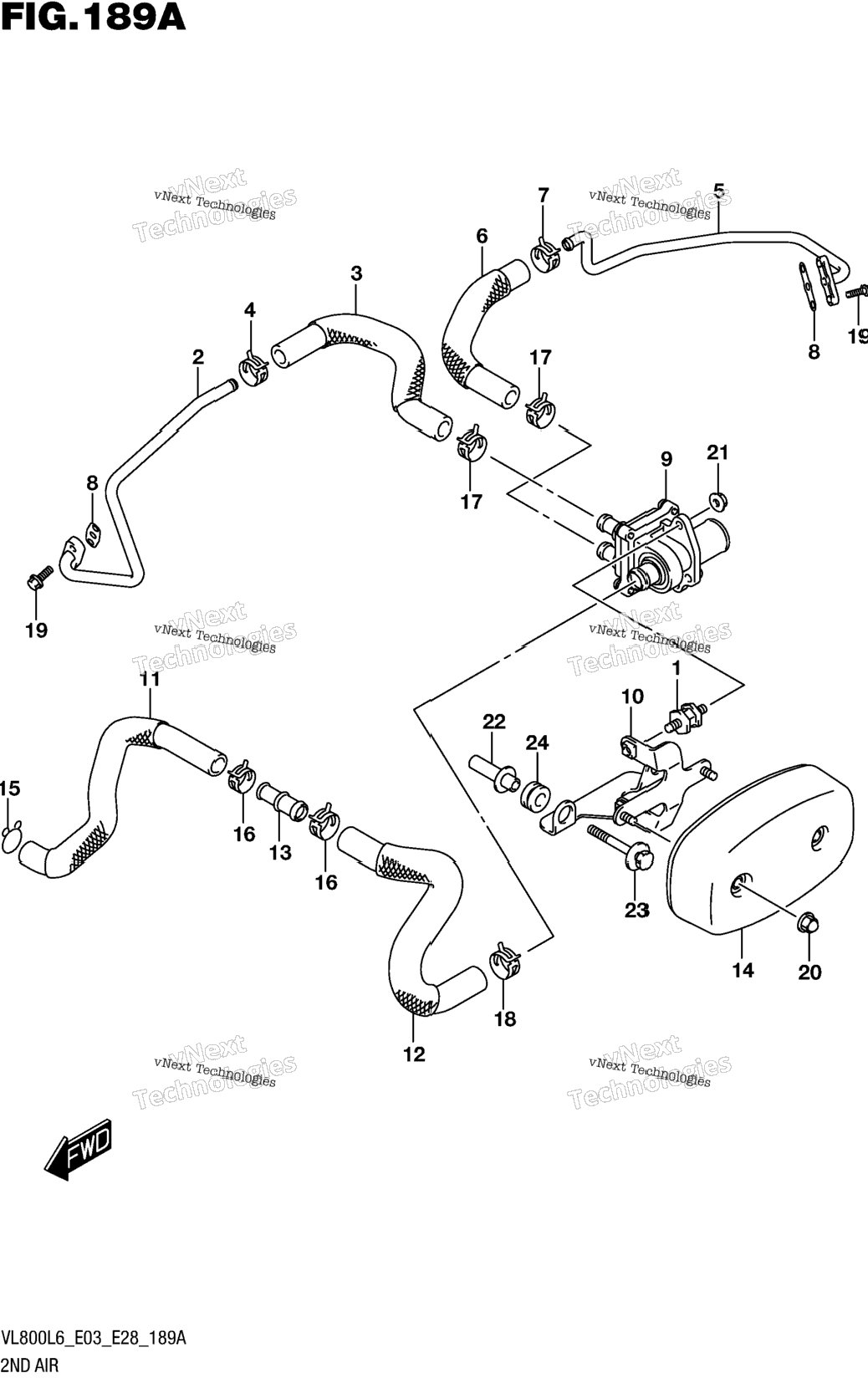

| 1 | 18487-39G00 | BOLT, 2ND AIR VALVE CUSHION | 2 шт. | — | |
|
| 2 | 18410-41F30 | PIPE, 2ND AIR FR | 0 шт. | — | |
|
| 3 | 18461-39G00 | HOSE, 2ND AIR VALVE FR | 0 шт. | — | |
|
| 4 | 09401-15407 | CLIP (ID:14.8) | 1 шт. | — | |
|
| 5 | 18420-41F30 | PIPE, 2ND AIR RR | 0 шт. | — | |
|
| 6 | 18471-39G00 | HOSE, 2ND AIR VALVE RR | 0 шт. | — | |
|
| 7 | 09401-15407 | CLIP (ID:14.8) | 1 шт. | — | |
|
| 8 | 18441-45C01 | GASKET 2ND AIR PIPE | 2 шт. | — | |
|
| 9 | 18450-39G01 | VALVE ASSY, 2ND AIR | 1 шт. | — | |
|
| 10 | 18610-39G00 | BRACKET, 2ND AIR S | 1 шт. | — | |
|
| 11 | 18711-39G00 | HOSE, 2ND AIR CLNR | 0 шт. | — | |
|
| 12 | 18712-39G00 | HOSE, 2ND AIR CLNR | 1 шт. | — | |
|
| 13 | 18713-39G00 | JOINT | 0 шт. | — | |
|
| 14 | 18780-41F20 | COVER, 2ND AIR VALVE | 1 шт. | — | |
|
| 15 | 09401-15101 | CLIP | 1 шт. | — | |
|
| 16 | 09401-16407 | CLIP (ID:16.5) | 2 шт. | — | |
|
| 17 | 09401-18406 | CLIP | 0 шт. | — | |
|
| 18 | 09401-20405 | CLIP | 1 шт. | — | |
|
| 19 | 01547-0616A | BOLT | 4 шт. | — | |
|
| 20 | 08313-2006A | NUT | 2 шт. | — | |
|
| 21 | 08316-1006B | NUT | 2 шт. | — | |
|
| 22 | 18620-41F00 | SPACER, 2ND AIR BRACKET | 0 шт. | — | |
|
| 23 | 09116-06183 | BOLT (6X55) | 0 шт. | — | |
|
| 24 | 09320-10015 | CUSHION | 2 шт. | — | |
|
