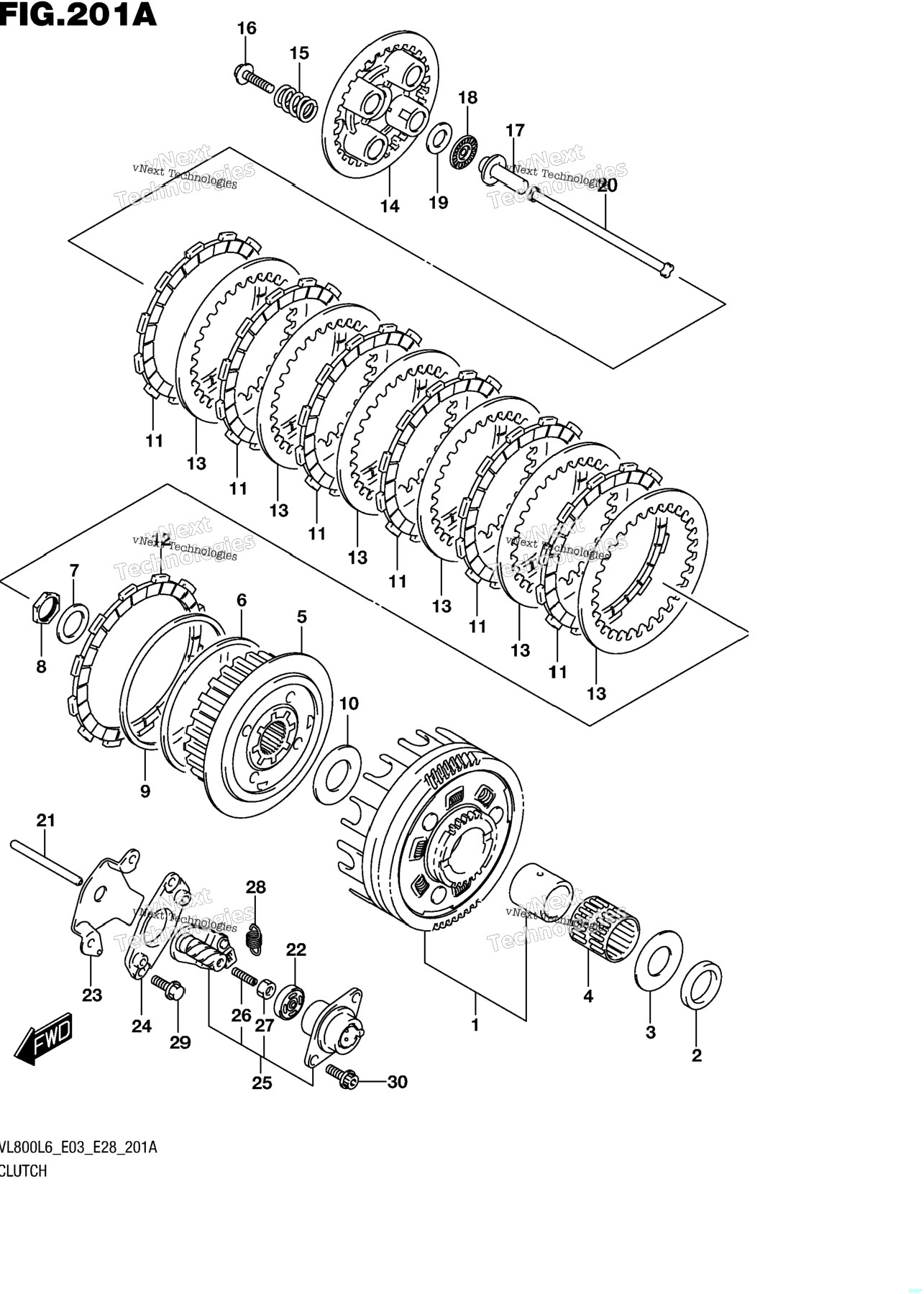

| 1 | 21200-38840 | GEAR, PRIMARY DRIVEN (NT:71) | 1 шт. | — | |
|
| 2 | 09180-25077 | SPACER (25X38X6.5) | 1 шт. | — | |
|
| 4 | 09263-35017 | BEARING (35X40X35.8) | 1 шт. | — | |
|
| 5 | 21410-41F00 | HUB, SLEEVE | 1 шт. | — | |
|
| 6 | 21471-37400 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 7 | 09164-22007 | WASHER | 1 шт. | — | |
|
| 8 | 09140-22008 | NUT | 1 шт. | — | |
|
| 9 | 09164-00004 | WASHER | 1 шт. | — | |
|
| 10 | 09160-25055 | WASHER (25X50X2.5) | 1 шт. | — | |
|
| 10 | 09160-25055 | WASHER (25X50X2.5) | 1 шт. | — | |
|
| 11 | 21441-37400 | PLATE, DRIVE NO.1 (T:3.0) | 6 шт. | — | |
|
| 12 | 21442-37401 | PLATE, CLUTCH DRIVE NO.2 | 1 шт. | — | |
|
| 12 | 21442-37401 | (T:3.5) | 0 шт. | — | |
|
| 13 | 21451-14A00 | PLATE, DRIVEN (T:1.6) | 6 шт. | — | |
|
| 14 | 21462-27A00 | DISC, PRESSURE | 1 шт. | — | |
|
| 15 | 21413-41F00 | SPRING, CLUTCH | 4 шт. | — | |
|
| 16 | 09116-06203 | BOLT (6X30) | 4 шт. | — | |
|
| 17 | 23121-31E00 | PIECE, PUSH | 1 шт. | — | |
|
| 18 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 19 | 09160-15045 | WASHER (15.5X28X1) | 1 шт. | — | |
|
| 20 | 23110-27A00 | ROD, PUSH RH | 1 шт. | — | |
|
| 21 | 23111-45C00 | ROD, PUSH LH | 1 шт. | — | |
|
| 22 | 09283-06010 | OIL SEAL (6X34X10.5) | 1 шт. | — | |
|
| 23 | 23117-45C00 | RETAINER,CL PUSH ROD OIL SEAL | 0 шт. | — | |
|
| 24 | 23130-45C00 | BRACKET, RELEASE SCREW | 1 шт. | — | |
|
| 25 | 23200-41F00 | SCREW ASSY, CLUTCH RELEASE | 1 шт. | — | |
|
| 26 | 09134-06010 | .SCREW (6X25) | 1 шт. | — | |
|
| 27 | 08310-00067 | .NUT | 1 шт. | — | |
|
| 28 | 09443-09050 | SPRING | 1 шт. | — | |
|
| 29 | 07120-0620A | BOLT | 2 шт. | — | |
|
| 30 | 07120-0616A | BOLT | 2 шт. | — | |
|
