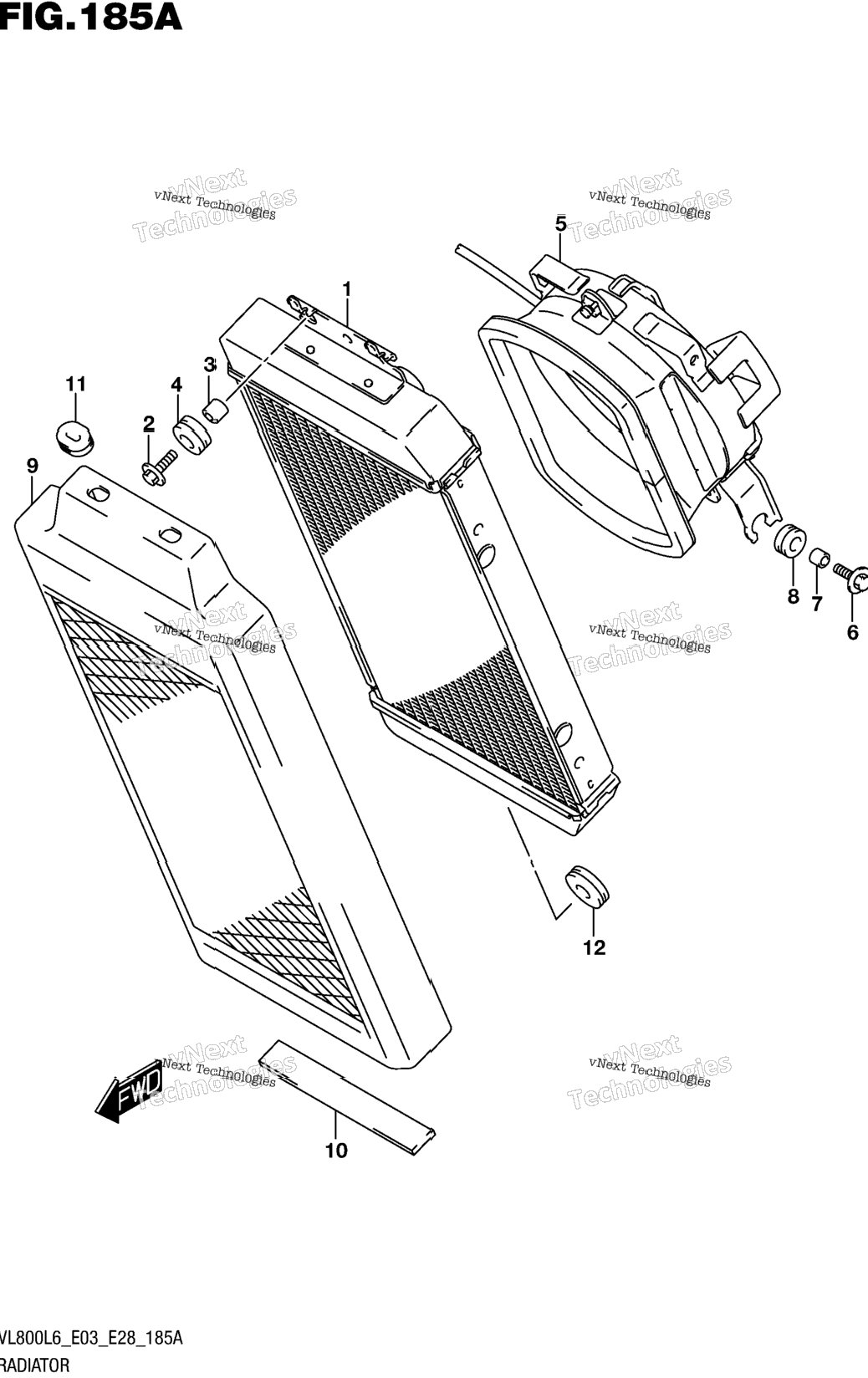

| 1 | 17710-41F20 | RADIATOR ASSY, WATER | 1 шт. | — | |
|
| 2 | 09116-06201 | BOLT (6X20) | 3 шт. | — | |
|
| 3 | 09180-06310 | SPACER (6.5X10X10) | 3 шт. | — | |
|
| 4 | 09320-10501 | CUSHION | 3 шт. | — | |
|
| 5 | 17800-41F20 | FAN ASSY, RADIATOR | 1 шт. | — | |
|
| 6 | 09116-06201 | BOLT (6X20) | 3 шт. | — | |
|
| 7 | 09180-06310 | SPACER (6.5X10X10) | 3 шт. | — | |
|
| 8 | 09320-10055 | CUSHION | 3 шт. | — | |
|
| 9 | 17760-41F00 | COVER, RADIATOR | 1 шт. | — | |
|
| 10 | 17798-39G00 | CUSHION, INNER CUT AS REQUIRED | 2 шт. | — | |
|
| 11 | 09320-03004 | CUSHION | 2 шт. | — | |
|
| 12 | 09320-08028 | CUSHION (8X26X7) | 1 шт. | — | |
|
