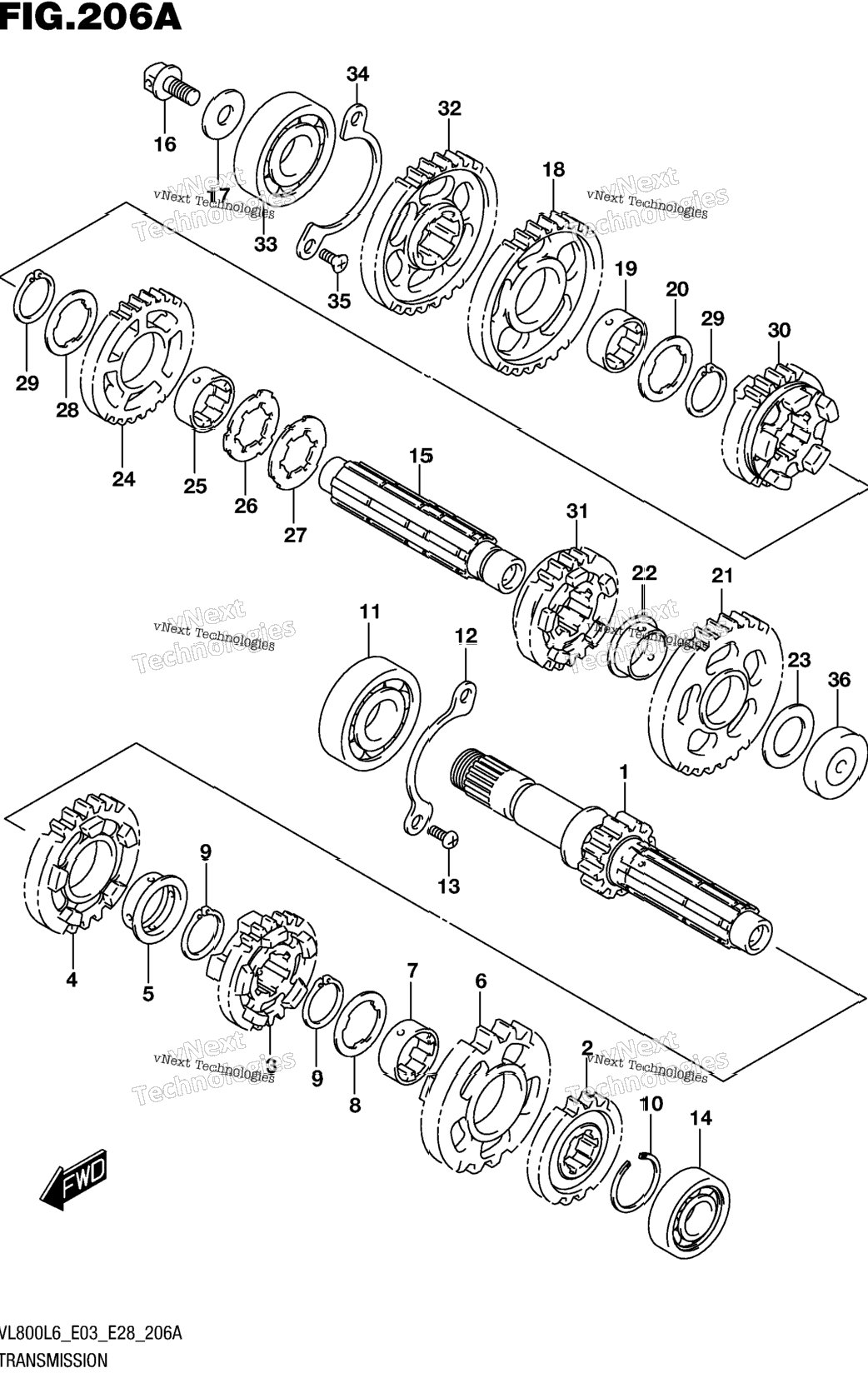

| 1 | 24120-41F00 | SHAFT, COUNTER (NT:13) | 1 шт. | — | |
|
| 2 | 24221-38A01 | GEAR, 2ND DRIVE (NT:19) | 1 шт. | — | |
|
| 3 | 24231-41F00 | GEAR, 3RD DRIVE (NT:22) | 0 шт. | — | |
|
| 4 | 24241-41F00 | GEAR, 4TH DRIVE (NT:25) | 1 шт. | — | |
|
| 5 | 24322-19F00 | BUSH, 4TH | 1 шт. | — | |
|
| 6 | 24251-41F00 | GEAR, 5TH DRIVE (NT:27) | 1 шт. | — | |
|
| 7 | 24252-38A10 | BUSH, 5TH | 1 шт. | — | |
|
| 8 | 09167-25016 | LOCK WASHER | 1 шт. | — | |
|
| 9 | 09380-25003 | SNAP RING | 2 шт. | — | |
|
| 10 | 09380-25014 | CIRCLIP | 0 шт. | — | |
|
| 11 | 09262-25080 | BEARING (25X62X17) RH | 1 шт. | — | |
|
| 12 | 24741-38A00 | RETAINER | 1 шт. | — | |
|
| 13 | 09125-06122 | SCREW (6X12) | 2 шт. | — | |
|
| 14 | 09262-20139 | BEARING (20X47X14) LH | 1 шт. | — | |
|
| 15 | 24131-38A03 | DRIVE SHAFT | 0 шт. | — | |
|
| 16 | 24135-38A02 | NOZZLE,DRIVE SHAFT | 1 шт. | — | |
|
| 17 | 08211-10305 | WASHER | 1 шт. | — | |
|
| 18 | 24311-41F00 | GEAR, 1ST DRIVEN (NT:32) | 1 шт. | — | |
|
| 19 | 24332-07A00 | BUSH | 0 шт. | — | |
|
| 20 | 09167-28001 | LOCK WASHER | 1 шт. | — | |
|
| 21 | 24321-41F00 | GEAR, 2ND DRIVEN (NT:31) | 1 шт. | — | |
|
| 22 | 09301-22002 | BUSH | 0 шт. | — | |
|
| 23 | 09181-20251 | SHIM (20X34X1) | 1 шт. | — | |
|
| 24 | 24331-41F00 | GEAR, 3RD DRIVEN (NT:27) | 1 шт. | — | |
|
| 25 | 24332-07A00 | BUSH | 0 шт. | — | |
|
| 26 | 09169-28001 | WASHER RH | 1 шт. | — | |
|
| 27 | 09167-28002 | LOCK WASHER LH | 1 шт. | — | |
|
| 28 | 09167-28001 | LOCK WASHER | 1 шт. | — | |
|
| 29 | 08331-31289 | CIRCLIP | 2 шт. | — | |
|
| 30 | 24341-41F00 | GEAR, 4TH DRIVEN (NT:25) | 1 шт. | — | |
|
| 31 | 24351-41F00 | GEAR, 5TH DRIVEN (NT:22) | 0 шт. | — | |
|
| 32 | 24621-38A00 | GEAR, REDUCTION DRIVE (NT:30) | 1 шт. | — | |
|
| 33 | 09262-20073 | BEARING (20X52X15) RH | 1 шт. | — | |
|
| 34 | 24751-38A00 | RETAINER | 0 шт. | — | |
|
| 35 | 09126-06011 | SCREW (6X12) | 2 шт. | — | |
|
| 36 | 09262-20080 | BEARING (20X52X15) LH | 1 шт. | — | |
|
