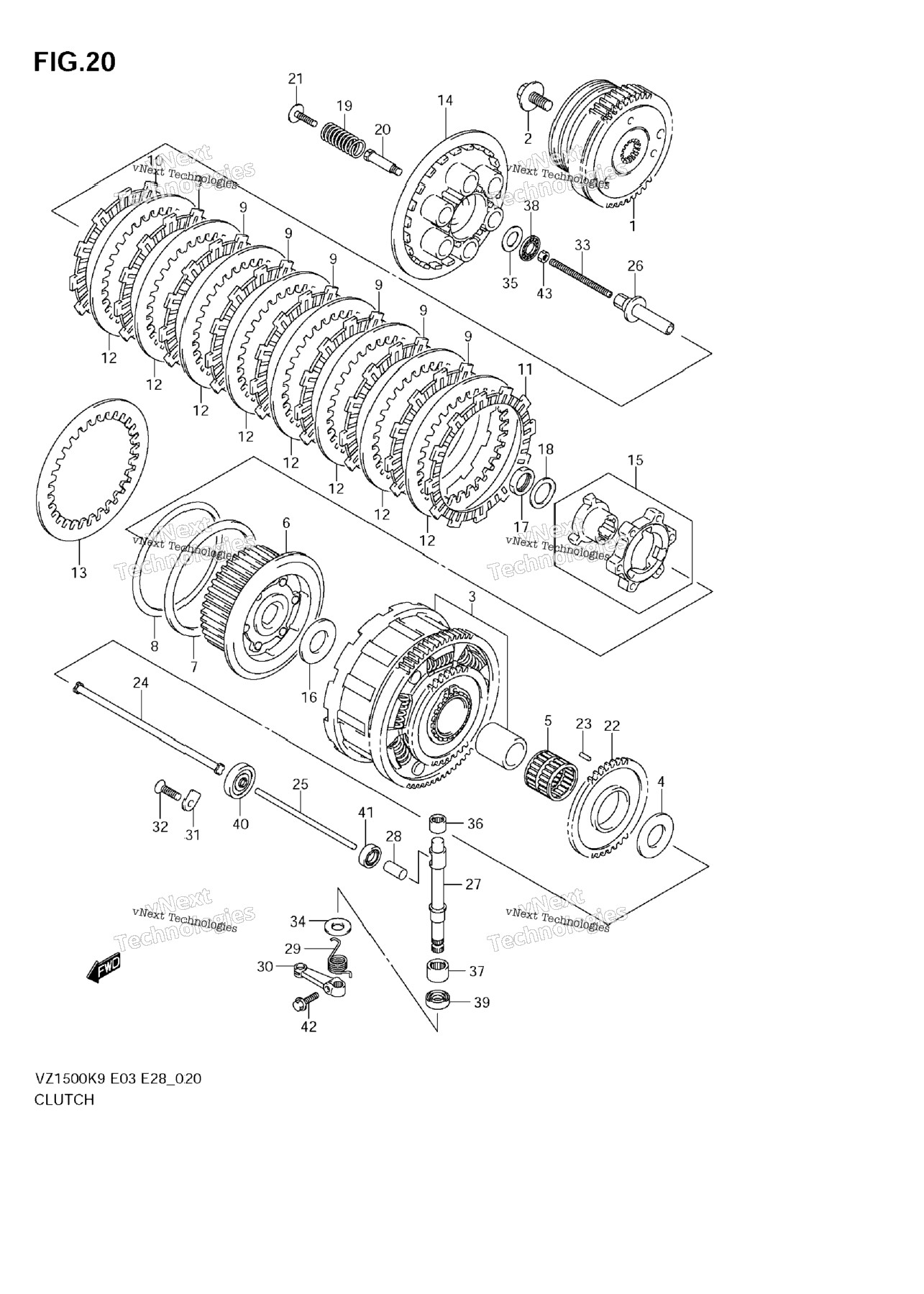

| 1 | 21100-40810 | GEAR, PRIMARY DRIVE SET | 1 шт. | — | |
|
| 2 | 09103-14010 | BOLT, PRI DRIVE (14X28) | 1 шт. | — | |
|
| 3 | 21200-40890 | GEAR, PRIMARY DRIVEN (NT:78) | 1 шт. | — | |
|
| 4 | 09160-25074 | WASHER, PRI (70X112X1.0) | 1 шт. | — | |
|
| 5 | 09263-35013 | BEARING (35X40X39.8) | 1 шт. | — | |
|
| 6 | 21410-40H00 | HUB, SLEEVE | 0 шт. | — | |
|
| 7 | 21471-24F00 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 8 | 21472-24F00 | WASHER, PLATE WAVE | 1 шт. | — | |
|
| 9 | 21441-24F40 | PLATE, CLUTCH DRIVE NO.1 | 7 шт. | — | |
|
| 10 | 21441-24F10 | PLATE, CLUTCH DRIVE NO.2 | 1 шт. | — | |
|
| 11 | 21442-24F00 | PLATE, CLUTCH DRIVE NO.3 | 1 шт. | — | |
|
| 12 | 21451-24F00 | PLATE,CLUTCH DRIVEN NO.1 (T:2 | 8 шт. | — | |
|
| 13 | 21451-24F10 | PLATE, CLUTCH DRIVEN, NO.2 | 1 шт. | — | |
|
| 14 | 21462-16G00 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 15 | 21610-02F20 | CAM SET, CLUTCH | 1 шт. | — | |
|
| 16 | 09160-25079 | WASHER, CLUTCH SLEEVE 25X50X3.5 | 0 шт. | — | |
|
| 17 | 09159-24010 | NUT, CLUTCH SLEEVE HUB | 1 шт. | — | |
|
| 18 | 09164-24008 | WASHER, CLUTCH SLEEVE | 1 шт. | — | |
|
| 19 | 21413-40H00 | SPRING, CLUTCH | 6 шт. | — | |
|
| 20 | 21481-24F30 | BOLT, CLUTCH SPRING SPRT | 6 шт. | — | |
|
| 21 | 21482-24F30 | BOLT, CLUTCH SPRING | 6 шт. | — | |
|
| 22 | 16321-40H00 | GEAR, OIL PUMP DRIVE (NT:55) | 0 шт. | — | |
|
| 23 | 09261-04009 | PIN | 1 шт. | — | |
|
| 24 | 23110-24F00 | ROD, CLUTCH | 1 шт. | — | |
|
| 25 | 23111-40H00 | ROD, CLUTCH PUSH, L | 0 шт. | — | |
|
| 26 | 23121-41G00 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 27 | 23122-40H00 | CAMSHAFT, CLUTCH RELEASE | 0 шт. | — | |
|
| 28 | 23123-41G00 | CAP, CLUTCH PUSH ROD | 1 шт. | — | |
|
| 29 | 23125-48G00 | SPRING, CLUTCH RELEASE RETURN | 1 шт. | — | |
|
| 30 | 23271-48G00 | ARM, CLUTCH RELEASE | 1 шт. | — | |
|
| 31 | 24741-20A00 | RETAINER | 1 шт. | — | |
|
| 32 | 09126-06011 | SCREW, CL PUSH 6X12 | 1 шт. | — | |
|
| 33 | 09134-06015 | SCREW, CLUTCH PUSH ROD | 1 шт. | — | |
|
| 34 | 09160-10020 | WASHER, CLUTCH RELEASE 10.5X24X1.0 | 1 шт. | — | |
|
| 35 | 09160-15045 | WASHER, CLUTCH PUSH PIECE 15.5X28X1.0 | 1 шт. | — | |
|
| 36 | 09263-10014 | BEARING, CL RLSE CAM LOWER 10X14X10 | 1 шт. | — | |
|
| 37 | 09263-12027 | BEARING, CL RLSE CAM UPPER 12X18X12 | 1 шт. | — | |
|
| 38 | 09263-15003 | BEARING, CLUTCH PUSH PIECE 15X28X2.0 | 1 шт. | — | |
|
| 39 | 09282-10012 | SEAL, CL RLSE CAMSHAFT OIL 10X20X6 | 1 шт. | — | |
|
| 40 | 09283-06005 | SEAL, CLUTCH PUSH ROD OIL 6X18X5 | 1 шт. | — | |
|
| 41 | 09285-10004 | SEAL, CLUTCH PUSH ROD CAP 10X17X5 | 1 шт. | — | |
|
| 42 | 01547-0620A | BOLT, CL RELEASE ARM | 1 шт. | — | |
|
| 43 | 08310-0006A | NUT, CLUTCH RELEASE ADJ | 1 шт. | — | |
|
