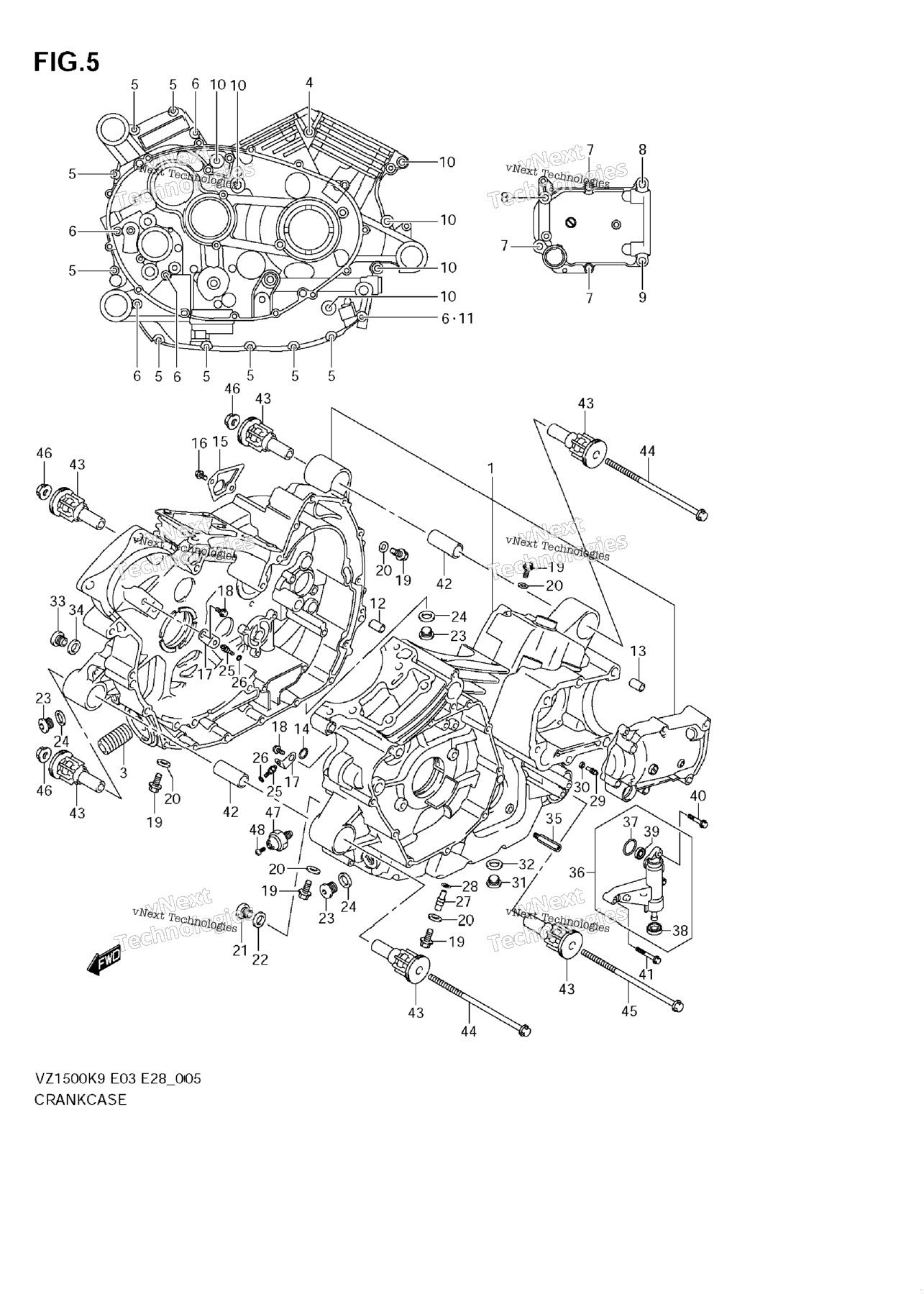

| 1 | 11301-40860 | CRANKCASE SET Includes Item(s) 2 - 13 | 1 шт. | — | |
|
| 2 | 12228-40H00-0A0 | BEARING, CRANK THRUST (T:1.925) SEE ILLUS ON FIG.7 | 0 шт. | — | |
|
| 2 | 12228-40H00-0B0 | BEARING, CRANK THRUST (T:1.950) | 0 шт. | — | |
|
| 2 | 12228-40H00-0C0 | BEARING, CRANK THRUST (T:1.975) | 0 шт. | — | |
|
| 2 | 12228-40H00-0D0 | BEARING, CRANK THRUST (T:2.000) | 0 шт. | — | |
|
| 2 | 12228-40H00-0E0 | BEARING, CRANK THRUST (T:2.025) | 0 шт. | — | |
|
| 2 | 12228-40H00-0F0 | BEARING, CRANK THRUST (T:2.050) | 0 шт. | — | |
|
| 3 | 16591-06B01 | UNION, OIL STAND | 1 шт. | — | |
|
| 4 | 09103-08122 | BOLT (8X110) | 1 шт. | — | |
|
| 5 | 01547-0645A | BOLT | 9 шт. | — | |
|
| 6 | 01547-0685A | BOLT | 0 шт. | — | |
|
| 7 | 01550-0845A | BOLT | 3 шт. | — | |
|
| 8 | 01550-0860A | BOLT | 2 шт. | — | |
|
| 9 | 01550-0870A | BOLT | 1 шт. | — | |
|
| 10 | 01550-0880A | BOLT | 7 шт. | — | |
|
| 11 | 09168-06023 | GASKET | 1 шт. | — | |
|
| 12 | 11319-33E50 | PIN | 2 шт. | — | |
|
| 13 | 09206-11007 | PIN | 2 шт. | — | |
|
| 14 | 09280-13007 | O RING, CRANKCASE | 1 шт. | — | |
|
| 15 | 11313-40H00 | PLATE, OIL SEPARATOR | 1 шт. | — | |
|
| 17 | 16439-38B00 | PLATE, PISTON JET REAR | 2 шт. | — | |
|
| 18 | 01547-0612A | BOLT | 2 шт. | — | |
|
| 18 | 01547-0612A | BOLT | 3 шт. | — | |
|
| 19 | 01550-0812A | PLUG, OIL GALLERY | 5 шт. | — | |
|
| 20 | 09168-08016 | GASKET | 5 шт. | — | |
|
| 21 | 09248-10010 | PLUG (10X10) | 1 шт. | — | |
|
| 22 | 09168-10002 | GASKET (10X14X3.6) | 1 шт. | — | |
|
| 23 | 09248-16012 | PLUG, OIL GALLERY | 3 шт. | — | |
|
| 24 | 09168-16002 | GASKET | 3 шт. | — | |
|
| 25 | 09493-80009 | JET, PISTON COOLING | 2 шт. | — | |
|
| 27 | 09493-24009 | JET, MISSION OIL | 1 шт. | — | |
|
| 29 | 09493-36004 | JET (18) | 1 шт. | — | |
|
| 30 | 09280-04004 | O RING (D:1.2,ID:4) | 1 шт. | — | |
|
| 30 | 09280-04004 | O RING (D:1.2,ID:4) | 2 шт. | — | |
|
| 30 | 09280-04004 | O RING (D:1.2,ID:4) | 1 шт. | — | |
|
| 31 | 09247-14036 | PLUG, OIL DRAIN | 1 шт. | — | |
|
| 33 | 09248-14012 | PLUG, OIL GALLERY | 1 шт. | — | |
|
| 34 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 34 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 35 | 11372-22H00 | BOLT | 1 шт. | — | |
|
| 36 | 23120-41810 | CAMSHAFT SET, CLUTCH RELEASE Includes Item(s) 37 - 39 | 1 шт. | — | |
|
| 37 | 09280-21008 | O RING | 1 шт. | — | |
|
| 38 | 09282-10012 | SEAL, OIL | 1 шт. | — | |
|
| 39 | 09285-10004 | SEAL, OIL | 1 шт. | — | |
|
| 40 | 01547-0620A | BOLT | 1 шт. | — | |
|
| 41 | 01547-0630A | BOLT | 2 шт. | — | |
|
| 42 | 11611-48G00 | SPACER, ENG MTG | 0 шт. | — | |
|
| 43 | 11652-40H00 | BUSH, ENG MTG | 6 шт. | — | |
|
| 44 | 09103-10041 | BOLT (10X215) | 2 шт. | — | |
|
| 45 | 09103-10118 | BOLT (10X195) | 1 шт. | — | |
|
| 46 | 08319-3110A | NUT | 3 шт. | — | |
|
| 47 | 37820-33D10 | SWITCH ASSY, OIL PRESSURE Includes Item(s) 48 | 1 шт. | — | |
|
| 48 | 37822-33D00 | .BOLT,OIL PRESSURE SWITCH | 1 шт. | — | |
|
