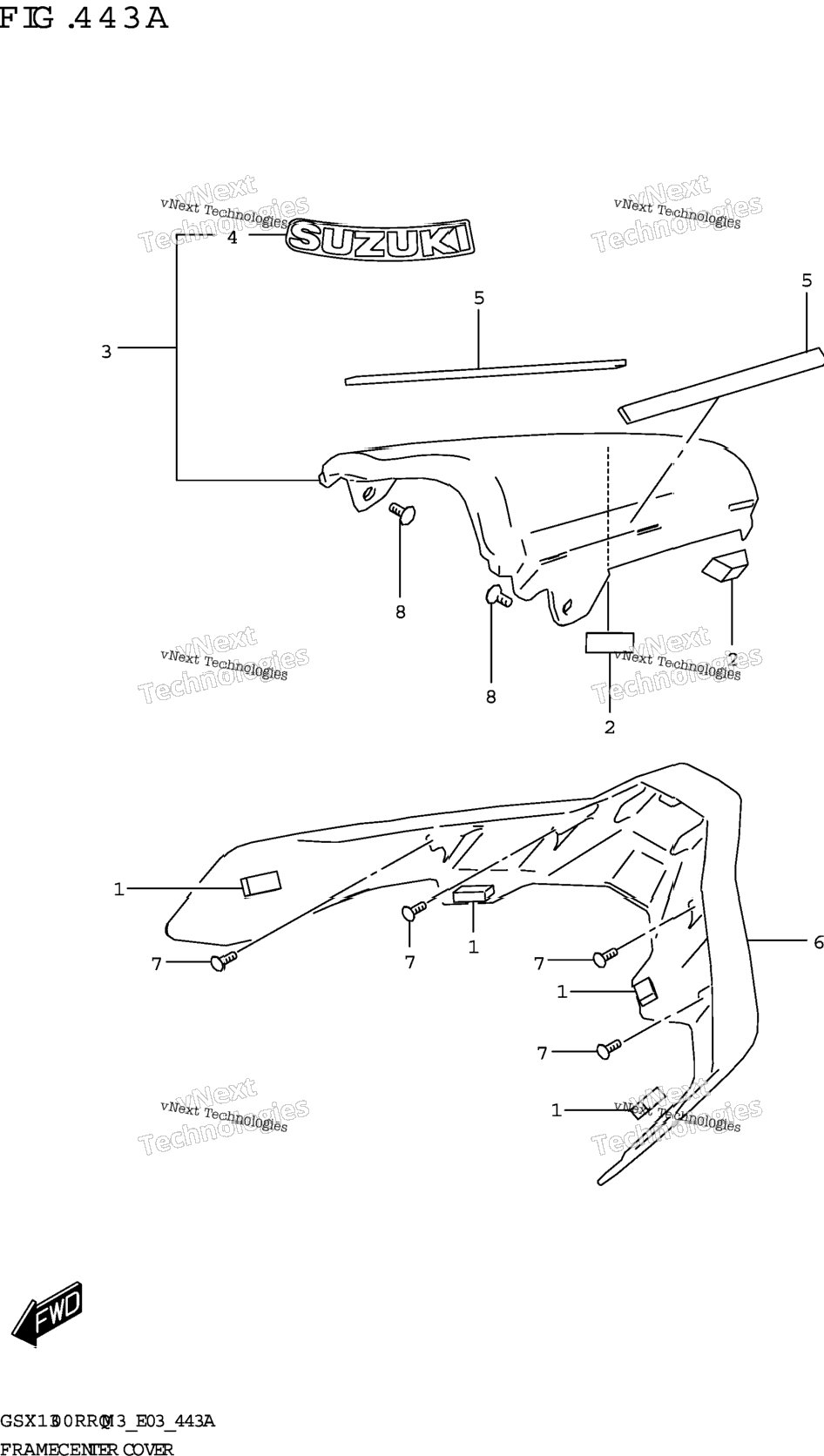

| 1 | 47113-10L00 | CUSHION,FRAME COVER UNDER | 4 шт. | — | |
|
| 2 | 47114-10L00 | CUSHION,FRAME COVER CTR | 2 шт. | — | |
|
| 3-1 | 47310-10L00-YUH | COVER,FRAME CTR (WHITE) BODY COLOR:JWN | 1 шт. | — | |
|
| 3-2 | 47310-10L00-YVB | COVER,FRAME CTR (BLACK) BODY COLOR:KGL | 1 шт. | — | |
|
| 3-3 | 47310-10L00-YLF | COVER,FRAME CTR (GRAY) BODY COLOR:CJH | 1 шт. | — | |
|
| 4-1 | 68641-19F01-PGZ | .EMBLEM,"SUZUKI" (GRAY) BODY COLOR:JWN | 1 шт. | — | |
|
| 4-2 | 68641-19F01-YLF | .EMBLEM,"SUZUKI" (GRAY) BODY COLOR:KGL | 1 шт. | — | |
|
| 4-3 | 68641-19F01-019 | .EMBLEM,"SUZUKI" (BLACK) BODY COLOR:CJH | 1 шт. | — | |
|
| 5 | 47324-10L00 | CUSHION,FRAME COVER CTR | 2 шт. | — | |
|
| 6-1 | 47511-10L00-YKY | COVER,FRAME UNDER (BLUE) BODY COLOR:JWN | 1 шт. | — | |
|
| 6-2 | 47511-10L00-YKV | COVER,FRAME UNDER (BLACK) BODY COLOR:KGL | 1 шт. | — | |
|
| 6-3 | 47511-10L00-YYG | COVER,FRAME UNDER (RED) BODY COLOR:CJH | 1 шт. | — | |
|
| 7 | 03541-0412A | SCREW | 4 шт. | — | |
|
| 8 | 03541-0512A | SCREW | 2 шт. | — | |
|
