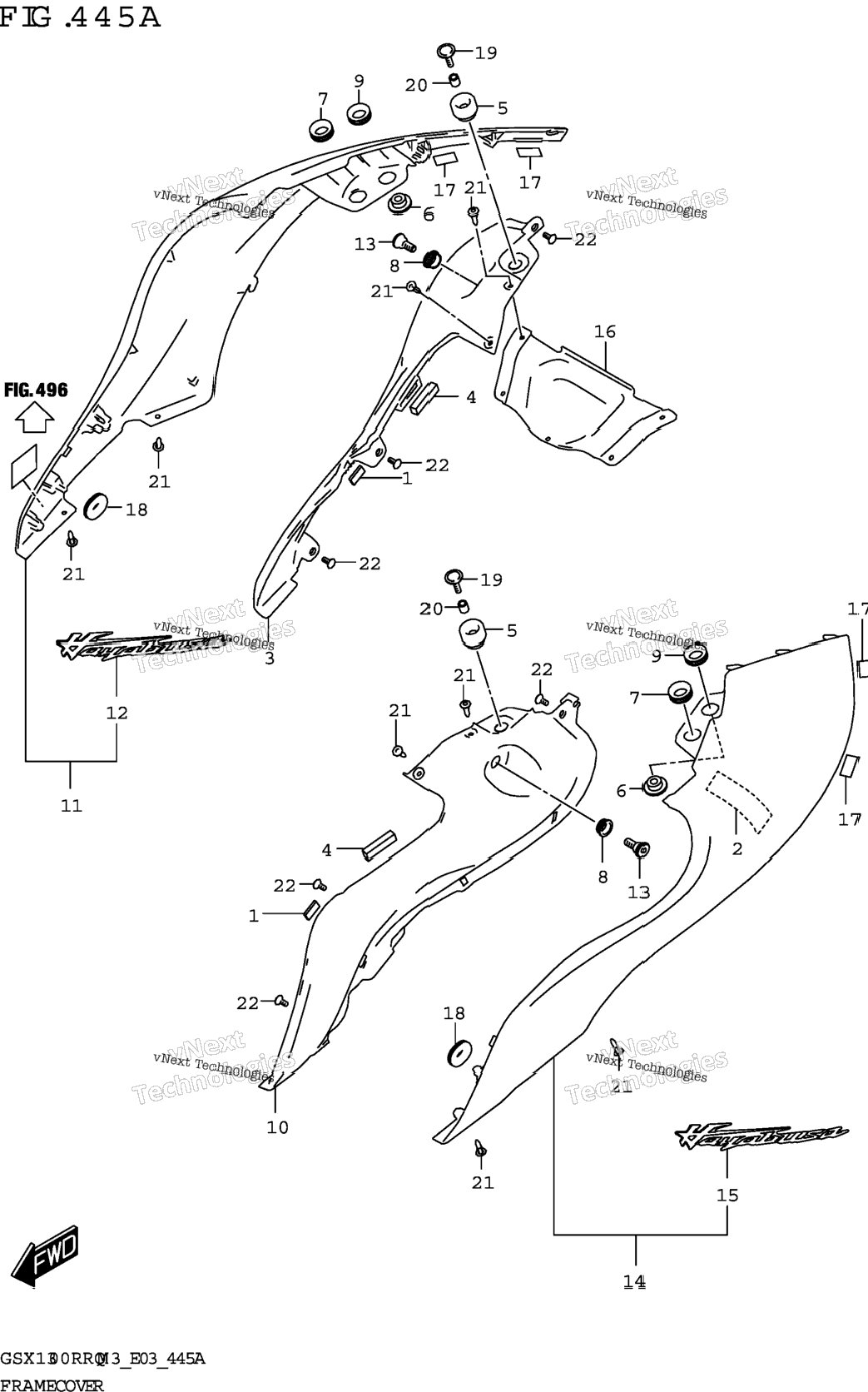

| 1 | 33652-22D00 | CUSHION (11X20X3) | 2 шт. | — | |
|
| 2 | 33652-34000 | PROTECTOR (30X80X2) | 1 шт. | — | |
|
| 3-1 | 47111-10L00-YKY | COVER,FRAME,R (BLUE) BODY COLOR:JWN | 1 шт. | — | |
|
| 3-2 | 47111-10L00-YKV | COVER,FRAME,R (BLACK) BODY COLOR:KGL | 1 шт. | — | |
|
| 3-3 | 47111-10L00-YYG | COVER,FRAME,R (RED) BODY COLOR:CJH | 1 шт. | — | |
|
| 4 | 47112-10L00 | CUSHION,FRAME COVER NO.2 | 2 шт. | — | |
|
| 5 | 47115-16G01 | CUSHION,FRAME COVER UP | 2 шт. | — | |
|
| 6 | 47190-24F21 | WASHER,FRAME COVER | 2 шт. | — | |
|
| 7 | 47191-24F00 | CUSHION (16X26X8) | 2 шт. | — | |
|
| 8 | 47191-24F20 | CUSHION,FRAME COVER CTR | 2 шт. | — | |
|
| 9 | 47191-24F30 | CUSHION,FRAME COVER UP RR RR | 2 шт. | — | |
|
| 10-1 | 47211-10L00-YKY | COVER,FRAME,L (BLUE) BODY COLOR:JWN | 1 шт. | — | |
|
| 10-2 | 47211-10L00-YKV | COVER,FRAME,L (BLACK) BODY COLOR:KGL | 1 шт. | — | |
|
| 10-3 | 47211-10L00-YYG | COVER,FRAME,L (RED) BODY COLOR:CJH | 1 шт. | — | |
|
| 11-1 | 47320-10L00-YUH | COVER,FRAME REAR,R (WHITE) BODY COLOR:JWN | 1 шт. | — | |
|
| 11-2 | 47320-10L00-YVB | COVER,FRAME REAR,R (BLACK) BODY COLOR:KGL | 1 шт. | — | |
|
| 11-3 | 47320-10L00-YLF | COVER,FRAME REAR,R (GRAY) BODY COLOR:CJH | 1 шт. | — | |
|
| 12-1 | 68131-10L00-B7C | .EMBLEM,FRAME COVER,R (GRAY,W ITE) BODY COLOR:JWN | 1 шт. | — | |
|
| 12-2 | 68131-10L00-AA3 | .EMBLEM,FRAME COVER,R (GRAY,B ACK) BODY COLOR:KGL | 1 шт. | — | |
|
| 12-3 | 68131-10L00-HGU | .EMBLEM,FRAME COVER,R (BLACK, RAY) BODY COLOR:CJH | 1 шт. | — | |
|
| 13 | 47323-10L00 | BOLT,FRAME COVER REAR | 2 шт. | — | |
|
| 14-1 | 47330-10L00-YUH | COVER,FRAME REAR,L (WHITE) BODY COLOR:JWN | 1 шт. | — | |
|
| 14-2 | 47330-10L00-YVB | COVER,FRAME REAR,L (BLACK) BODY COLOR:KGL | 1 шт. | — | |
|
| 14-3 | 47330-10L00-YLF | COVER,FRAME REAR,L (GRAY) BODY COLOR:CJH | 1 шт. | — | |
|
| 15-1 | 68141-10L00-B7C | .EMBLEM,FRAME COVER,L (GRAY,W ITE) BODY COLOR:JWN | 1 шт. | — | |
|
| 15-2 | 68141-10L00-AA3 | .EMBLEM,FRAME COVER,L (GRAY,B ACK) BODY COLOR:KGL | 1 шт. | — | |
|
| 15-3 | 68141-10L00-HGU | .EMBLEM,FRAME COVER,L (BLACK, RAY) BODY COLOR:CJH | 1 шт. | — | |
|
| 16 | 47411-10L00 | LID,FRAME COVER | 1 шт. | — | |
|
| 17 | 94443-06G00 | TAPE (6X25X0.13) | 4 шт. | — | |
|
| 18 | 94478-14J00 | CUSHION | 2 шт. | — | |
|
| 19 | 09136-06126 | SCREW | 2 шт. | — | |
|
| 20 | 09180-06288 | SPACER (6.5X10X11) | 2 шт. | — | |
|
| 21 | 09409-06314 | CLIP (5.9X20.5) | 8 шт. | — | |
|
| 22 | 03541-0512A | SCREW | 6 шт. | — | |
|
