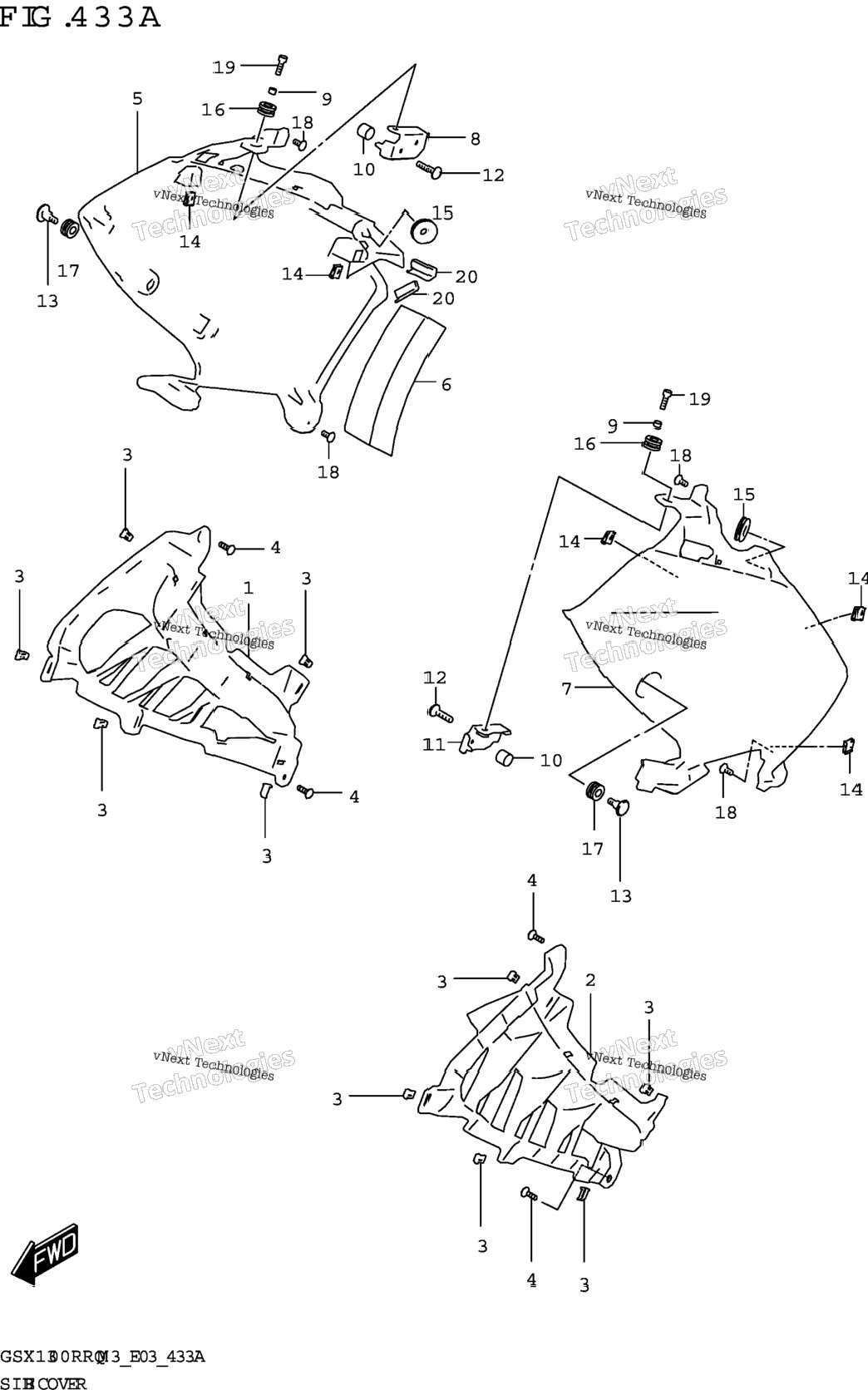

| 1 | 94474-10L00-YKY | COVER,SIDE FRONT,R (BLUE) BODY COLOR:JWN | 1 шт. | — | |
|
| 2 | 94474-10L00-YKV | COVER,SIDE FRONT,R (BLACK) BODY COLOR:KGL | 1 шт. | — | |
|
| 3 | 94474-10L00-YYG | COVER,SIDE FRONT,R (RED) BODY COLOR:CJH | 1 шт. | — | |
|
| 4 | 94484-10L00-YKY | COVER,SIDE FRONT,L (BLUE) BODY COLOR:JWN | 1 шт. | — | |
|
| 5 | 94484-10L00-YKV | COVER,SIDE FRONT,L (BLACK) BODY COLOR:KGL | 1 шт. | — | |
|
| 6 | 94484-10L00-YYG | COVER,SIDE FRONT,L (RED) BODY COLOR:CJH | 1 шт. | — | |
|
| 7 | 09409-08012 | CLIP | 10 шт. | — | |
|
| 8 | 03541-0516B | SCREW | 4 шт. | — | |
|
| 9 | 94475-10L00-YUH | COVER,SIDE,R (WHITE) BODY COLOR:JWN | 1 шт. | — | |
|
| 10 | 94475-10L00-YVB | COVER,SIDE,R (BLACK) BODY COLOR:KGL | 1 шт. | — | |
|
| 11 | 94475-10L00-YLF | COVER,SIDE,R (GRAY) BODY COLOR:CJH | 1 шт. | — | |
|
| 12 | 94479-10L00 | CUSHION,SIDE COVER | 1 шт. | — | |
|
| 13 | 94485-10L00-YUH | COVER,SIDE,L (WHITE) BODY COLOR:JWN | 1 шт. | — | |
|
| 14 | 94485-10L00-YVB | COVER,SIDE,L (BLACK) BODY COLOR:KGL | 1 шт. | — | |
|
| 15 | 94485-10L00-YLF | COVER,SIDE,L (GRAY) BODY COLOR:CJH | 1 шт. | — | |
|
| 16 | 94570-10L00 | BRACKET,SIDE COVER RH | 1 шт. | — | |
|
| 17 | 94572-10L00 | SPACER,SIDE COVER | 2 шт. | — | |
|
| 18 | 09180-06120 | SPACER (6.5X11.5X12) | 2 шт. | — | |
|
| 19 | 94580-10L00 | BRACKET,SIDE COVER LH | 1 шт. | — | |
|
| 20 | 09139-06196 | BOLT (6X25) | 2 шт. | — | |
|
| 21 | 09139-06206 | SCREW (6X20) | 2 шт. | — | |
|
| 22 | 09148-05038 | NUT (M5) | 5 шт. | — | |
|
| 23 | 09320-08028 | CUSHION (8X26X7) | 2 шт. | — | |
|
| 24 | 09320-09016 | CUSHION (9X18X9.5) | 2 шт. | — | |
|
| 25 | 09320-09016 | CUSHION (9X18X9.5) | 2 шт. | — | |
|
| 26 | 03541-0512A | SCREW | 4 шт. | — | |
|
| 27 | 07130-0516A | BOLT | 2 шт. | — | |
|
| 28 | 94489-10L10 | MOLDING,SIDE COVER RR NO.2 | 2 шт. | — | |
|
