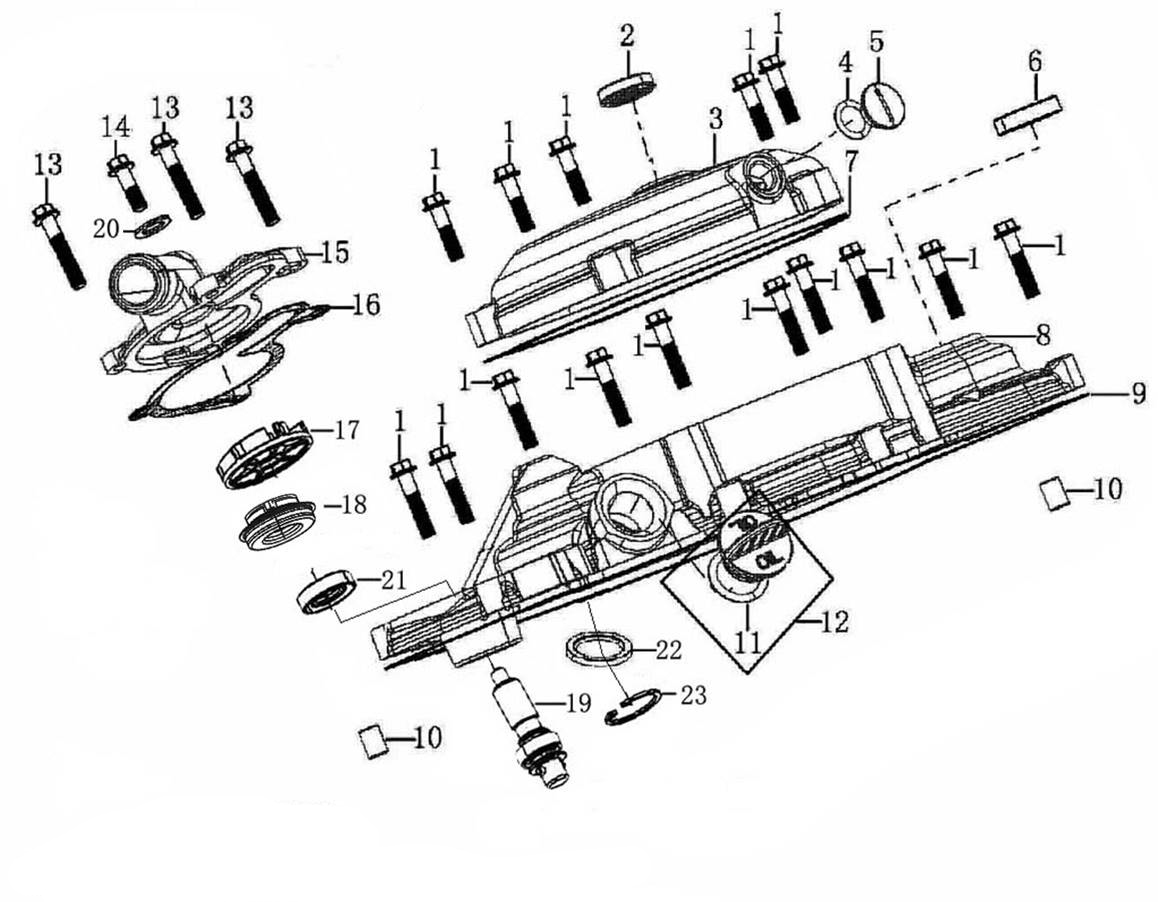

右曲轴箱盖 RIGHT CRANKCASE COVER
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 100011536-0002 | Bolt, M6×30 | 15 шт. | — | |
| 2 | 100101321 | Oil Lelve Sight Window | 1 шт. | — | |
| 3 | 100068312-0002 | Decorate Cover R.Crankcase Cover | 1 шт. | — | — |
| 4 | 100010074 | O-Ring,φ13.2×2.65 | 1 шт. | — | |
| 5 | 100103059-0003 | Cap Small View Hole | 1 шт. | — | |
| 6 | 100104744 | Oil Seal 18×30×7 | 1 шт. | — | |
| 7 | 100068613 | Gasket Decotate Cover | 1 шт. | — | — |
| 8 | 100082965-0002 | Cover Comp Right Crankcase | 1 шт. | — | — |
| 9 | 100208666 | Gasket R.Crankcase Cover | 1 шт. | — | |
| 10 | 100102726 | Dowel Pin,φ9×13 | 2 шт. | — | |
| 11 | 100107693 | O-Ring,φ18×3.55 | 1 шт. | — | |
| 12 | 100071971 | Oil Plug Assy | 1 шт. | — | |
| 13 | 100011537-0002 | Bolt, M6×35 | 3 шт. | — | |
| 14 | 100055588-0006 | Bolt, M6×20 | 1 шт. | — | |
| 15 | 100105519-0002 | Water Pump Cover | 1 шт. | — | |
| 16 | 100104609 | Gasket | 1 шт. | — | |
| 17 | 100105527 | Ane Wheel Water Pump | 1 шт. | — | |
| 18 | 100105543 | Water Pump Seal | 1 шт. | — | |
| 19 | 100105548 | Shaft Water Pump Ass. | 1 шт. | — | |
| 20 | 100106566 | Washer,φ6.5×1.5×φ12 | 1 шт. | — | |
| 21 | 100104809 | Oil Seal 12×24×6 | 1 шт. | — | |
| 22 | 100104688 | Oil Seal 14×24×7 | 1 шт. | — | |
| 23 | 100011077 | Retaining Ring, 24 | 1 шт. | — | |
