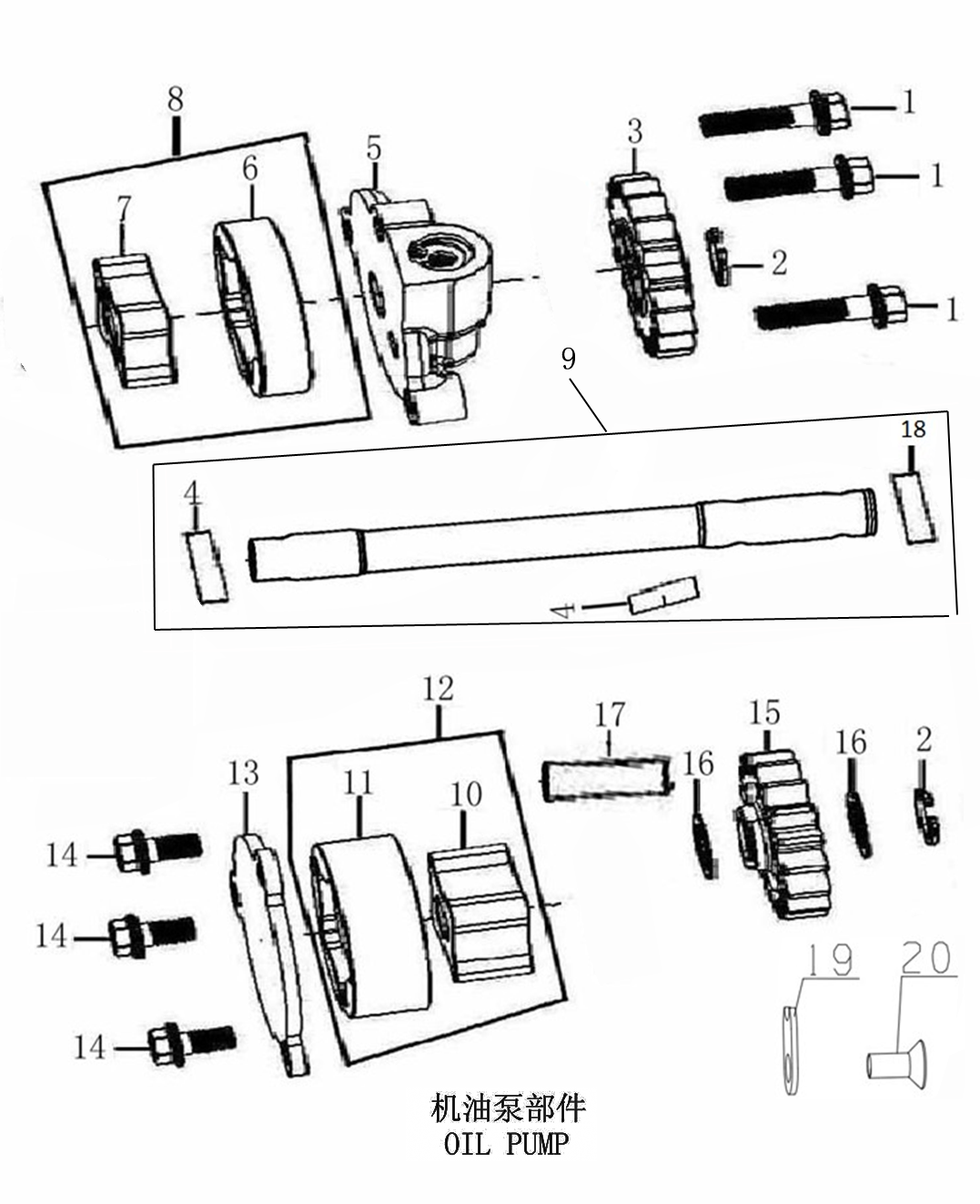

机油泵部件 OIL PUMP
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 100011531-0007 | Bolt, M6×18 | 3 шт. | — | |
| 2 | 100011094 | Retaining Ring, 10 | 2 шт. | — | |
| 3 | 100714158 | Oil pump gear | 1 шт. | — | |
| 4 | 100100903 | Pin,φ4×15.8 | 2 шт. | — | |
| 5 | 100144709 | Oil Pump Cover | 1 шт. | — | |
| 6 | 100144706 | Outer Rotor Oil Pump | 1 шт. | — | — |
| 7 | 100144707 | Inner Rotor Oil Pump | 1 шт. | — | — |
| 8 | 100153385 | Rotor assembly for oil pump | 1 шт. | — | — |
| 9 | 100163265 | Shaft Oil Pump | 1 шт. | — | — |
| 10 | 100144705 | Inner Rotor Oil Pump | 1 шт. | — | — |
| 11 | 100144704 | Outer Rotor Oil Pump | 1 шт. | — | — |
| 12 | 100153386 | Rotor assembly for oil pump | 1 шт. | — | — |
| 13 | 100144708 | Oil Pump Cover | 1 шт. | — | — |
| 14 | 100011529-0002 | Bolt, M6×12 | 3 шт. | — | — |
| 15 | 100714157 | Oil pump bridge gear | 1 шт. | — | |
| 16 | 100106390 | Washer,φ10.2×0.5×φ15 | 2 шт. | — | |
| 17 | 100756198 | Oil Pump Gear Shaft | 1 шт. | — | |
| 18 | 100100889 | Pin,φ3×16 | 1 шт. | — | |
| 19 | 100754529 | Stop Plate gear shaft | 1 шт. | — | |
| 20 | 100716947-0002 | Bolt, M6×16 | 1 шт. | — | — |
