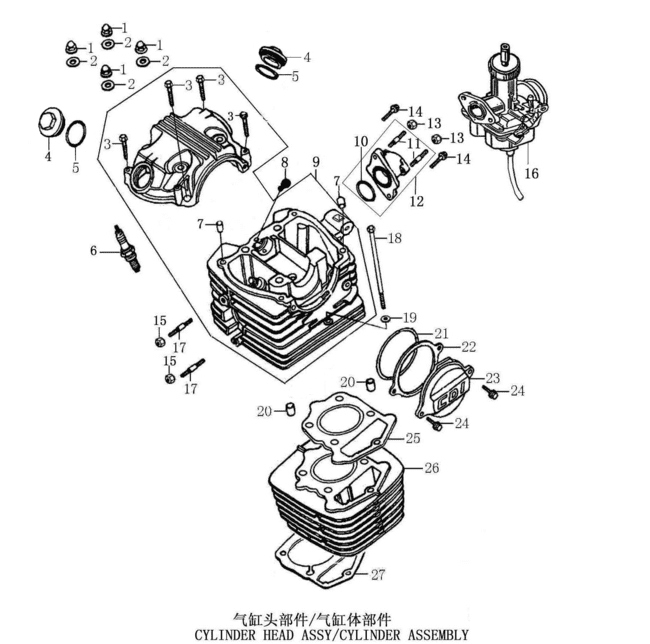

气缸头部件/气缸体部件CYLINDER HEAD ASSY/CYLINDER ASSEMBLY
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 3 | 100011537-0002 | GB16674 Small pan bolts M6×35(white zinc) | 4 шт. | — | |
| 4 | 11230-I006-00000G | COVER, VALVE CHAMBER | 2 шт. | — | — |
| 5 | 100107766 | O-ring(φ35×3_silicone rubber) | 2 шт. | — | |
| 6 | 100104140 | CB125 Spark Plug(NGK_D8EA) | 1 шт. | — | — |
| 7 | 100100868 | Locating pin φ8×14×φ6.3 | 2 шт. | — | |
| 8 | 100100002 | CB125 foot rubber oil plug | 1 шт. | — | — |
| 9 | 100208243-0002 | CB250D-G cylinder head assembly (M8_58_blasted and passivated) environmental protection Ⅱ generation profile | 1 шт. | — | — |
| 10 | 90101-20335000300 | O-RING 33.5×3 | 1 шт. | — | — |
| 11 | 91127-I006-0000 | BOLT | 2 шт. | — | — |
| 12 | 100759847 | CB200 inlet pipe(JQ-40K) | 1 шт. | — | — |
| 13 | B061700006000090X | NUT M6 | 2 шт. | — | — |
| 14 | 100011174-0004 | GB5783 bolts M6×20(white zinc) | 2 шт. | — | |
| 15 | B061700008000090X | NUT M8 | 2 шт. | — | — |
| 16 | 17100-MA76-0002 | CARBURETOR | 1 шт. | — | — |
| 17 | 100204676-0002 | AX100 Cylinder Head Exhaust Port Double Head Bolt M8×36(Blue White Zinc) | 2 шт. | — | |
| 18 | 100100415-0005 | CBB250 Cylinder head case connecting bolt M6×125(white zinc) | 1 шт. | — | — |
| 19 | 100106337 | Flat washer(φ6.2×2×φ13_blue zinc) | 1 шт. | — | |
| 20 | 100031687 | Positioning pinφ10×20 | 2 шт. | — | |
| 21 | 100107823 | O-ring(φ75×2.65_silicone rubber) | 1 шт. | — | — |
| 22 | 100208490 | CB125 foot cylinder head left cover gasket (without asbestos) | 1 шт. | — | — |
| 23 | 100102864-0005 | CB125 foot cylinder head left cover(Old_CDI_Shot blast passivation) | 1 шт. | — | — |
| 24 | 100055588-0006 | GB16674 small disk bolts M6×20(white zinc) | 2 шт. | — | |
| 25 | 100208894 | CB250D-G Cylinder head gasket set(metal) | 1 шт. | — | — |
| 26 | 100207693-0002 | CB250D-G Cylinder block parts (2#_Cylinder standard 250_Shot blast passivation) | 1 шт. | — | — |
| 27 | 100208580 | CB150D Cylinder head sealing gasket (without asbestos) | 1 шт. | — | — |
