配气机构 VALVE MECHANISM

Назад к схемам
配气机构 VALVE MECHANISM
АртикулНазваниеКол-воНаличие и ценыДействия
215404-I006-0000SCREW, VALVE CLEARANCE2 шт.
3100105180CB125 foot valve rocker arm combination2 шт.
415707-I006-0000VALVE LOCKER4 шт.
5100076573CB125D valve spring upper seat combination(1#_CB locking clip)2 шт.
6100105329CB125 foot valve inner and outer spring combination2 шт.
7100105336CG125D Oil Shield Combination2 шт.
8100105325CG125D valve inner spring seat (lower)2 шт.
9100105315CG125D valve outer spring seat(lower)2 шт.
10100200647CB200-C Exhaust Valve(Welding Alloy)1 шт.
11100200596CB200-C intake valve1 шт.
12100105226CB250D-G chain guide plate combination1 шт.
13100105055CB200 Timing Driven Sprocket(34 teeth)1 шт.
14100011171-0002GB5783 bolts M6×12(white zinc)2 шт.
15100105129CB250D-G timing chain combination(7×104_tooth chain)1 шт.
16100200480CB250D-G chain tensioner plate assembly1 шт.
17100106544Flat washer(φ8×1.5×φ14)1 шт.
18100100363-0007CB125 foot tensioner arbor bolts(blue white zinc)1 шт.
19100208741CB125D Tensioner Gasket(without asbestos)1 шт.
20100108552-0002CB125D Tensioner combination(with bolt_with sealing ring_shot blasting passivation)1 шт.
21100010837-0002GB70.1 Bolt M6×16(Orchid white zinc)2 шт.
2290101-20090000180O-RING 9×1.81 шт.
2391120-I006-0000BOLT1 шт.
24100105149CB125 foot valve rocker arm shaft(2#_PDK special)2 шт.
25100200200CB250D-G camshaft parts (TPI bearing_6203 bearing group clearance 0.017~0.025_6003ZC3)1 шт.
26100102809CB125 foot valve rocker arm shaft positioning plate1 шт.
27100123471-0001GB819.2 Screw M6×16(blue white zinc)1 шт.
28100202747CB200 chain guard combination1 шт.
29100011173-0003GB5783 bolt M6×16(white zinc)1 шт.

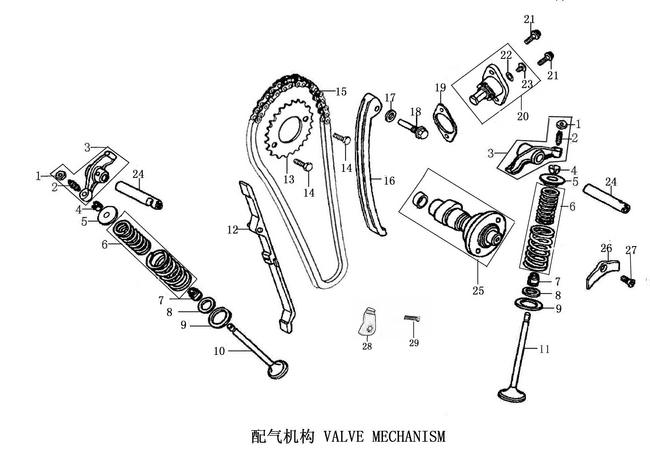

配气机构 VALVE MECHANISM
