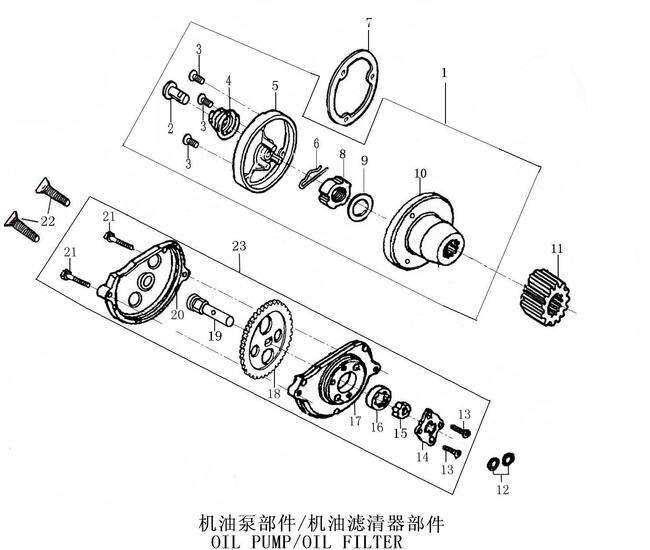

机油泵部件/机油滤清器部件 OIL PUMP/OIL FILTER
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 100200006 | SB125 Oil Filter(2#) | 1 шт. | — | |
| 2 | 14201-I006-0000 | OIL PIPE | 1 шт. | — | — |
| 3 | B008190105001220B | SCREW M5×12 | 3 шт. | — | — |
| 4 | 14202-I006-0000 | SPRING, OIL PIPE | 1 шт. | — | — |
| 5 | 14207-IA20-00000W | OIL FILTER COVER | 1 шт. | — | — |
| 6 | 14208-I006-0000 | OPEN PIN | 1 шт. | — | — |
| 7 | 100208726 | SB125 Filter End Cap Gasket(without asbestos) | 1 шт. | — | — |
| 8 | 91203-I006-0000 | NUT | 1 шт. | — | — |
| 9 | 22004-I006-0000 | DISH WASHER, CLUTCH | 1 шт. | — | — |
| 10 | 14203-IA20-0100 | ROTOR ASS. OF OIL FILTER | 1 шт. | — | — |
| 11 | 100103485 | CB125 foot active gear (21 teeth) | 1 шт. | — | |
| 12 | 100107842 | O-ring(φ9.4×2.4_NBR) | 2 шт. | — | |
| 13 | B008190104001020B | SCREW M4×10 | 2 шт. | — | — |
| 14 | 14108-L044-0200 | OIL PUMP COVER | 1 шт. | — | — |
| 15 | 14111-L044-0200 | INNER ROTOR, OIL PUMP | 1 шт. | — | — |
| 16 | 14112-L044-0000 | OUTER ROTOR, OIL PUMP | 1 шт. | — | — |
| 17 | 14110-L044-0200 | OIL PUMP BODY | 1 шт. | — | — |
| 18 | 14102-L044-0001 | GEAR,OIL PUMP | 1 шт. | — | — |
| 19 | 14107-L044-0200 | SHAFT,OIL PUMP | 1 шт. | — | — |
| 20 | 14113-L044-0000 | OIL PUMP GEAR COVER | 1 шт. | — | — |
| 21 | B057820005002070B | BOLT M5×20 | 2 шт. | — | — |
| 22 | 100112008-0002 | GB819.2 Screw M6×30(white zinc) | 2 шт. | — | |
| 23 | 100100061 | CB200 oil pump parts(37 teeth_inductive) | 1 шт. | — | |
