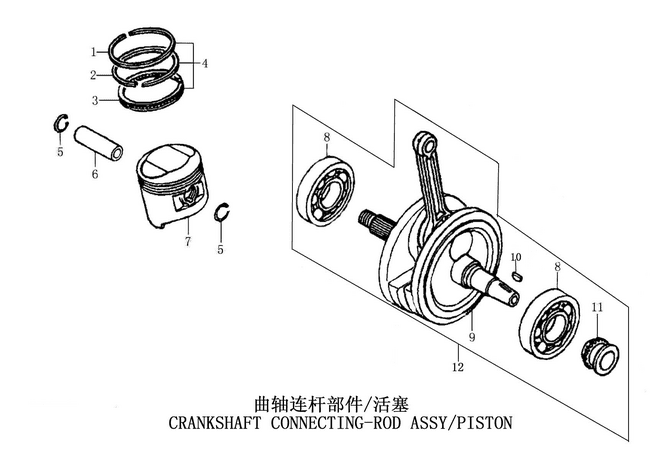

曲轴连杆部件/活塞 CRANKSHAFT CONNECTING-ROD ASSY/PISTON
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 13103-ME05-0000 | PISTON RING 1 | 1 шт. | — | — |
| 1 | 93301-61521025000 | WASHER 15.2×1×25 | 1 шт. | — | — |
| 2 | 13104-ME05-0000 | PISTON RING 2 | 1 шт. | — | — |
| 3 | 13120-ME05-0000 | OIL RING ASSY | 1 шт. | — | — |
| 4 | 100101666 | CB250D-G piston ring assembly (one ring oil ring PVD) | 1 шт. | — | — |
| 5 | 100100582 | CB125 foot piston pin retaining ring | 2 шт. | — | — |
| 6 | 100101534 | CG200-A piston pin | 1 шт. | — | — |
| 7 | 100101462 | CBB200 Piston(Molybdenum disulfide sprayed on skirt) | 1 шт. | — | — |
| 8 | 92102-00TMSC06B42 | BEARING (TM-SC06B42) | 2 шт. | — | — |
| 9 | 13220-ME05-0000 | CONNECTING ROD COMP 3 | 1 шт. | — | — |
| 10 | 91601-I008-0000 | SEMICIRCULAR KEY | 1 шт. | — | — |
| 11 | 13222-ME05-0000 | HUB DUMP CHAIN SPROCKET | 1 шт. | — | — |
| 12 | 100207013 | CB250D-G crankshaft connecting rod parts (Ridolu KU_no right bearing) | 1 шт. | — | |
| 序号NO. | 编码（PART CODE） | 英文名称（ ENGLISH DESCRIPTION） | 1 шт. | — | — |
