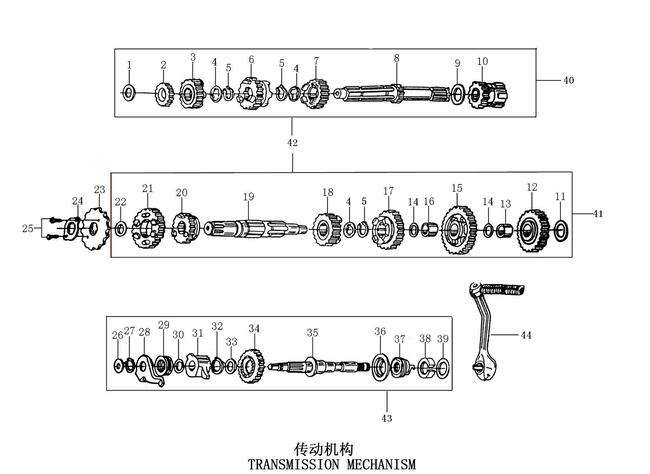

传动机构 TRANSMISSION MECHANISM
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 5 | 91402-D002-0100 | CIRCLI φ18.5×1.2×φ22.1 | 3 шт. | — | — |
| 6 | 23222-LA73-0004 | GEAR M-4 | 1 шт. | — | — |
| 7 | 23222-LA73-0003 | GEAR M-3 | 1 шт. | — | — |
| 8 | 23221-LA73-0000 | TRANSMISSION MAIN SHAFT | 1 шт. | — | — |
| 9 | 93301-62020527000 | WASHER 20.2×0.5×27 | 1 шт. | — | — |
| 10 | 23231-I008-0000 | FINAL SHAFT | 1 шт. | — | — |
| 11 | 93301-61521030000 | WASHER 15.2×1×30 | 1 шт. | — | — |
| 12 | 23248-I008-0000 | GEAR | 1 шт. | — | — |
| 13 | 23203-I008-0003 | GEAR BUSH | 1 шт. | — | — |
| 14 | 93301-51650524000 | WASHER 16.5×0.5×24 | 2 шт. | — | — |
| 15 | 23242-LA73-0001 | GEAR C-1 | 1 шт. | — | — |
| 16 | 23203-I006-0001 | GEAR BUSH | 1 шт. | — | — |
| 17 | 23242-LA73-0003 | GEAR C-3 | 1 шт. | — | — |
| 18 | 23242-LA73-0004 | GEAR C-4 | 1 шт. | — | — |
| 19 | 23241-I008-0000 | TRANSMISSION COUNTER SHAFT | 1 шт. | — | — |
| 20 | 23242-LA73-0005 | GEAR C-5 | 1 шт. | — | — |
| 21 | 23242-LA73-0002 | GEAR C-2 | 1 шт. | — | — |
| 22 | 93301-52001027000 | WASHER 20×1×27 | 1 шт. | — | — |
| 23 | 100103836 | CG250 active sprocket(520.13) | 1 шт. | — | |
| 24 | 100103850 | CB125 foot active sprocket fixing plate | 1 шт. | — | |
| 25 | 100031911-0004 | GB5783 Bolt M6×10(white zinc) | 2 шт. | — | |
| 26 | 93301-51211018000 | WASHER 12.1×1×18 | 1 шт. | — | — |
| 27 | B0089401160000000 | CIRCLIP 16 | 1 шт. | — | — |
| 28 | 2112B-I008-0000 | GUIDE PLATE ASS. | 1 шт. | — | — |
| 29 | 21119-I008-0000 | SPRING, KICK STARTING RATCHET WHEEL | 1 шт. | — | — |
| 30 | 93301-51611024000 | WASHER 16.1×1×24 | 1 шт. | — | — |
| 31 | 21118-I008-0000 | STARTING RATCHET | 1 шт. | — | — |
| 32 | 91402-I008-0000 | CIRCLI φ18.5×1.2×φ22.4 | 1 шт. | — | — |
| 33 | 93301-62000527000 | WASHER 20×0.5×27 | 1 шт. | — | — |
| 34 | 21117-I008-0000 | GEAR, KICK STARTER | 1 шт. | — | — |
| 35 | 21107-I008-0001 | PIVOT, KICK STARTING SHAFT | 1 шт. | — | — |
| 36 | 21104-I008-0000 | SEAT, SPRING, KICK STARTING SHAFT | 1 шт. | — | — |
| 37 | 21106-I008-0000 | RETURN SPRING, KICK STARTING SHAFT | 1 шт. | — | — |
| 38 | 21111-I008-0000 | COLLAPSIBLE | 1 шт. | — | — |
| 39 | 93301-51611030000 | WASHER 16.1×1×30 | 1 шт. | — | — |
| 40 | 23220-LA73-0000 | MAIN SHAFT, TRANSMISSION | 1 шт. | — | — |
| 41 | 23240-LA73-0000 | COUTERSHAFT TRANSMISSION | 1 шт. | — | — |
| 42 | 100203376 | JINGBA 250 water-cooled main and auxiliary shaft combination(1#_157_steel sleeve_outer spline lengthened by 10) | 1 шт. | — | — |
| 43 | 100201864 | CG125D Starter Shaft Assembly(Oil Seal Light Rod L:60_Spiral Type_Powder Metallurgy Ratchet Wheel_Land White Zinc) | 1 шт. | — | — |
| 44 | 100057553 | CG125D starter rod parts(QD-17-2#)white chrome_quenched | 1 шт. | — | — |
