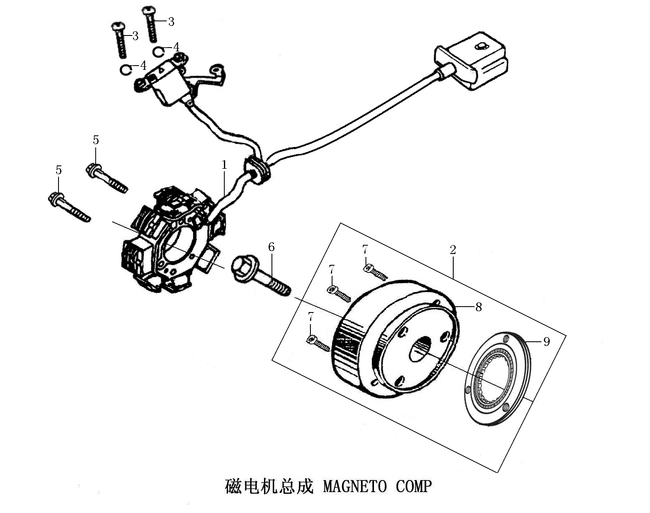

| 1 | 100104166-0028 | CB125D magneto stator assembly(128V pole_full wave AC_interface QBJ-24_L1:600) | 1 шт. | — | |
|
| 1 | 100104258-0084 | CB250D-G starter motor(2#_single wire_boot shape_700_seat passivated_case blue-white zinc) | 1 шт. | — | — |
|
| 2 | 100104192 | CB125D magneto rotor combination(2#_12V8 poles_wedge type overdrive) | 1 шт. | — | — |
|
| 3 | 100031844-0002 | GB823 Screw M4×10(white zinc) | 2 шт. | — | — |
|
| 4 | 100010884-0004 | GB93 spring pad φ4(white zinc) | 2 шт. | — | — |
|
| 5 | B166740A06002870B | BOLT M6×28 | 2 шт. | — | — |
|
| 6 | 100050578 | CG125D magneto mounting bolt M10×36(improved) | 1 шт. | — | |
|
| 7 | 91197-I008-00000C | BOLT M8×18 | 3 шт. | — | |
|
| 8 | 82130-I049-0301 | ROTOR ASSY,MAGNETO | 1 шт. | — | — |
|
| 9 | 21300-LA73-0000 | ASSEMBLY, OVERRUNNING CLUTCH | 1 шт. | — | |
|
| 序号NO. | 编码（PART CODE） | 英文名称（ ENGLISH DESCRIPTION） | 1 шт. | — | — |
|
