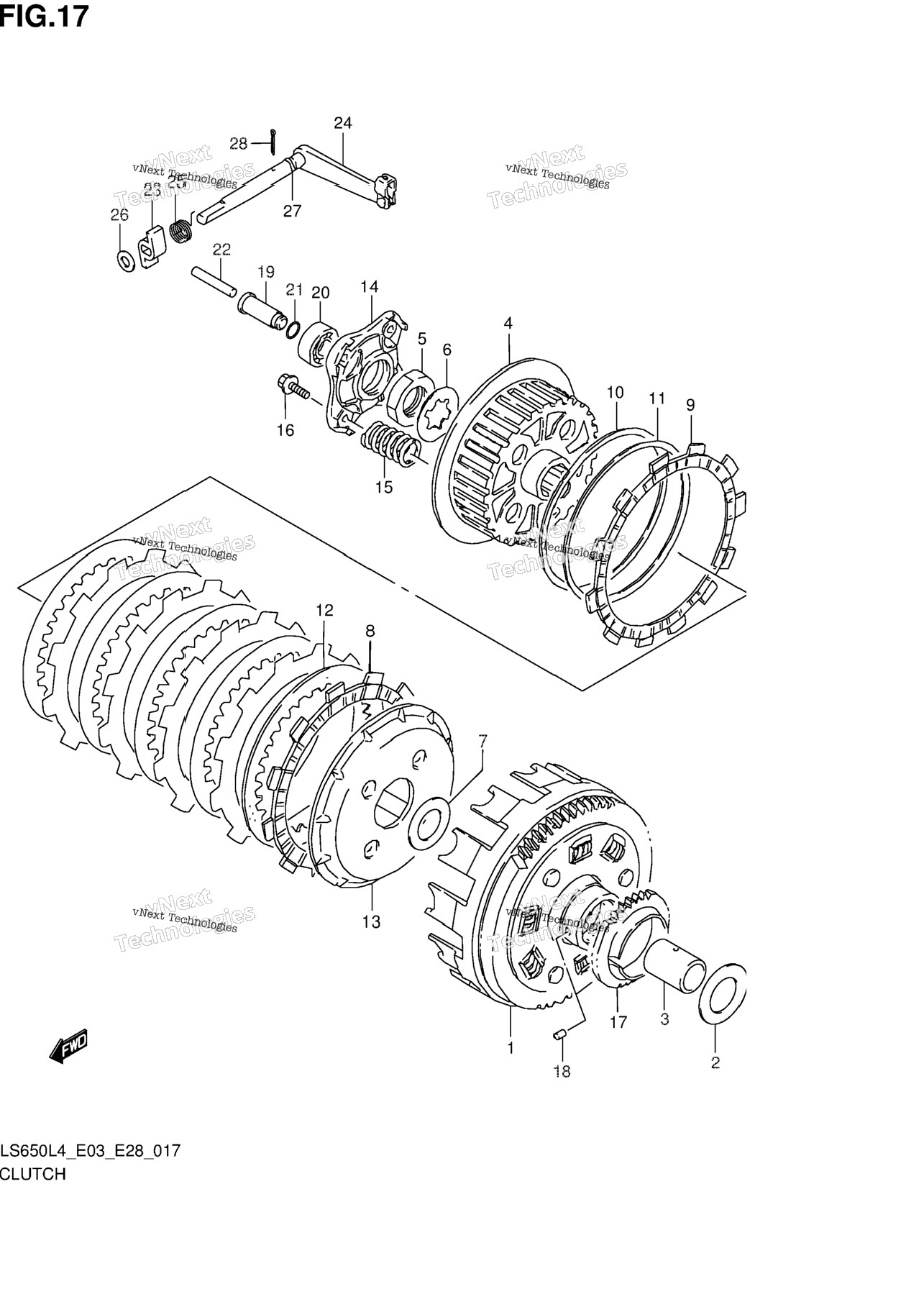

| 1 | 21200-24B12 | GEAR ASSY, PRIMARY DRIVEN (NT:67) | 1 шт. | — | |
|
| 2 | 08211-22443 | WASHER | 1 шт. | — | |
|
| 3 | 09180-22023 | SPACER (22X28X32.5) | 1 шт. | — | |
|
| 4 | 21411-37401 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 09140-22009 | NUT | 1 шт. | — | |
|
| 6 | 09167-22005 | LOCK WASHER | 1 шт. | — | |
|
| 7 | 08211-22403 | WASHER | 1 шт. | — | |
|
| 8 | 21441-37400 | PLATE, DRIVE (T:3.0) | 5 шт. | — | |
|
| 9 | 21442-37401 | PLATE, DRIVE (T:3.5) | 1 шт. | — | |
|
| 10 | 21471-37400 | SEAT, WAVE WASHER (T:1.4) | 1 шт. | — | |
|
| 11 | 09164-00004 | WASHER | 1 шт. | — | |
|
| 12 | 21451-14A00 | PLATE, CLUTCH DRIVEN (T:1.6) | 5 шт. | — | |
|
| 13 | 21462-37400 | DISK, CLUTCH PRESSURE | 1 шт. | — | |
|
| 14 | 21465-37400 | PLATE, RELEASE | 1 шт. | — | |
|
| 15 | 09440-20016 | SPRING | 4 шт. | — | |
|
| 16 | 01550-0620A | BOLT | 4 шт. | — | |
|
| 17 | 16321-24B00 | GEAR, OIL PUMP DRIVE (NT:30) | 1 шт. | — | |
|
| 18 | 09261-06002 | PIN (6X6) | 1 шт. | — | |
|
| 19 | 23121-24B02 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 20 | 09262-12001 | BEARING (12X28X8) | 1 шт. | — | |
|
| 21 | 09280-09005 | .O RING (D:1.9,ID:8.6) | 1 шт. | — | |
|
| 22 | 23111-24B00-445 | ROD, CLUTCH PUSH (L:44.5) | 1 шт. | — | |
|
| 22 | 23111-24B00-455 | ROD, CLUTCH PUSH (L:45.5) | 1 шт. | — | |
|
| 22 | 23111-24B00-465 | ROD, CLUTCH PUSH (L:46.5) | 1 шт. | — | |
|
| 23 | 23263-24B01 | CAM, CLUTCH RELEASE | 1 шт. | — | |
|
| 24 | 23270-24B03 | ARM ASSY, CLUTCH RELEASE | 1 шт. | — | |
|
| 25 | 09448-13010 | SPRING | 1 шт. | — | |
|
| 26 | 09181-10111 | SHIM (10X14X1) | 1 шт. | — | |
|
| 27 | 09280-07004 | O-RING (D:1.9 ID:6.8) | 1 шт. | — | |
|
| 28 | 04111-2020A | COTTER PIN | 1 шт. | — | |
|
