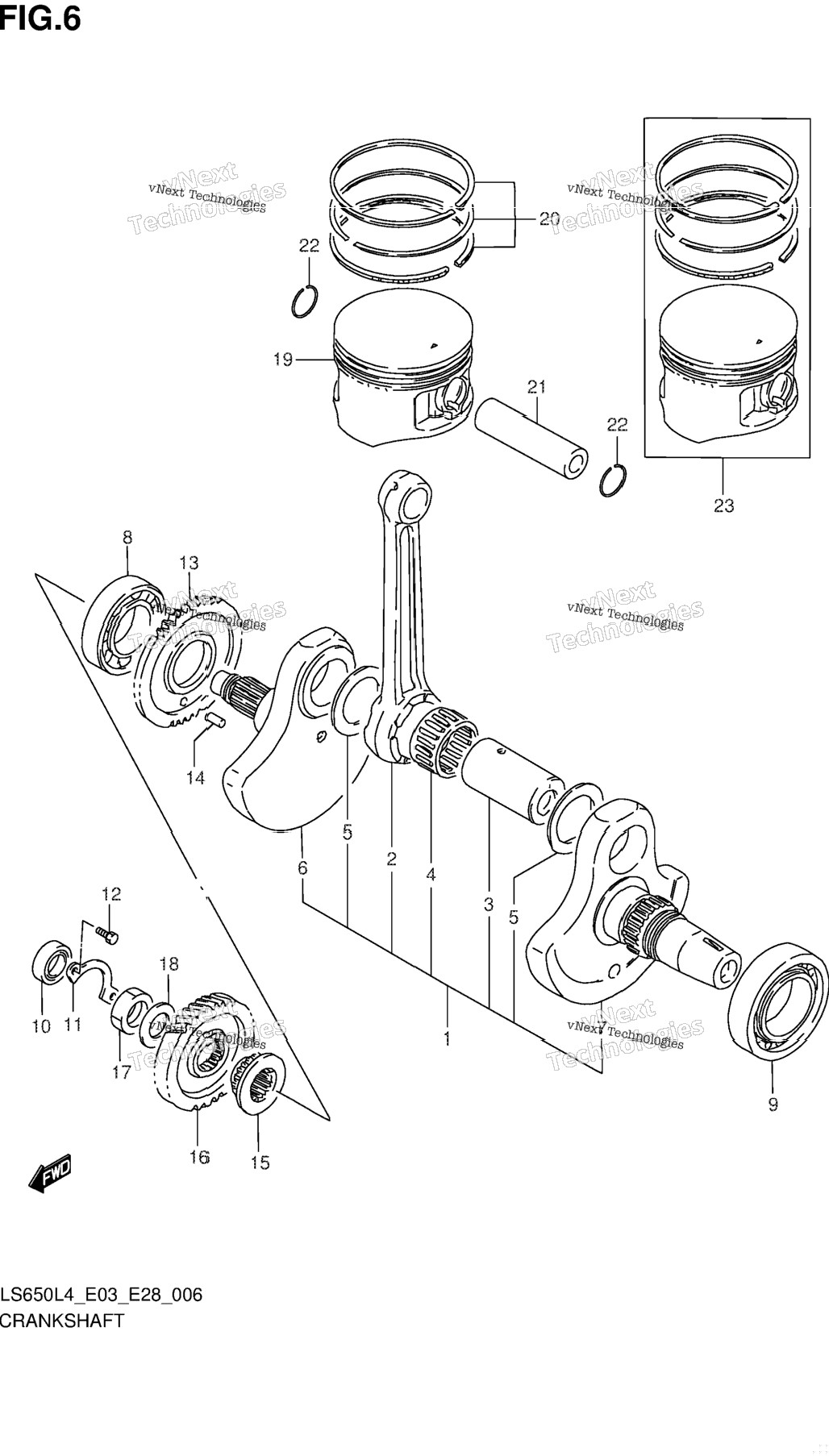

| 1 | 12200-24B05 | CRANKSHAFT ASSY | 1 шт. | — | |
|
| 2 | 12161-24B01-0C0 | CONNROD | 1 шт. | — | |
|
| 3 | 12210-24B01-0A0 | PIN, CRANK | 1 шт. | — | |
|
| 4 | 09263-37004-0B0 | BEARING (37X47X25) (BLUE) | 1 шт. | — | |
|
| 4 | 09263-37004-0C0 | BEARING (37X47X25) (RED) | 1 шт. | — | |
|
| 5 | 09160-37006 | WASHER (37X55X1) | 2 шт. | — | |
|
| 6 | 12221-24B02 | CRANKSHAFT, RH | 1 шт. | — | |
|
| 7 | 12261-24B02 | CRANKSHAFT, LH | 0 шт. | — | |
|
| 8 | 09262-35038 | BEARING (35X72X17) RH | 1 шт. | — | |
|
| 9 | 09264-40002 | BEARING (40X80X18) LH | 1 шт. | — | |
|
| 10 | 09282-16002 | OIL SEAL (16X30X6) RH | 1 шт. | — | |
|
| 11 | 12548-24B00 | RETAINER, CRANKSHAFT OIL SEAL | 1 шт. | — | |
|
| 12 | 01500-0508B | BOLT | 2 шт. | — | |
|
| 13 | 12661-24B00 | GEAR, CRANK BALANCER DRIVE (NT:47) | 1 шт. | — | |
|
| 14 | 04221-08149 | PIN | 1 шт. | — | |
|
| 15 | 12731-24B00 | SPROCKET, CAM CHAIN DRIVE (NT:19) | 1 шт. | — | |
|
| 16 | 21111-24B10 | GEAR, PRIMARY DRIVE (NT:37) | 1 шт. | — | |
|
| 17 | 09140-20013 | NUT | 1 шт. | — | |
|
| 18 | 09164-20003 | WASHER | 1 шт. | — | |
|
| 19 | 12111-24B01-0F0 | PISTON | 1 шт. | — | |
|
| 20 | 12140-14A32 | RING SET, PISTON | 1 шт. | — | |
|
| 21 | 12151-14A01 | PIN, PISTON | 1 шт. | — | |
|
| 22 | 09381-23003 | CIRCLIP | 2 шт. | — | |
|
| 23 | 12100-24B00-050 | PISTON SET (OS:0.5) OPT | 1 шт. | — | |
|
