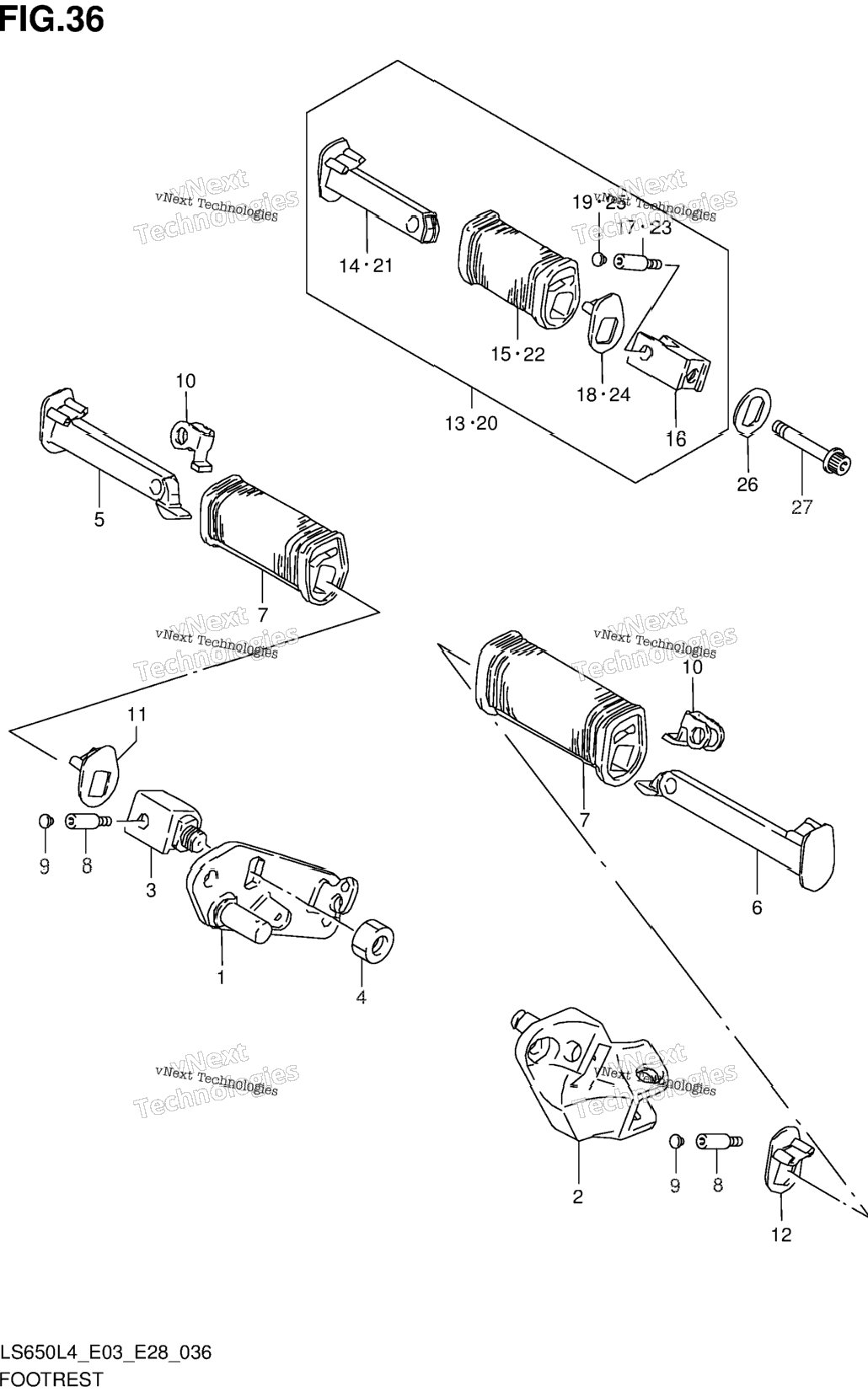

| 1 | 43510-24B00 | BRACKET, FRONT FOOTREST RH | 1 шт. | — | |
|
| 2 | 43520-24B22 | BRACKET, FRONT FOOTREST LH | 1 шт. | — | |
|
| 3 | 43517-24B01 | HOLDER, FRONT FOOTREST RH | 1 шт. | — | |
|
| 4 | 09140-16029 | NUT RH | 1 шт. | — | |
|
| 5 | 43530-24B02 | BAR, FRONT FOOTREST RH | 1 шт. | — | |
|
| 6 | 43540-24B02 | BAR, FRONT FOOTREST LH | 1 шт. | — | |
|
| 7 | 43551-38A00 | RUBBER, FRONT FOOTREST | 2 шт. | — | |
|
| 10 | 43570-24B01 | CUSHION, FRONT FOOTREST | 2 шт. | — | |
|
| 11 | 43470-24B00 | WASHER, FRONT FOOTREST RH | 1 шт. | — | |
|
| 12 | 43480-24B00 | WASHER, FRONT FOOTREST LH | 1 шт. | — | |
|
| 13 | 43600-24B00 | FOOTREST ASSY, PILLION RH | 1 шт. | — | |
|
| 14 | 43610-24B01 | BAR, PILLION FOOTREST RH | 1 шт. | — | |
|
| 16 | 43621-24B10 | HOLDER, PILLION FOOTREST | 0 шт. | — | |
|
| 18 | 43570-38A00 | WASHER, PILLION FOOTREST RH | 0 шт. | — | |
|
| 20 | 43700-24B00 | FOOTREST ASSY, PILLION LH | 1 шт. | — | |
|
| 21 | 43710-24B01 | BAR, PILLION FOOTREST LH | 1 шт. | — | |
|
| 22 | 43651-24B00 | RUBBER, PILLION FOOTREST | 1 шт. | — | |
|
| 22 | 43651-24B00 | RUBBER, PILLION FOOTREST | 1 шт. | — | |
|
| 23 | 09106-06100 | BOLT (6X8) | 1 шт. | — | |
|
| 23 | 09106-06100 | BOLT (6X8) | 1 шт. | — | |
|
| 23 | 09106-06100 | BOLT (6X8) | 2 шт. | — | |
|
| 24 | 43580-38A00 | WASHER, PILLION FOOTREST LH | 0 шт. | — | |
|
| 25 | 43576-24B00 | CAP, FRONT FOOTREST RUBBER BOLT | 1 шт. | — | |
|
| 25 | 43576-24B00 | CAP, PILLION FOOTREST BOLT | 1 шт. | — | |
|
| 25 | 43576-24B00 | CAP, PILLION FOOTREST BOLT | 1 шт. | — | |
|
| 26 | 43622-24B00 | WASHER, PILLION FOOTREST HOLDER | 2 шт. | — | |
|
| 27 | 09106-10086 | BOLT (10X45) | 2 шт. | — | |
|
