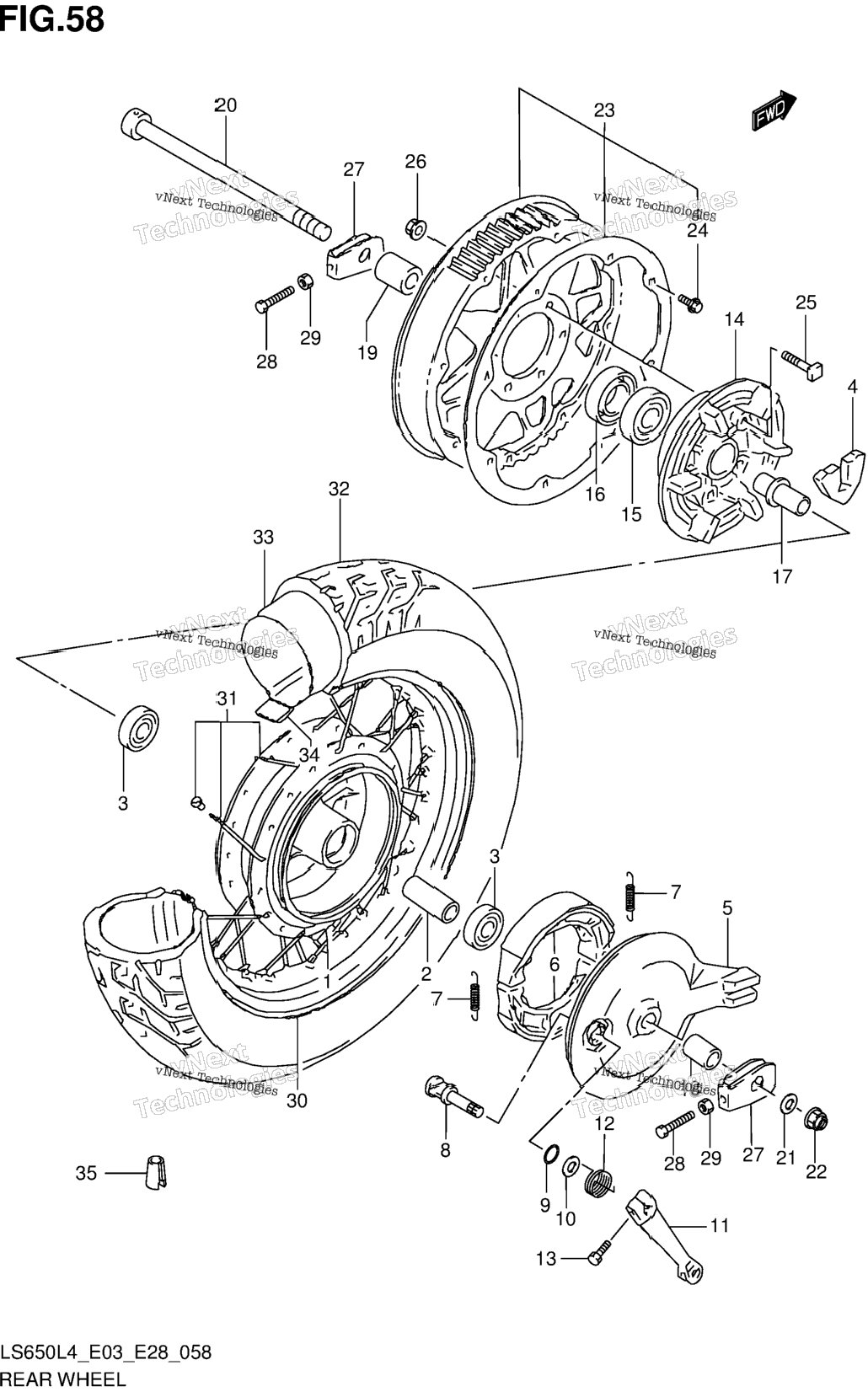

| 1 | 64110-24B00 | HUB, REAR WHEEL | 1 шт. | — | |
|
| 2 | 09180-17069 | SPACER (17.5X25X70) | 1 шт. | — | |
|
| 3 | 08143-63037 | BEARING | 2 шт. | — | |
|
| 4 | 64651-31001 | ABSORBER, REAR HUB SHOCK | 6 шт. | — | |
|
| 5 | 64210-24B01 | PANEL, REAR BRAKE | 1 шт. | — | |
|
| 6 | 64400-44810 | SHOE, REAR BRAKE | 1 шт. | — | |
|
| 7 | 55420-30000 | SPRING, BRAKE SHOE | 2 шт. | — | |
|
| 8 | 54440-08004 | CAM, REAR BRAKE | 1 шт. | — | |
|
| 9 | 09280-15003 | O RING (D:2.4,ID:14.8) | 1 шт. | — | |
|
| 10 | 09160-15048 | WASHER (15.5X24X1.6) | 1 шт. | — | |
|
| 11 | 64451-24B00 | LEVER, REAR BRAKE CAM | 1 шт. | — | |
|
| 12 | 09448-33006 | SPRING | 1 шт. | — | |
|
| 13 | 01570-0625B | BOLT | 1 шт. | — | |
|
| 14 | 64611-31003 | DRUM, REAR SPROCKET | 1 шт. | — | |
|
| 15 | 09262-25073 | BEARING (25X62X17) | 1 шт. | — | |
|
| 16 | 09285-33001 | OIL SEAL (33X62X7) | 1 шт. | — | |
|
| 17 | 64733-31300 | RETAINER, REAR SPROCKET DRUM | 1 шт. | — | |
|
| 18 | 09180-17082 | SPACER (17X28X22.3) RH | 1 шт. | — | |
|
| 19 | 09180-17083 | SPACER (17X33X35.3) LH | 1 шт. | — | |
|
| 20 | 64711-24B02 | AXLE, REAR | 1 шт. | — | |
|
| 21 | 09160-17050 | WASHER (17X30X3.2) | 1 шт. | — | |
|
| 22 | 09159-16002 | NUT | 1 шт. | — | |
|
| 23 | 64510-24B10 | SPROCKET, REAR (NT:68) | 1 шт. | — | |
|
| 24 | 01550-0612B | BOLT | 8 шт. | — | |
|
| 25 | 09105-10005 | BOLT (10X40) | 6 шт. | — | |
|
| 26 | 08319-3110B | NUT | 6 шт. | — | |
|
| 27 | 61410-24B01 | ADJUSTER, BELT | 2 шт. | — | |
|
| 28 | 09104-08027 | BOLT (8X43) | 2 шт. | — | |
|
| 29 | 08310-00087 | NUT | 2 шт. | — | |
|
| 30 | 65311-24B01 | RIM, REAR WHEEL (15 M/CXMT2.75) | 0 шт. | — | |
|
| 31 | 65320-24B00 | SPOKE SET, REAR WHEEL | 1 шт. | — | |
|
| 32 | 65100-24B02 | TIRE, REAR (140/80-15 M/C 67H) (IRC) | 1 шт. | — | |
|
| 33 | 65200-26F10 | TUBE ASSY, WHEEL INNER | 1 шт. | — | |
|
| 34 | 65261-26F10 | PROTECTOR, WHEEL INNER TUBE | 1 шт. | — | |
|
| 35 | 55411-26G00 | BALANCER WHEEL (15G) 15G | 1 шт. | — | |
|
| 36 | 55413-41F00 | BALANCER WHEEL (30G) 30G | 1 шт. | — | |
|
