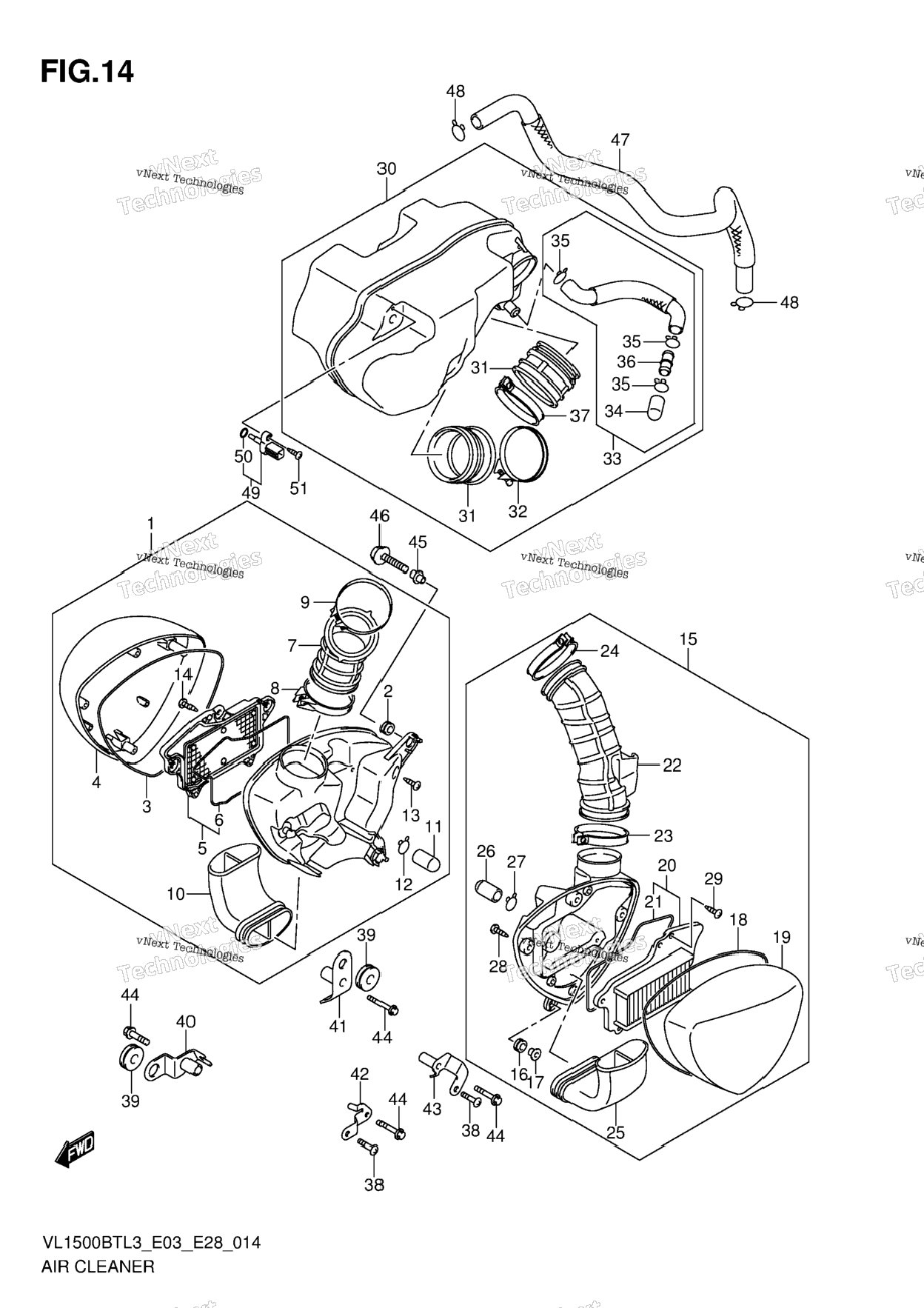

| 1 | 13701-40HB0 | CLEANER, AIR RH | 1 шт. | — | |
|
| 2 | 09320-09016 | CUSHION (9X18X9.5) | 2 шт. | — | |
|
| 3 | 13756-40H00 | GASKET | 1 шт. | — | |
|
| 4 | 13741-40HB0 | CAP, AIR CLEANER | 1 шт. | — | |
|
| 5 | 13780-40H00 | FILTER ASSY | 1 шт. | — | |
|
| 6 | 13787-40H00 | GASKET | 1 шт. | — | |
|
| 7 | 13738-40H00 | TUBE, JOINT RH | 1 шт. | — | |
|
| 8 | 09402-62208 | CLAMP | 1 шт. | — | |
|
| 9 | 13826-40H00 | CLAMP | 0 шт. | — | |
|
| 10 | 13891-40H01 | TUBE, INLET | 0 шт. | — | |
|
| 11 | 13878-09F00 | PLUG, DRAIN | 1 шт. | — | |
|
| 12 | 09401-14101 | .CLIP (ID:14.5) | 1 шт. | — | |
|
| 13 | 03211-0520A | SCREW | 4 шт. | — | |
|
| 14 | 03541-0516A | SCREW | 3 шт. | — | |
|
| 15 | 13702-40HB0 | CLEANER, AIR LH | 1 шт. | — | |
|
| 16 | 09320-09016 | CUSHION (9X18X9.5) | 2 шт. | — | |
|
| 17 | 13812-29C50 | COLLAR | 2 шт. | — | |
|
| 18 | 13756-40H00 | GASKET | 1 шт. | — | |
|
| 19 | 13741-40HB0 | CAP, AIR CLEANER | 1 шт. | — | |
|
| 20 | 13780-40H00 | FILTER ASSY | 1 шт. | — | |
|
| 21 | 13787-40H00 | GASKET | 1 шт. | — | |
|
| 22 | 13739-40H00 | TUBE, JOINT LH | 1 шт. | — | |
|
| 23 | 09402-62208 | CLAMP | 1 шт. | — | |
|
| 24 | 13827-40H01 | CLAMP, INTAKE PIPE | 1 шт. | — | |
|
| 25 | 13891-40H01 | TUBE, INLET | 0 шт. | — | |
|
| 26 | 13878-09F00 | PLUG, DRAIN | 1 шт. | — | |
|
| 27 | 09401-14101 | .CLIP (ID:14.5) | 1 шт. | — | |
|
| 28 | 03211-0520A | SCREW | 4 шт. | — | |
|
| 29 | 03541-0516A | SCREW | 3 шт. | — | |
|
| 30 | 13710-40H01 | CHAMBER, AIR CLEANER | 0 шт. | — | |
|
| 31 | 13881-40H01 | TUBE, OUTLET | 0 шт. | — | |
|
| 32 | 13170-39H00 | CLAMP | 0 шт. | — | |
|
| 33 | 13870-40H00 | TUBE, DRAIN | 0 шт. | — | |
|
| 34 | 13859-41B10 | ..PLUG | 1 шт. | — | |
|
| 35 | 09401-14101 | .CLIP (ID:14.5) | 3 шт. | — | |
|
| 36 | 13888-19B00 | JOINT 2ND AIR CLEANER HOSE | 1 шт. | — | |
|
| 37 | 13826-40HB0 | CLAMP | 0 шт. | — | |
|
| 38 | 09139-06056 | SCREW (6X20) | 2 шт. | — | |
|
| 39 | 09320-08028 | CUSHION (8X26X7) | 2 шт. | — | |
|
| 40 | 13760-40H00 | BRACKET, RH | 0 шт. | — | |
|
| 41 | 13770-40H00 | BRACKET, LH NO.1 | 0 шт. | — | |
|
| 42 | 13770-40H11 | BRACKET, LH NO.2 | 1 шт. | — | |
|
| 43 | 13770-40H20 | BRACKET, LH NO.3 | 1 шт. | — | |
|
| 44 | 09103-06509 | BOLT (6X30) | 0 шт. | — | |
|
| 45 | 13838-40H00 | SPACER | 0 шт. | — | |
|
| 46 | 09136-06167 | SCREW (6X35) | 2 шт. | — | |
|
| 47 | 13850-40H00 | TUBE, BREATHER | 0 шт. | — | |
|
| 48 | 09401-20405 | CLIP | 2 шт. | — | |
|
| 49 | 13650-41F10 | SENSOR,AIR TEMP | 1 шт. | — | |
|
| 50 | 13655-41F10 | O-RING | 0 шт. | — | |
|
| 51 | 03511-0516B | SCREW | 1 шт. | — | |
|
