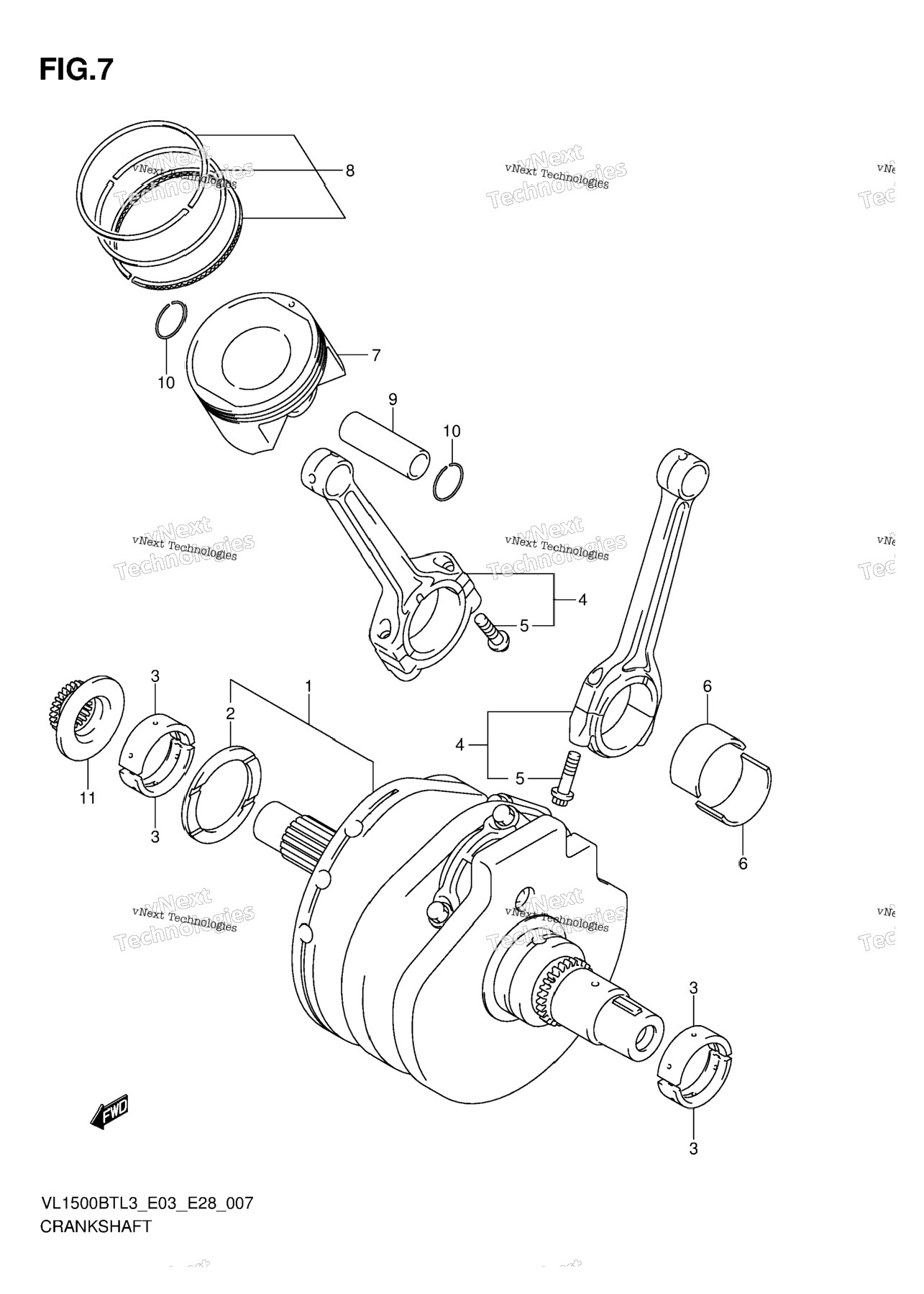

| 1 | 12000-40851 | CRANKSHAFT SET | 1 шт. | — | |
|
| 2 | 12228-40H00-0A0 | BEARING, CRANK THRUST (T:1.925-1.950) | 0 шт. | — | |
|
| 2 | 12228-40H00-0B0 | BEARING, CRANK THRUST (T:1.950-1.975) | 0 шт. | — | |
|
| 2 | 12228-40H00-0C0 | BEARING, CRANK THRUST (T:1.975-2.000) | 0 шт. | — | |
|
| 2 | 12228-40H00-0D0 | BEARING, CRANK THRUST (T:2.000-2.025) | 0 шт. | — | |
|
| 2 | 12228-40H00-0E0 | BEARING, CRANK THRUST (T:2.025-2.050) | 0 шт. | — | |
|
| 2 | 12228-40H00-0F0 | BEARING, CRANK THRUST (T:2.050-2.075) | 0 шт. | — | |
|
| 3 | 12229-40H00-0B0 | BEARING, CRANKSHAFT (BLACK) | 4 шт. | — | |
|
| 3 | 12229-40H00-0C0 | BEARING, CRANKSHAFT (BROWN) | 4 шт. | — | |
|
| 3 | 12229-40H00-0A0 | BEARING, CRANKSHAFT (GREEN) | 0 шт. | — | |
|
| 4 | 12160-40H00 | CONNROD ASSY | 2 шт. | — | |
|
| 5 | 12163-06G00 | BOLT | 4 шт. | — | |
|
| 6 | 12164-40H00-0B0 | BEARING, CRANK PIN (BLACK) | 4 шт. | — | |
|
| 6 | 12164-40H00-0C0 | BEARING, CRANK PIN (BROWN) | 0 шт. | — | |
|
| 6 | 12164-40H00-0A0 | BEARING, CRANK PIN (GREEN) | 4 шт. | — | |
|
| 6 | 12164-40H00-0D0 | BEARING, CRANK PIN (YELLOW) | 0 шт. | — | |
|
| 7 | 12111-40H10-0F0 | PISTON | 2 шт. | — | |
|
| 8 | 12140-40H01 | RING SET, PISTON | 2 шт. | — | |
|
| 9 | 12151-02F00 | PIN, PISTON | 2 шт. | — | |
|
| 10 | 09381-22002 | CIRCLIP | 4 шт. | — | |
|
| 11 | 12731-40H00 | SPROCKET, CAM CHAIN DRIVE (NT:23) | 0 шт. | — | |
|
