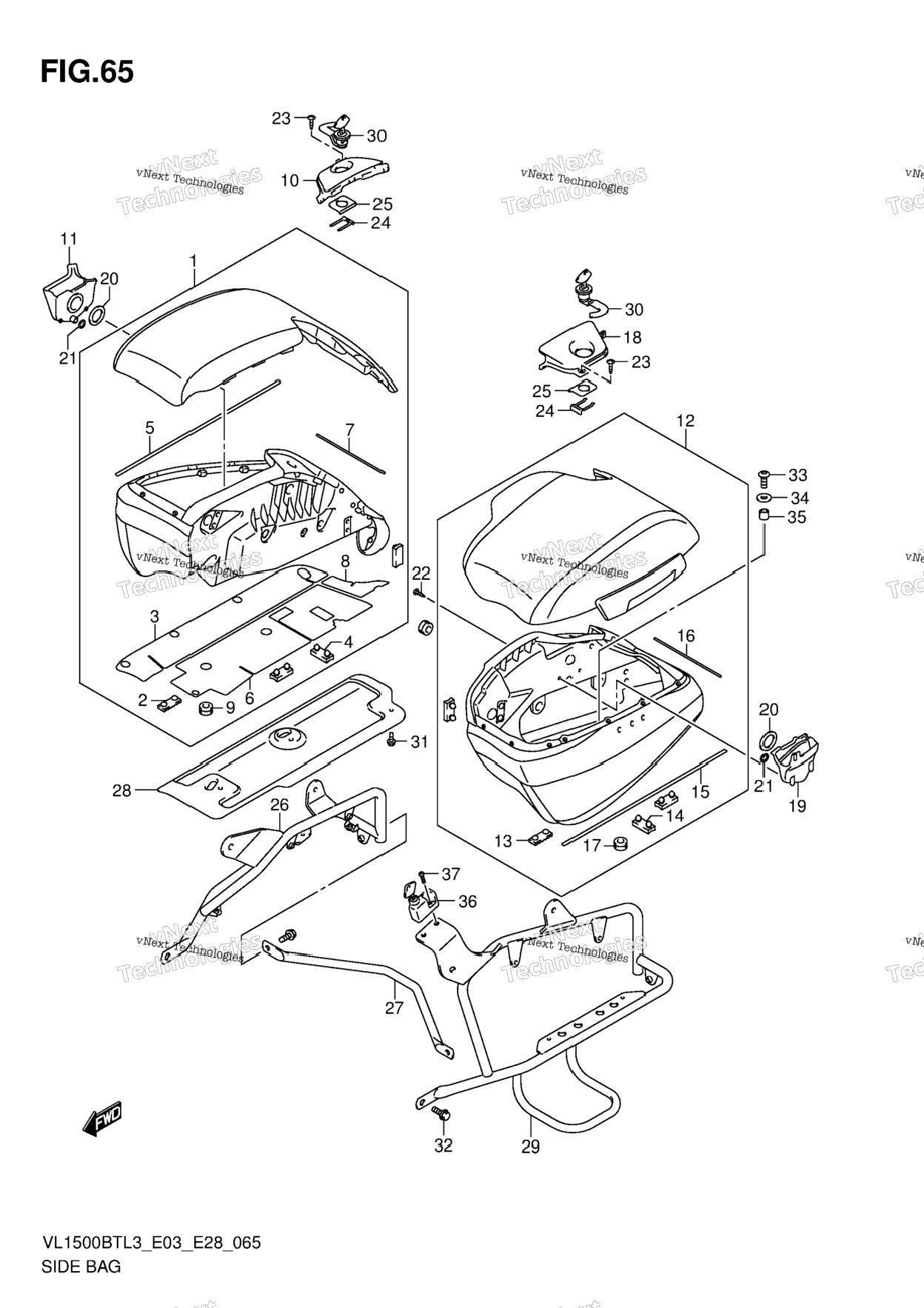

| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 95400-06J30 | BAG ASSY, SIDE RH | 1 шт. | — | |
|
| 2 | 45149-12C00 | CUSHION,SEAT (40X20X6) | 2 шт. | — | |
|
| 3 | 95413-06J00 | SHIELD, HEAT NO.1 | 1 шт. | — | |
|
| 4 | 95424-06J00 | CUSHION, BRACE NO.2 | 0 шт. | — | |
|
| 5 | 95439-06J00 | CUSHION, UPPER | 1 шт. | — | |
|
| 6 | 95513-06J00 | SHIELD, HEAT NO.2 | 1 шт. | — | |
|
| 7 | 95536-06J00 | CUSHION, LOWER | 1 шт. | — | |
|
| 8 | 95613-06J00 | SHIELD, HEAT NO.3 | 0 шт. | — | |
|
| 9 | 09320-11008 | CUSHION | 4 шт. | — | |
|
| 10 | 95418-06J00 | COVER, KEY CYLINDER RH | 1 шт. | — | |
|
| 11 | 95419-06J00 | TRAY, SIDE BAG RH | 1 шт. | — | |
|
| 12 | 95500-06J30 | BAG ASSY, SIDE LH | 1 шт. | — | |
|
| 13 | 45149-12C00 | CUSHION,SEAT (40X20X6) | 2 шт. | — | |
|
| 14 | 95424-06J00 | CUSHION, BRACE NO.2 | 0 шт. | — | |
|
| 15 | 95439-06J00 | CUSHION, UPPER | 1 шт. | — | |
|
| 16 | 95536-06J00 | CUSHION, LOWER | 1 шт. | — | |
|
| 17 | 09320-11008 | CUSHION | 4 шт. | — | |
|
| 18 | 95518-06J00 | COVER, KEY CYLINDER LH | 1 шт. | — | |
|
| 19 | 95519-06J00 | TRAY, SIDE BAG LH | 0 шт. | — | |
|
| 20 | 95533-06J00 | CUSHION, TRAY | 2 шт. | — | |
|
| 21 | 09280-12012 | O RING (D:2.4,ID:11.8) | 2 шт. | — | |
|
| 22 | 03541-0516A | SCREW | 4 шт. | — | |
|
| 23 | 03541-0520B | SCREW | 2 шт. | — | |
|
| 24 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 2 шт. | — | |
|
| 25 | 95425-06J00 | PLATE, SIDE BAG LOCK | 2 шт. | — | |
|
| 26 | 95470-06J00 | BRACE, SIDE BAG RH | 1 шт. | — | |
|
| 27 | 95481-06J00 | BRACE, SIDE BAG CENTER | 1 шт. | — | |
|
| 28 | 95482-06J00 | PLATE, HEAT SHIELD | 1 шт. | — | |
|
| 29 | 95570-06J00 | BRACE, SIDE BAG LH | 1 шт. | — | |
|
| 30 | 95700-06810 | LOCK SET, SIDE BAG | 2 шт. | — | |
|
| 31 | 01550-0612A | BOLT | 3 шт. | — | |
|
| 32 | 01550-0816B | BOLT | 4 шт. | — | |
|
| 33 | 95437-06J00 | BOLT, SIDE BAG | 8 шт. | — | |
|
| 34 | 09160-06154 | WASHER (6.5X20X1.6) | 8 шт. | — | |
|
| 35 | 09180-06120 | SPACER (6.5X11.5X12) | 8 шт. | — | |
|
| 36 | 95700-41821 | LOCK SET HELMET | 1 шт. | — | |
|
| 37 | 09139-06048 | SCREW (6X20) | 1 шт. | — | |
|
