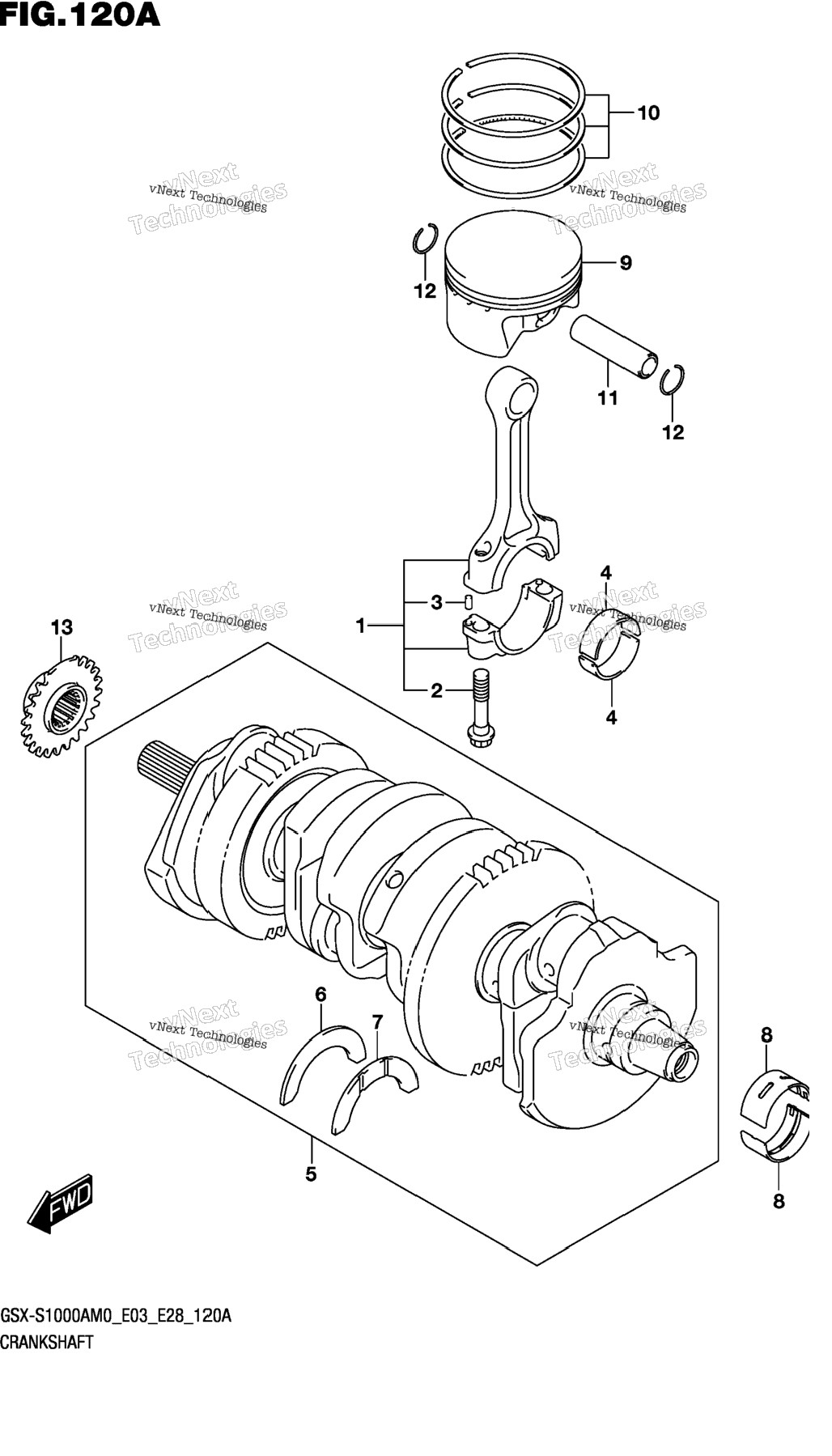

| 1 | 12160-04K10 | CONNROD ASSY | 4 шт. | — | |
|
| 2 | 12163-24F10 | .BOLT, CONNECTING ROD | 8 шт. | — | |
|
| 3 | 04221-04089 | .PIN | 8 шт. | — | |
|
| 4-1 | 12164-47H10-0A0 | BEARING, CRANK PIN GREEN | 8 шт. | — | |
|
| 4-2 | 12164-47H10-0B0 | BEARING, CRANK PIN BLACK | 8 шт. | — | |
|
| 4-3 | 12164-47H10-0C0 | BEARING, CRANK PIN BROWN | 8 шт. | — | |
|
| 4-4 | 12164-47H10-0D0 | BEARING, CRANK PIN YELLOW | 8 шт. | — | |
|
| 5 | 12000-48851 | CRANKSHAFT SET | 1 шт. | — | |
|
| 7-1 | 12228-48B00-0B0 | .BEARING,CRANK THRUST | 1 шт. | — | |
|
| 7-2 | 12228-48B00-0C0 | .BEARING,CRANK THRUST | 1 шт. | — | |
|
| 7-3 | 12228-48B00-0D0 | .BEARING,CRANK THRUST | 1 шт. | — | |
|
| 7-4 | 12228-48B00-0E0 | .BEARING,CRANK THRUST | 1 шт. | — | |
|
| 7-4 | 12228-48B00-0E0 | .BEARING,CRANK THRUST GREEN | 1 шт. | — | |
|
| 7-5 | 12228-48B00-0F0 | .BEARING,CRANK THRUST | 1 шт. | — | |
|
| 7-6 | 12228-48B00-0G0 | .BEARING,CRANK THRUST | 1 шт. | — | |
|
| 7-7 | 12228-48B00-0H0 | .BEARING,CRANK THRUST | 1 шт. | — | |
|
| 8-1 | 12229-04K00-0A0 | BEARING, CRANKSHAFT GREEN | 10 шт. | — | |
|
| 8-2 | 12229-04K00-0B0 | BEARING, CRANKSHAFT BLACK | 10 шт. | — | |
|
| 8-3 | 12229-04K00-0C0 | BEARING, CRANKSHAFT BROWN | 10 шт. | — | |
|
| 8-4 | 12229-04K00-0D0 | BEARING, CRANKSHAFT YELLOW | 10 шт. | — | |
|
| 8-5 | 12229-04K00-0E0 | BEARING, CRANKSHAFT BLUE | 10 шт. | — | |
|
| 9 | 12111-04K00-0F0 | PISTON | 4 шт. | — | |
|
| 10 | 12140-04K00 | RING SET, PISTON | 4 шт. | — | |
|
| 11 | 12151-04K00 | PIN, PISTON | 4 шт. | — | |
|
| 12 | 09381-16001 | CIRCLIP (OD:18) | 8 шт. | — | |
|
| 13 | 12731-29G00 | SPROCKET, CAM CHAIN DRIVE 7) | 1 шт. | — | |
|
