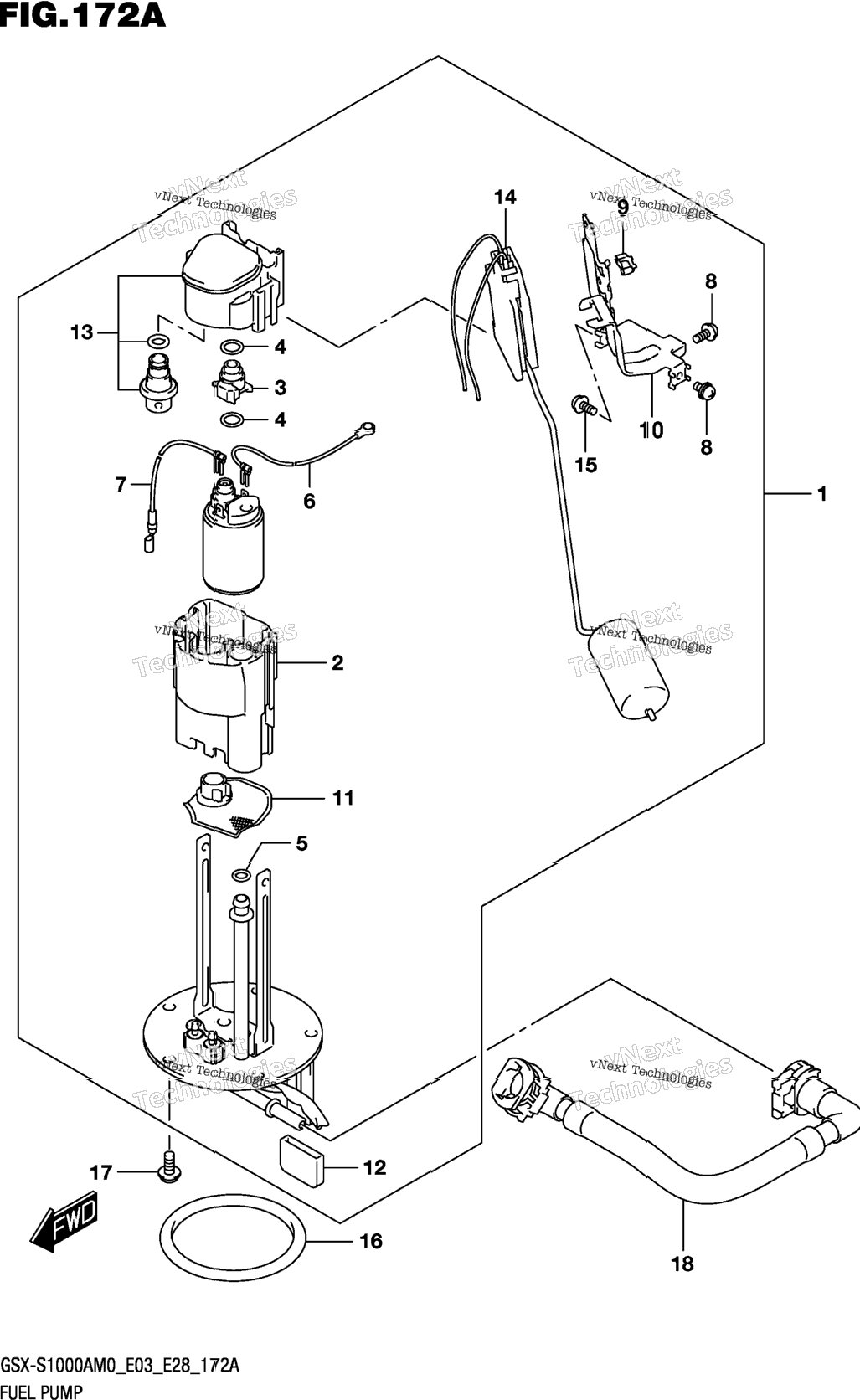

| 1 | 15100-04K00 | PUMP ASSY,FUEL | 1 шт. | — | |
|
| 2 | 15111-27G00 | .CUP,RESERVOIR | 1 шт. | — | |
|
| 3 | 15112-05H00 | .JOINT | 1 шт. | — | |
|
| 4 | 15113-05H00 | .O-RING | 1 шт. | — | |
|
| 5 | 15113-35F00 | .O-RING | 2 шт. | — | |
|
| 6 | 15114-14J00 | .WIRE,EARTH | 0 шт. | — | |
|
| 7 | 15115-08J00 | .WIRE, LEAD | 1 шт. | — | |
|
| 8 | 15116-10F00 | .SCREW | 2 шт. | — | |
|
| 9 | 15119-08J00 | .SADDLE, EDGE | 0 шт. | — | |
|
| 10 | 15181-04K00 | .BRACKET, FUEL GAUGE | 1 шт. | — | |
|
| 11 | 15420-31J00 | .STRAINER, FUEL PUMP | 1 шт. | — | |
|
| 12 | 15583-18H00 | .CAP, STAY | 0 шт. | — | |
|
| 13 | 15610-14J00 | .REGULATOR,FUEL | 1 шт. | — | |
|
| 14 | 34810-04K00 | .GAUGE ASSY,FUEL LEVEL SENDER | 1 шт. | — | |
|
| 15 | 15116-31J00 | .SCREW | 0 шт. | — | |
|
| 16 | 15201-35F00 | O RING,FUEL PUMP | 1 шт. | — | |
|
| 17 | 07120-0612A | BOLT | 5 шт. | — | |
|
| 18 | 15810-04K01 | HOSE, FUEL | 1 шт. | — | |
|
