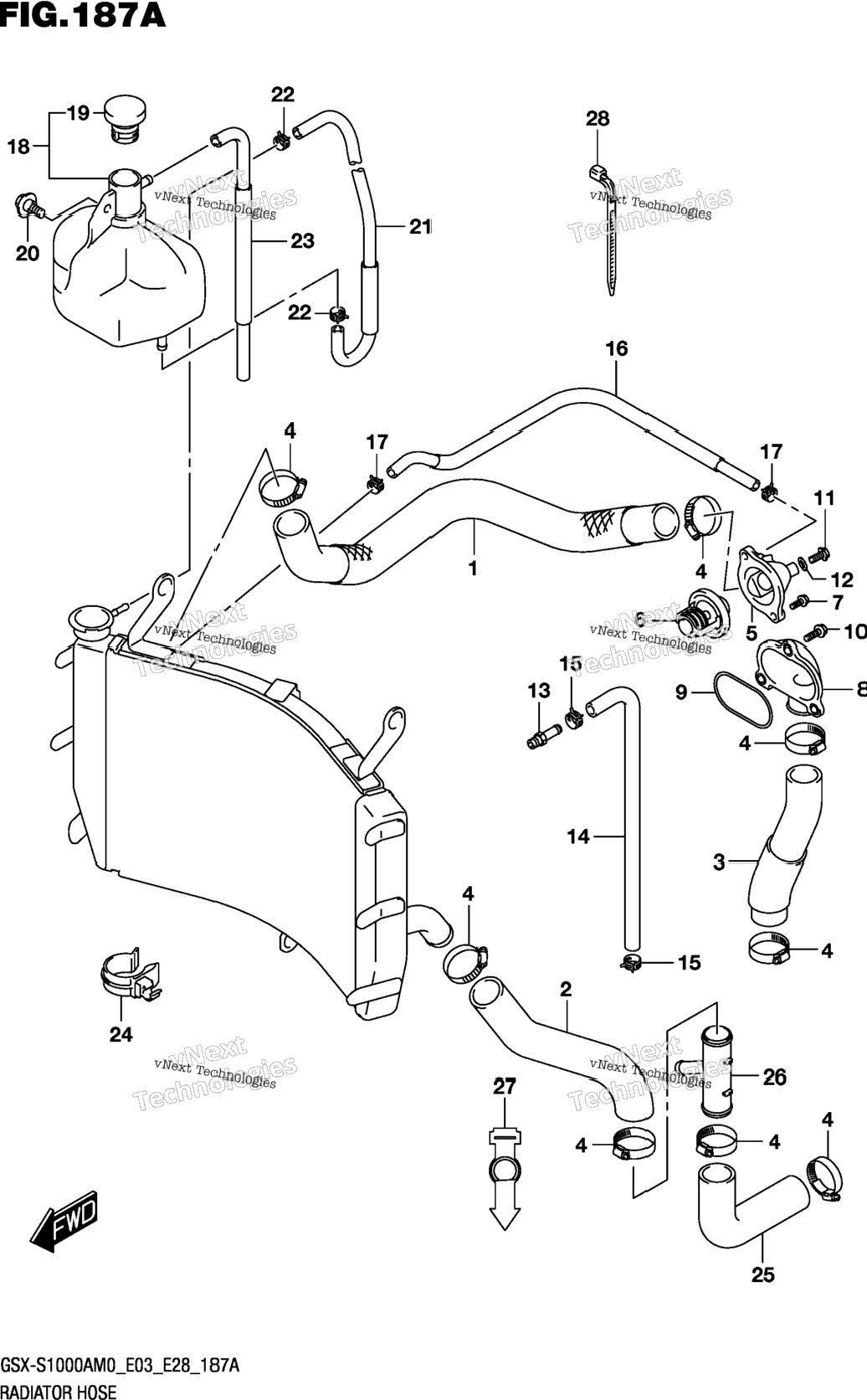

| 1 | 17851-04K10 | HOSE, RDTR INLET | 1 шт. | — | |
|
| 2 | 17852-04K00 | HOSE, RDTR OUTLET | 1 шт. | — | |
|
| 3 | 17853-40F10 | HOSE, CYLINDER INLET | 1 шт. | — | |
|
| 4 | 09402-35501 | CLAMP | 8 шт. | — | |
|
| 5 | 17661-35F00 | COVER, THERMOSTAT | 1 шт. | — | |
|
| 6 | 17670-06G61 | THERMOSTAT, WATER | 1 шт. | — | |
|
| 7 | 01547-0620A | BOLT | 2 шт. | — | |
|
| 8 | 17861-33E20 | CONNECTOR, CYLINDER WATER | 1 шт. | — | |
|
| 9 | 17863-33E00 | O RING | 1 шт. | — | |
|
| 10 | 01547-0620A | BOLT | 3 шт. | — | |
|
| 11 | 17568-50F00 | UNION BOLT,AIR VENT | 1 шт. | — | |
|
| 12 | 09168-06026 | GASKET (6.4X11.5X0.84) | 1 шт. | — | |
|
| 13 | 09362-09011 | UNION | 1 шт. | — | |
|
| 14 | 17854-04K10 | HOSE, WATER BYPASS | 1 шт. | — | |
|
| 15 | 09401-12414 | CLAMP | 2 шт. | — | |
|
| 16 | 17857-04K00 | HOSE,WATER AIR BLEED | 1 шт. | — | |
|
| 17 | 09401-10409 | CLIP (ID:10.5,H:8) | 2 шт. | — | |
|
| 18 | 17910-04K00 | TANK ASSY, RESERVOIR | 1 шт. | — | |
|
| 19 | 17931-31J00 | .CAP,WATER RESERVOIR TANK | 1 шт. | — | |
|
| 20 | 09111-06085 | BOLT (6X12) | 1 шт. | — | |
|
| 21 | 17981-04K01 | HOSE,RSVR TANK INLET | 0 шт. | — | |
|
| 22 | 09401-08411 | CLIP (ID:8.6) | 2 шт. | — | |
|
| 23 | 17982-04K00 | HOSE, RSVR TANK OVER FLOW | 1 шт. | — | |
|
| 24 | 09408-00321 | CLAMP | 0 шт. | — | |
|
| 25 | 17855-04K00 | HOSE, RDTR OUTLET NO.2 | 1 шт. | — | |
|
| 26 | 17881-04K00 | PIPE, WATER HOSE JOINT | 1 шт. | — | |
|
| 27 | 17891-04K00 | BAND, WATER HOSE | 0 шт. | — | |
|
| 28 | 09407-18402 | CLAMP (L:165) | 1 шт. | — | |
|
