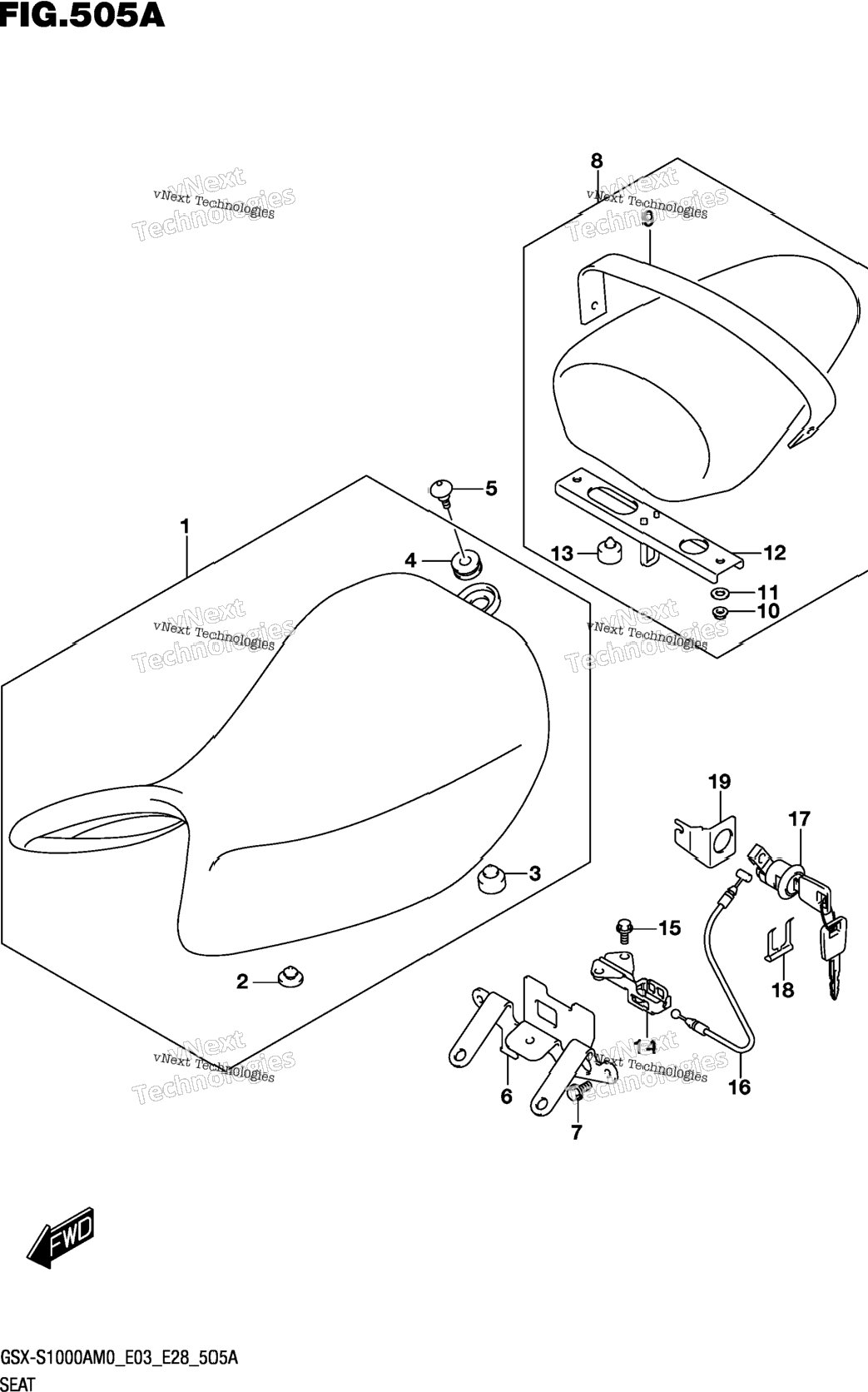

| 1 | 45100-04K01-DW2 | SEAT ASSY (BLACK) | 1 шт. | — | |
|
| 2 | 09329-10001 | CUSHION | 2 шт. | — | |
|
| 3 | 09321-10011 | .CUSHION | 4 шт. | — | |
|
| 4 | 45148-04K00 | CUSHION, SEAT MOUNT | 1 шт. | — | |
|
| 5 | 09139-06193 | SCREW (6X20) | 1 шт. | — | |
|
| 6 | 45120-04K10 | BRACKET,SEAT | 0 шт. | — | |
|
| 7 | 01550-0612A | BOLT | 2 шт. | — | |
|
| 8 | 45300-04K01-DW2 | SEAT ASSY, PILLION (BLACK) | 1 шт. | — | |
|
| 9 | 45380-04K01-P3H | .BAND,PILLION SEAT GRIP (BLAC | 1 шт. | — | |
|
| 10 | 08316-1006A | NUT (6X12) | 2 шт. | — | |
|
| 11 | 09160-06129 | .WASHER (6.5X16X1) | 2 шт. | — | |
|
| 12 | 45291-04K00 | .PLATE, SEAT LOCK | 1 шт. | — | |
|
| 13 | 45148-20G00 | .CUSHION, SEAT MOUNT RR | 2 шт. | — | |
|
| 14 | 45220-04K00 | BRACKET,STRIKER SUPPORT | 1 шт. | — | |
|
| 15 | 01550-0612A | BOLT | 2 шт. | — | |
|
| 16 | 45280-04K00 | CABLE,SEAT LOCK | 0 шт. | — | |
|
| 17 | 95700-14810 | LOCK SET,SEAT | 1 шт. | — | |
|
| 18 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
| 19 | 45288-14F00 | GUIDE,SEAT LOCK CABLE | 1 шт. | — | |
|
