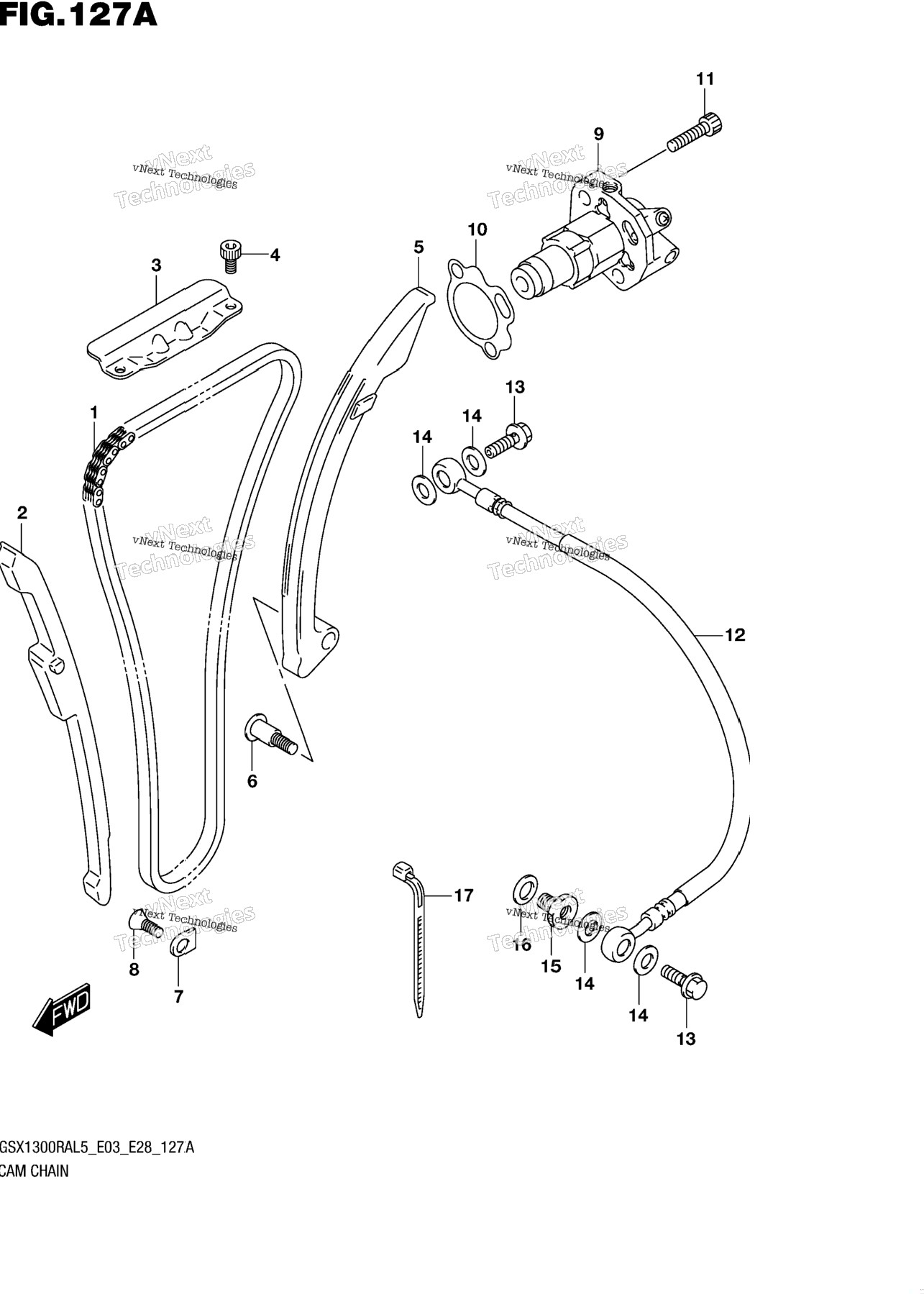

| 1 | 12760-24F01 | CHAIN, CAM SHAFT DRIVE (128LE) | 1 шт. | — | |
|
| 2 | 12771-15H00 | GUIDE, CAM CHAIN NO.1 | 1 шт. | — | |
|
| 3 | 12782-24F01 | GUIDE, CAM CHAIN NO.2 | 1 шт. | — | |
|
| 4 | 07130-0612A | BOLT | 2 шт. | — | |
|
| 5 | 12811-15H00 | TENSIONER, CAM CHAIN | 1 шт. | — | |
|
| 6 | 12812-31G00 | BOLT,CAM CHAIN TENSIONER | 1 шт. | — | |
|
| 7 | 12773-24F00 | RETAINER CAM CHAIN GUIDE NO.1 | 1 шт. | — | |
|
| 8 | 02122-0612A | SCREW | 1 шт. | — | |
|
| 9 | 12830-15H00 | ADJUSTER ASSY, TENSIONER | 1 шт. | — | |
|
| 10 | 12837-02H00 | GASKET, TENSIONER ADJUSTER | 1 шт. | — | |
|
| 11 | 07130-0625A | BOLT | 2 шт. | — | |
|
| 12 | 12835-15H00 | HOSE,CAM CHAIN TNSN ADJ OIL | 1 шт. | — | |
|
| 13 | 12838-15H00 | BOLT,ADJ OIL HOSE UNION | 2 шт. | — | |
|
| 14 | 09168-08034 | GASKET (7.8X13.5X1.2) | 4 шт. | — | |
|
| 15 | 12839-15H00 | PLUG | 1 шт. | — | |
|
| 16 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 17 | 09407-18402 | CLAMP (L:165) | 1 шт. | — | |
|
