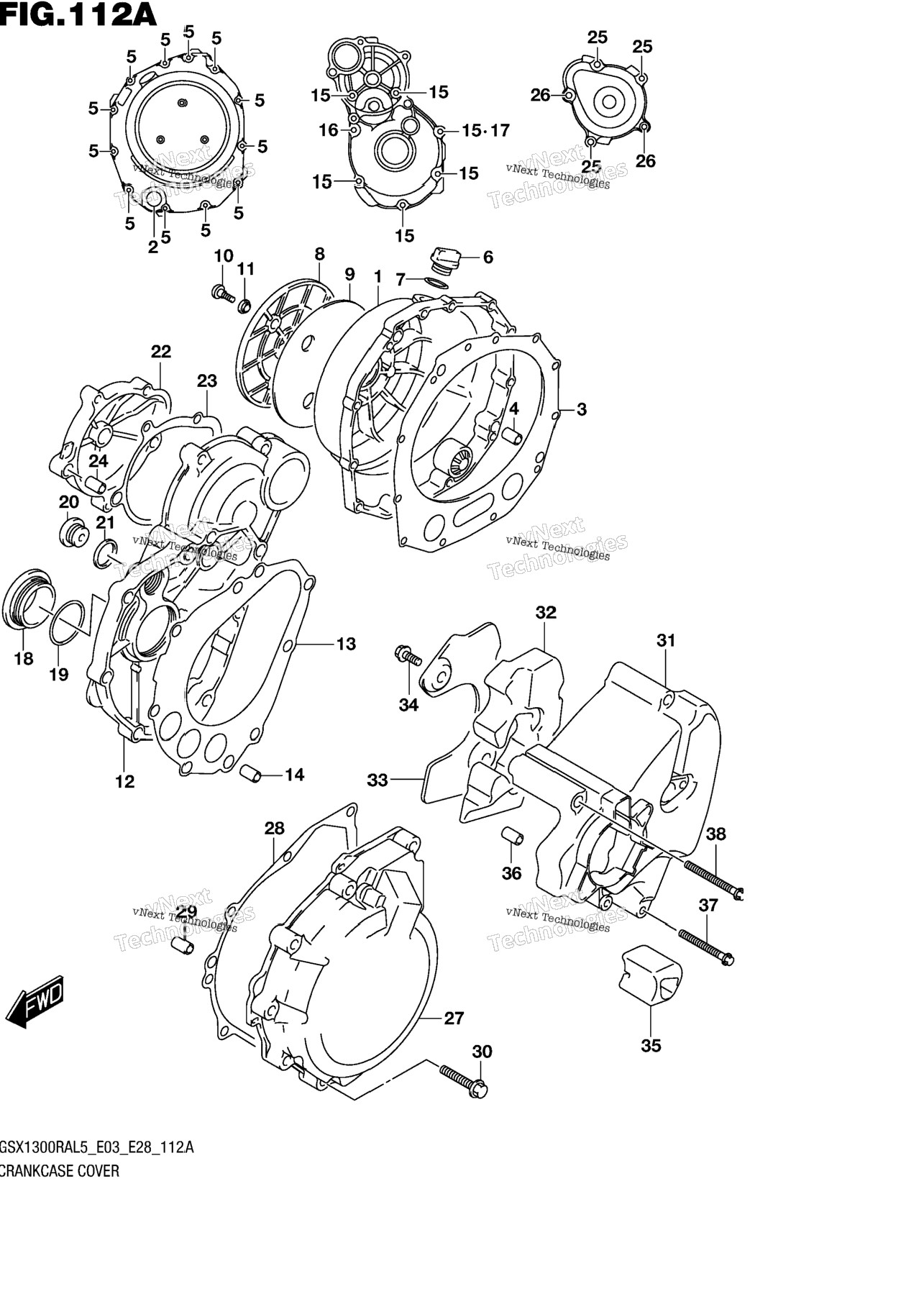

| 1 | 11340-24F01 | COVER, CLUTCH | 1 шт. | — | |
|
| 2 | 11971-33210 | .LENS,OIL LEVEL CHECK | 1 шт. | — | |
|
| 3 | 11482-24F00 | GASKET, CLUTCH COVER | 1 шт. | — | |
|
| 4 | 04211-09189 | PIN | 2 шт. | — | |
|
| 6 | 11971-25D00 | PLUG,ENGINE OIL FILLER | 1 шт. | — | |
|
| 7 | 09280-17003 | O-RING (D:3.1,ID:16.8) | 1 шт. | — | |
|
| 8 | 11371-24F00 | COVER, CLUTCH OUTER | 1 шт. | — | |
|
| 9 | 11372-24F00 | CUSHION, CLUTCH OUTER COVER | 1 шт. | — | |
|
| 10 | 09139-06107 | SCREW (6X16) | 3 шт. | — | |
|
| 11 | 11373-24F00 | WASHER, CL OUTER COVER SCREW | 3 шт. | — | |
|
| 12 | 11380-24F20 | COVER,STARTER CLUTCH | 1 шт. | — | |
|
| 13 | 11491-24F01 | GASKET, STARTER CLUTCH COVER | 1 шт. | — | |
|
| 17 | 09168-06023 | GASKET (5.8X13X1.2) | 1 шт. | — | |
|
| 18 | 09259-36021 | PLUG | 1 шт. | — | |
|
| 19 | 09280-33004 | O-RING (D:3.1,ID:32.7) | 1 шт. | — | |
|
| 20 | 09248-16012 | PLUG (16X8) | 1 шт. | — | |
|
| 21 | 09168-16002 | GASKET (16X22X2) | 1 шт. | — | |
|
| 22 | 11382-24F20 | CAP,STARTER IDLE GEAR | 1 шт. | — | |
|
| 23 | 11492-24F00 | GASKET, STARTER IDLE GEAR CAP | 1 шт. | — | |
|
| 25 | 09103-06212 | BOLT (6X25) | 6 шт. | — | |
|
| 25 | 09103-06212 | BOLT (6X25) | 3 шт. | — | |
|
| 26 | 09103-06214 | BOLT (6X35) | 2 шт. | — | |
|
| 26 | 09103-06214 | BOLT (6X35) | 1 шт. | — | |
|
| 27 | 11351-24F00 | COVER, MAGNETO | 1 шт. | — | |
|
| 28 | 11483-24F00 | GASKET, MAGNETO COVER | 1 шт. | — | |
|
| 30 | 09103-06213 | BOLT (6X30) | 12 шт. | — | |
|
| 30 | 09103-06213 | BOLT (6X30) | 9 шт. | — | |
|
| 31 | 11361-15H00 | COVER, ENGINE SPROCKET | 1 шт. | — | |
|
| 32 | 11362-15H00 | DAMPER, ENGINE SPROCKET COVER | 1 шт. | — | |
|
| 33 | 11363-15H00 | PLATE, ENGINE SPROCKET COVER | 1 шт. | — | |
|
| 34 | 09103-06172 | BOLT (6X12) | 2 шт. | — | |
|
| 35 | 11364-15H00 | PROTECTOR, ENGINE SPRKT COVER | 1 шт. | — | |
|
| 36 | 04211-09149 | PIN | 2 шт. | — | |
|
| 36 | 04211-09149 | PIN | 2 шт. | — | |
|
| 36 | 04211-09149 | PIN | 2 шт. | — | |
|
| 36 | 04211-09149 | PIN | 2 шт. | — | |
|
| 37 | 09103-06216 | BOLT (6X55) | 2 шт. | — | |
|
| 38 | 09103-06239 | BOLT (6X65) | 2 шт. | — | |
|
