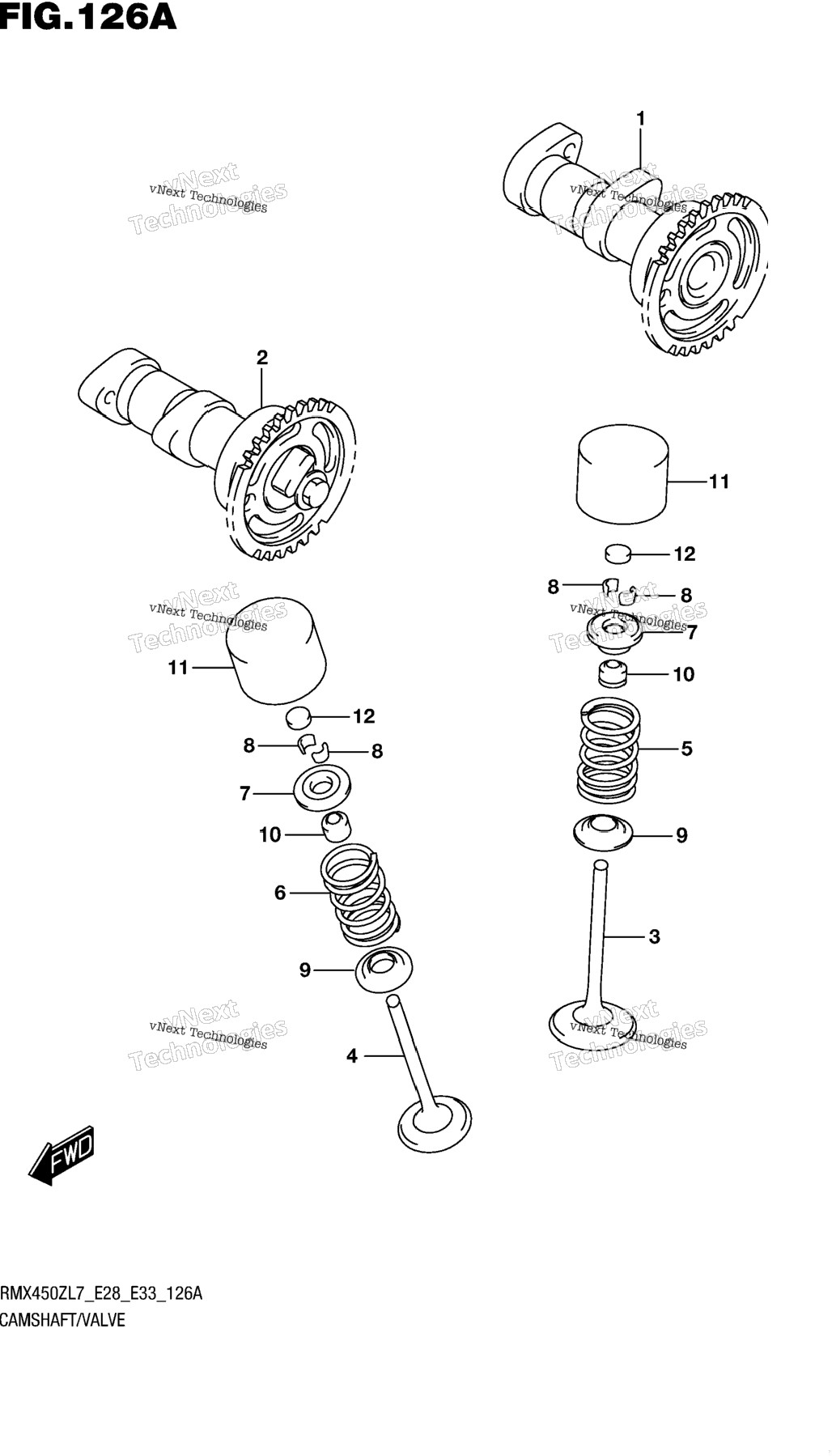

| 1 | 12710-02J00 | CAMSHAFT, INTAKE | 1 шт. | — | |
|
| 2 | 12720-02J00 | CAMSHAFT, EXHAUST | 1 шт. | — | |
|
| 3 | 12911-28H00 | VALVE, INTAKE | 2 шт. | — | |
|
| 4 | 12912-28H00 | VALVE, EXHAUST | 2 шт. | — | |
|
| 5 | 12921-28H00 | SPRING, VALVE INTAKE | 2 шт. | — | |
|
| 6 | 12922-28H00 | SPRING, VALVE EXHAUST | 2 шт. | — | |
|
| 7 | 12931-02F10 | RETAINER,VALVE SPRING | 4 шт. | — | |
|
| 8 | 12932-24400 | COTTER,VALVE | 8 шт. | — | |
|
| 9 | 12933-38400 | SEAT,VALVE SPRING | 4 шт. | — | |
|
| 10 | 09289-05015 | OIL SEAL (5.5X11X8.2) | 4 шт. | — | |
|
| 11 | 12891-02F00 | TAPPET | 4 шт. | — | |
|
| 12-1 | 12892-35G00-150 | SHIM, TAPPET (T:1.50) | 4 шт. | — | |
|
| 12-10 | 12892-35G00-172 | SHIM, TAPPET (T:1.72) | 0 шт. | — | |
|
| 12-11 | 12892-35G00-175 | SHIM, TAPPET (T:1.75) | 0 шт. | — | |
|
| 12-12 | 12892-35G00-178 | SHIM, TAPPET (T:1.78) | 0 шт. | — | |
|
| 12-13 | 12892-35G00-180 | SHIM, TAPPET (T:1.80) | 4 шт. | — | |
|
| 12-14 | 12892-35G00-182 | SHIM, TAPPET (T:1.82) | 0 шт. | — | |
|
| 12-15 | 12892-35G00-185 | SHIM, TAPPET (T:1.85) | 0 шт. | — | |
|
| 12-16 | 12892-35G00-188 | SHIM, TAPPET (T:1.88) | 0 шт. | — | |
|
| 12-17 | 12892-35G00-190 | SHIM, TAPPET (T:1.90) | 0 шт. | — | |
|
| 12-18 | 12892-35G00-192 | SHIM, TAPPET (T:1.92) | 0 шт. | — | |
|
| 12-19 | 12892-35G00-195 | SHIM, TAPPET (T:1.95) | 0 шт. | — | |
|
| 12-2 | 12892-35G00-152 | SHIM, TAPPET (T:1.52) | 0 шт. | — | |
|
| 12-20 | 12892-35G00-198 | SHIM, TAPPET (T:1.98) | 4 шт. | — | |
|
| 12-21 | 12892-35G00-200 | SHIM, TAPPET (T:2.00) | 0 шт. | — | |
|
| 12-22 | 12892-35G00-202 | SHIM, TAPPET (T:2.02) | 0 шт. | — | |
|
| 12-23 | 12892-35G00-205 | SHIM, TAPPET (T:2.05) | 0 шт. | — | |
|
| 12-24 | 12892-35G00-208 | SHIM, TAPPET (T:2.08) | 0 шт. | — | |
|
| 12-25 | 12892-35G00-210 | SHIM, TAPPET (T:2.10) | 4 шт. | — | |
|
| 12-26 | 12892-35G00-212 | SHIM, TAPPET (T:2.12) | 0 шт. | — | |
|
| 12-27 | 12892-35G00-215 | SHIM, TAPPET (T:2.15) | 0 шт. | — | |
|
| 12-28 | 12892-35G00-218 | SHIM, TAPPET (T:2.18) | 0 шт. | — | |
|
| 12-29 | 12892-35G00-220 | SHIM, TAPPET (T:2.20) | 0 шт. | — | |
|
| 12-3 | 12892-35G00-155 | SHIM, TAPPET (T:1.55) | 0 шт. | — | |
|
| 12-30 | 12892-35G00-222 | SHIM, TAPPET (T:2.22) | 0 шт. | — | |
|
| 12-31 | 12892-35G00-225 | SHIM, TAPPET (T:2.25) | 4 шт. | — | |
|
| 12-32 | 12892-35G00-228 | SHIM, TAPPET (T:2.28) | 0 шт. | — | |
|
| 12-33 | 12892-41C00-230 | SHIM, TAPPET (T:2.30) | 4 шт. | — | |
|
| 12-34 | 12892-41C00-232 | SHIM, TAPPET (T:2.32) | 0 шт. | — | |
|
| 12-35 | 12892-41C00-235 | SHIM, TAPPET (T:2.35) | 4 шт. | — | |
|
| 12-36 | 12892-41C00-238 | SHIM, TAPPET (T:2.38) | 4 шт. | — | |
|
| 12-37 | 12892-41C00-240 | SHIM, TAPPET (T:2.40) | 4 шт. | — | |
|
| 12-38 | 12892-41C00-242 | SHIM, TAPPET (T:2.42) | 4 шт. | — | |
|
| 12-39 | 12892-41C00-245 | SHIM, TAPPET (T:2.45) | 4 шт. | — | |
|
| 12-4 | 12892-35G00-158 | SHIM, TAPPET (T:1.58) | 0 шт. | — | |
|
| 12-40 | 12892-41C00-248 | SHIM, TAPPET (T:2.48) | 4 шт. | — | |
|
| 12-41 | 12892-41C00-250 | SHIM, TAPPET (T:2.50) | 4 шт. | — | |
|
| 12-42 | 12892-41C00-252 | SHIM, TAPPET (T:2.52) | 0 шт. | — | |
|
| 12-43 | 12892-41C00-255 | SHIM, TAPPET (T:2.55) | 4 шт. | — | |
|
| 12-44 | 12892-41C00-258 | SHIM, TAPPET (T:2.58) | 0 шт. | — | |
|
| 12-45 | 12892-41C00-260 | SHIM, TAPPET (T:2.60) | 4 шт. | — | |
|
| 12-46 | 12892-41C00-262 | SHIM, TAPPET (T:2.62) | 0 шт. | — | |
|
| 12-47 | 12892-41C00-265 | SHIM, TAPPET (T:2.65) | 4 шт. | — | |
|
| 12-48 | 12892-41C00-268 | SHIM, TAPPET (T:2.68) | 0 шт. | — | |
|
| 12-49 | 12892-41C00-270 | SHIM, TAPPET (T:2.70) | 4 шт. | — | |
|
| 12-5 | 12892-35G00-160 | SHIM, TAPPET (T:1.60) | 0 шт. | — | |
|
| 12-50 | 12892-41C00-272 | SHIM, TAPPET (T:2.72) | 0 шт. | — | |
|
| 12-51 | 12892-41C00-275 | SHIM, TAPPET (T:2.75) | 4 шт. | — | |
|
| 12-52 | 12892-41C00-278 | SHIM, TAPPET (T:2.78) | 0 шт. | — | |
|
| 12-53 | 12892-41C00-280 | SHIM, TAPPET (T:2.80) | 4 шт. | — | |
|
| 12-54 | 12892-41C00-282 | SHIM, TAPPET (T:2.82) | 0 шт. | — | |
|
| 12-55 | 12892-41C00-285 | SHIM, TAPPET (T:2.85) | 4 шт. | — | |
|
| 12-56 | 12892-41C00-288 | SHIM, TAPPET (T:2.88) | 0 шт. | — | |
|
| 12-57 | 12892-41C00-290 | SHIM, TAPPET (T:2.90) | 4 шт. | — | |
|
| 12-58 | 12892-41C00-292 | SHIM, TAPPET (T:2.92) | 0 шт. | — | |
|
| 12-59 | 12892-41C00-295 | SHIM, TAPPET (T:2.95) | 4 шт. | — | |
|
| 12-6 | 12892-35G00-162 | SHIM, TAPPET (T:1.62) | 0 шт. | — | |
|
| 12-60 | 12892-41C00-298 | SHIM, TAPPET (T:2.98) | 0 шт. | — | |
|
| 12-61 | 12892-41C00-300 | SHIM, TAPPET (T:3.00) | 4 шт. | — | |
|
| 12-7 | 12892-35G00-165 | SHIM, TAPPET (T:1.65) | 4 шт. | — | |
|
| 12-8 | 12892-35G00-168 | SHIM, TAPPET (T:1.68) | 0 шт. | — | |
|
| 12-9 | 12892-35G00-170 | SHIM, TAPPET (T:1.70) | 0 шт. | — | |
|
| 13 | 12800-35820 | SHIM SET,TAPPET (5PCS. EACH) | 0 шт. | — | |
|
| 13 | 12800-35820 | SHIM SET,TAPPET (5PCS. EACH) NOT ILLUSTRATED | 0 шт. | — | |
|
| 13 | 12800-35820 | SHIM SET,TAPPET (5PCS. EACH) OPT | 0 шт. | — | |
|
| 14 | 99000-69471 | .CASE,TAPPET SHIM NOT ILLUSTRATED | 0 шт. | — | |
|
| 14 | 99000-69471 | .CASE, TAPPET SHIM OPT | 1 шт. | — | |
|
