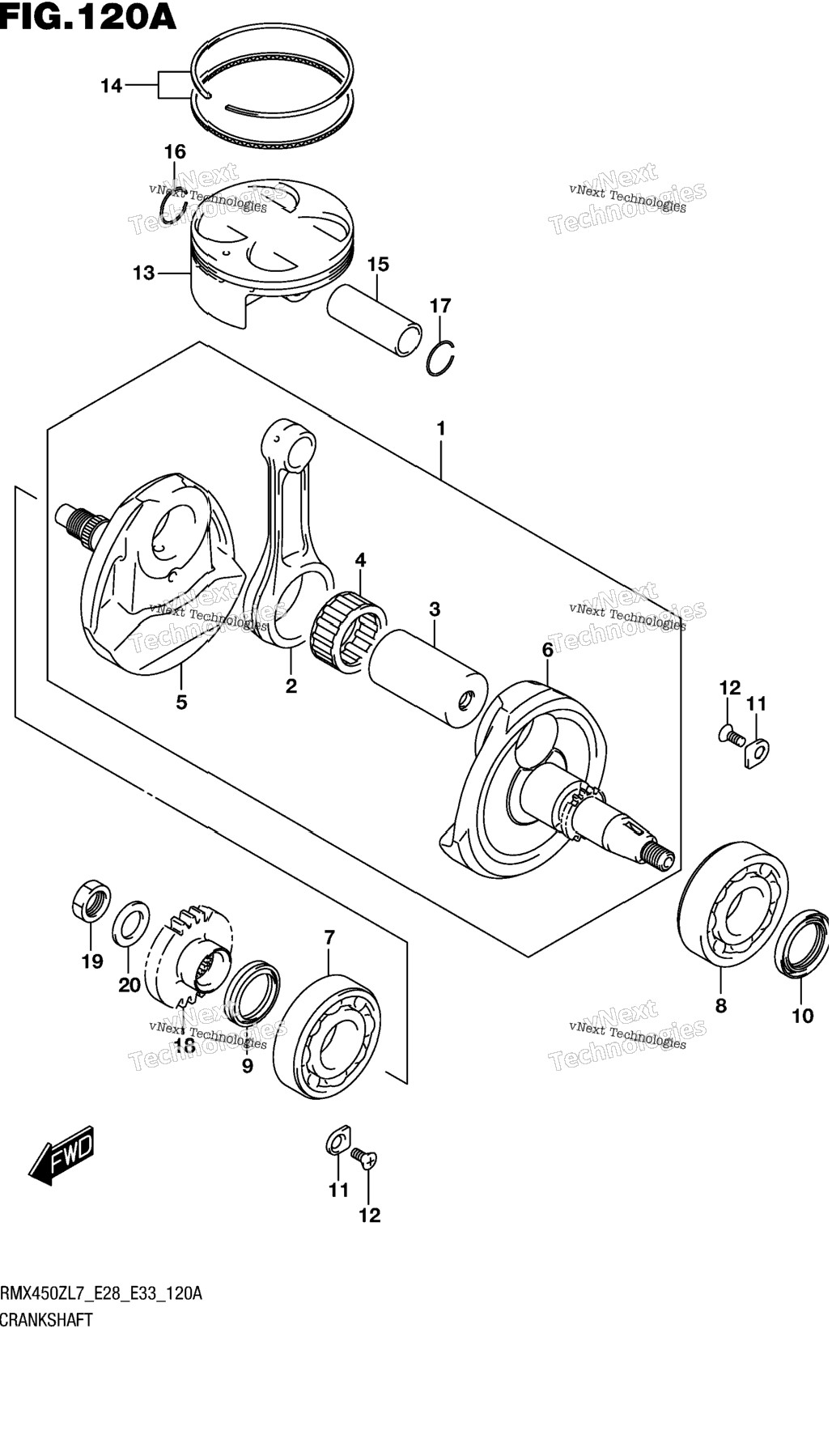

| 1 | 12200-02J10 | CRANKSHAFT ASSY | 1 шт. | — | |
|
| 2 | 12160-28H00-0B0 | .ROD, CONNECTING | 1 шт. | — | |
|
| 3 | 12210-35G03 | .PIN | 1 шт. | — | |
|
| 4 | 09263-34014-0B0 | .BEARING (34X42X20) | 1 шт. | — | |
|
| 5 | 12220-02J00 | .CRANKSHAFT, RH | 0 шт. | — | |
|
| 6 | 12261-02J00 | .CRANKSHAFT, LH | 0 шт. | — | |
|
| 7 | 09262-30115 | BEARING (30X72X19) RH | 1 шт. | — | |
|
| 8 | 09262-32017 | BEARING (32X75X20) LH | 1 шт. | — | |
|
| 9 | 09283-30061 | OIL SEAL (30X40X7) RH | 1 шт. | — | |
|
| 10 | 09283-32037 | OIL SEAL (32X47X6) LH | 1 шт. | — | |
|
| 11 | 24741-20A00 | RETAINER | 4 шт. | — | |
|
| 12 | 09126-06011 | SCREW (6X12) | 4 шт. | — | |
|
| 13 | 12111-28H10-0F0 | PISTON | 1 шт. | — | |
|
| 14 | 12140-28820 | RING SET, PISTON | 1 шт. | — | |
|
| 15 | 12151-35G01 | PIN, PISTON | 1 шт. | — | |
|
| 16 | 09381-19001 | SNAP RING | 1 шт. | — | |
|
| 17 | 09381-19005 | CIRCLIP | 1 шт. | — | |
|
| 18 | 21111-28H00 | GEAR, PRIMARY DRIVE (NT:24) | 0 шт. | — | |
|
| 19 | 09140-16036 | NUT | 1 шт. | — | |
|
| 20 | 09164-16002 | WASHER | 1 шт. | — | |
|
