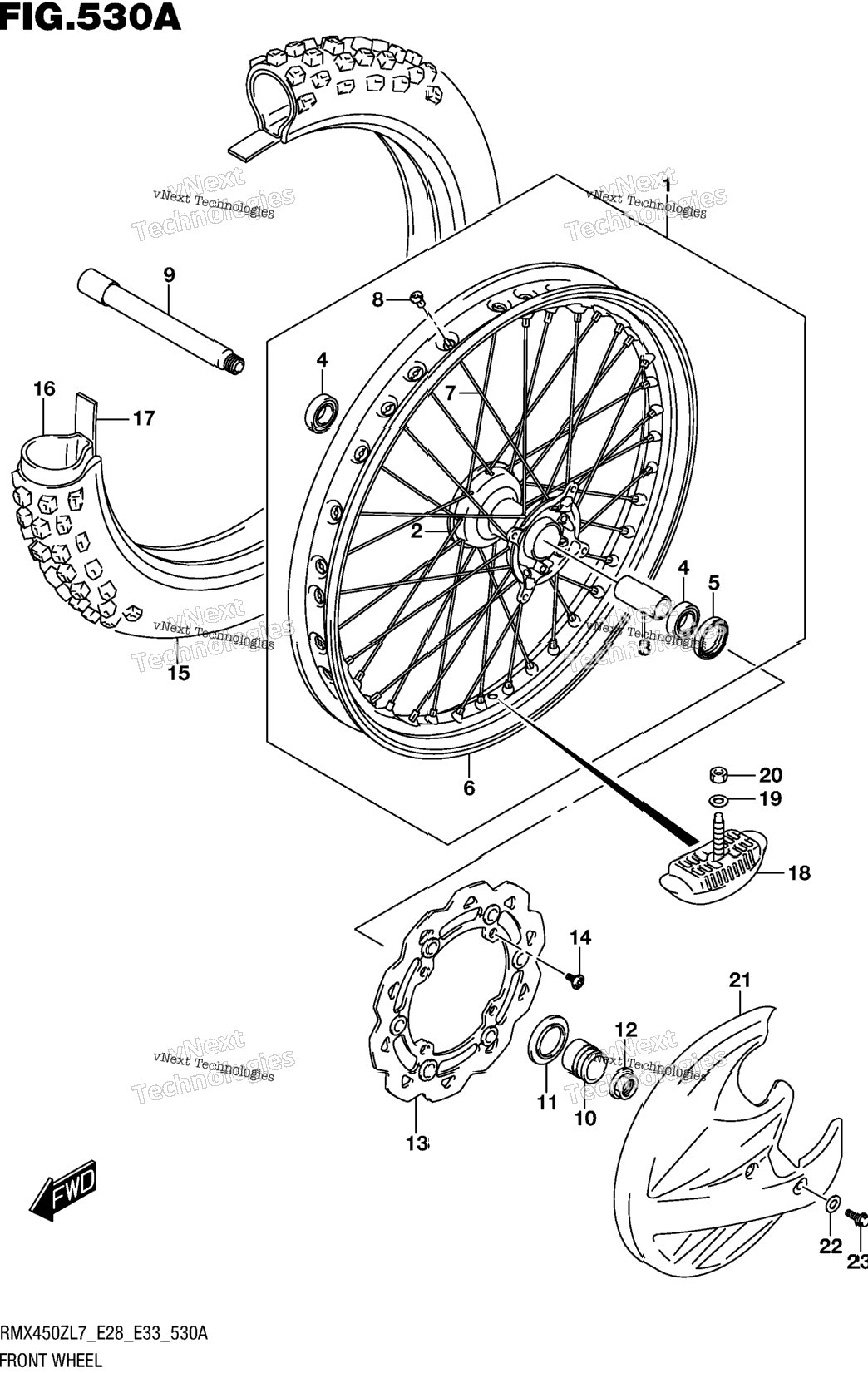

| 1 | 54100-02J10 | WHEEL ASSY, FRONT | 1 шт. | — | |
|
| 2 | 54111-02J00 | .HUB, FRONT | 1 шт. | — | |
|
| 3 | 54731-35G00 | SPACER,FRONT HUB BEARING (20. | 1 шт. | — | |
|
| 3 | 54731-35G00 | SPACER,FRONT HUB BEARING (20. | 0 шт. | — | |
|
| 4 | 09262-22034 | .BEARING (22X39X9) | 2 шт. | — | |
|
| 5 | 09283-30073 | .OIL SEAL (30X40X7) | 1 шт. | — | |
|
| 6 | 55311-10H10 | .RIM, FRONT WHEEL (21X1.60) | 1 шт. | — | |
|
| 7 | 55321-35G10 | .SPOKE, FRONT WHEEL | 36 шт. | — | |
|
| 8 | 55325-35G00 | .NIPPLE, FRONT WHEEL | 36 шт. | — | |
|
| 9 | 54711-35G00 | AXLE, FRONT | 1 шт. | — | |
|
| 10 | 54741-35G00 | SPACER, AXLE (L:41) | 1 шт. | — | |
|
| 11 | 54742-35G00 | COVER, FRONT AXLE SPACER | 1 шт. | — | |
|
| 12 | 09159-18016 | NUT | 1 шт. | — | |
|
| 13 | 59220-02J00 | DISC, FRONT BRAKE | 1 шт. | — | |
|
| 14 | 09139-06142 | SCREW (6X13.5) | 4 шт. | — | |
|
| 15 | 55110-10H00 | TIRE, FRONT (80/100-21 57M) | 0 шт. | — | |
|
| 16 | 55200-29F00 | TUBE ASSY, WHEEL INNER | 1 шт. | — | |
|
| 17 | 55261-44AF0 | PROTECTOR, INNER TUBE | 1 шт. | — | |
|
| 18 | 65270-14300 | STOPPER, BEAD | 1 шт. | — | |
|
| 19 | 08322-0108A | WASHER | 1 шт. | — | |
|
| 20 | 08310-0008A | NUT | 1 шт. | — | |
|
| 21 | 59231-36E30-019 | (BLACK) | 0 шт. | — | |
|
| 21 | 59231-36E30-019 | COVER, FRONT BRAKE DISC OPT | 0 шт. | — | |
|
| 22 | 59232-36E30 | WASHER, BRAKE DISC COVER OPT | 2 шт. | — | |
|
| 23 | 09103-06233 | BOLT (6X12) OPT | 2 шт. | — | |
|
