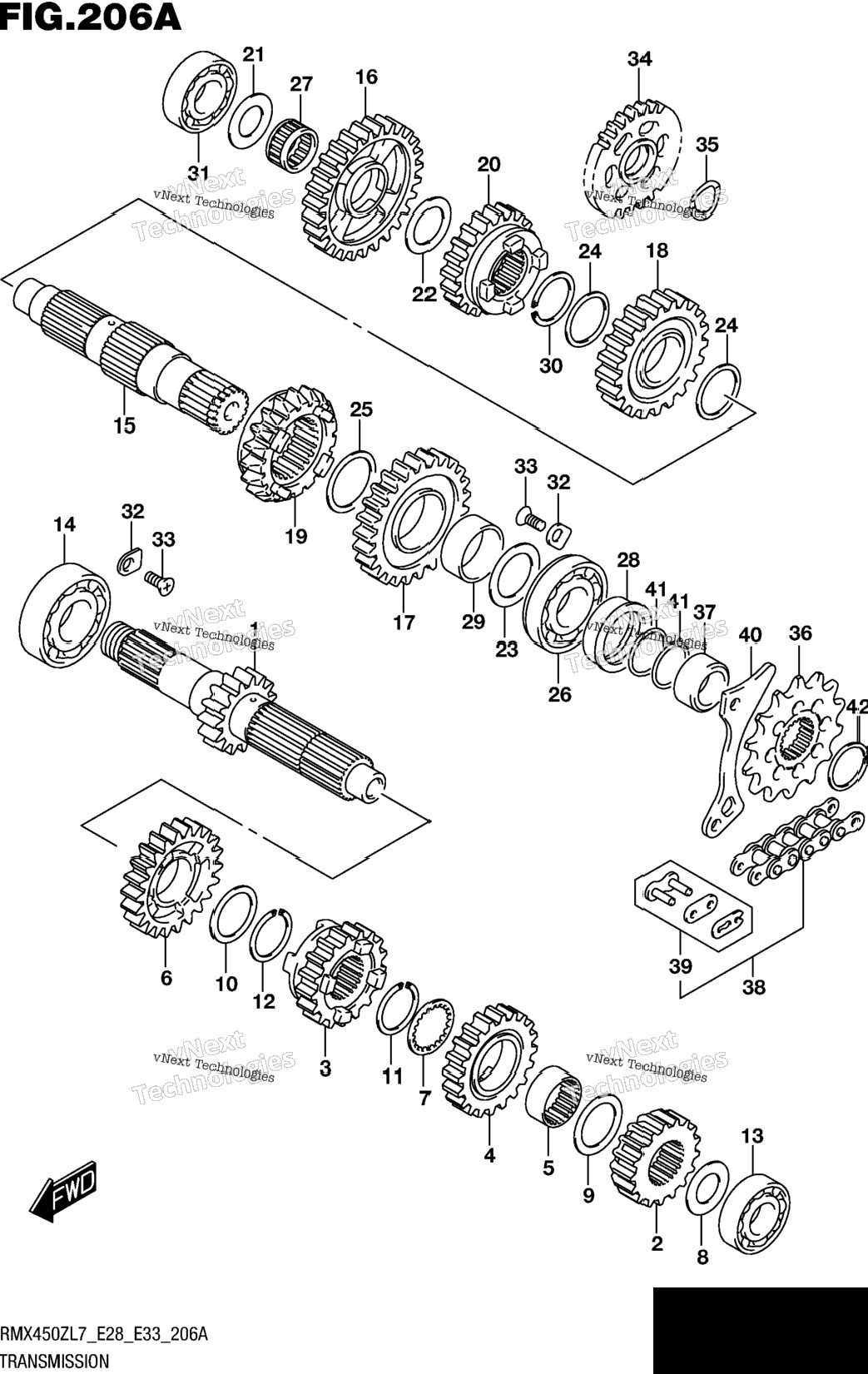

| 1 | 24120-02J01 | SHAFT, COUNTER (NT:13) | 1 шт. | — | |
|
| 2 | 24221-02J00 | GEAR, 2ND DRIVE (NT:18) | 1 шт. | — | |
|
| 3 | 24231-02J00 | GEAR, 3RD DRIVE (NT:20) | 1 шт. | — | |
|
| 4 | 24241-02J00 | GEAR, 4TH DRIVE (NT:19) | 1 шт. | — | |
|
| 5 | 24242-37F00 | BUSH, 4TH DRIVE GEAR | 1 шт. | — | |
|
| 6 | 24251-02J00 | GEAR, 5TH DRIVE (NT:23) | 0 шт. | — | |
|
| 7 | 09167-25026 | LOCK WASHER RH | 1 шт. | — | |
|
| 8 | 09181-17223 | SHIM (17X30X1) | 1 шт. | — | |
|
| 9 | 09181-25059 | SHIM (25X34X1) LH | 1 шт. | — | |
|
| 10 | 09181-25111 | SHIM (25X30X1) | 1 шт. | — | |
|
| 11 | 09380-25010 | CIRCLIP | 1 шт. | — | |
|
| 12 | 09380-25010 | CIRCLIP | 1 шт. | — | |
|
| 13 | 08123-62030 | BEARING LH | 1 шт. | — | |
|
| 14 | 08143-62057 | BEARING RH | 1 шт. | — | |
|
| 15 | 24131-28H00 | SHAFT, DRIVE | 1 шт. | — | |
|
| 16 | 24311-02J00 | GEAR, 1ST DRIVEN (NT:28) | 1 шт. | — | |
|
| 17 | 24321-02J00 | GEAR, 2ND DRIVEN (NT:29) | 0 шт. | — | |
|
| 18 | 24331-02J00 | GEAR, 3RD DRIVEN (NT:25) | 1 шт. | — | |
|
| 19 | 24341-02J00 | GEAR, 4TH DRIVEN (NT:19) | 0 шт. | — | |
|
| 20 | 24351-02J00 | GEAR, 5TH DRIVEN (NT:19) | 0 шт. | — | |
|
| 21 | 09181-17223 | SHIM (17X30X1) RH | 1 шт. | — | |
|
| 22 | 09181-20195 | SHIM (20X30X1) LH | 1 шт. | — | |
|
| 23 | 09181-24005 | SHIM (24X34X1) LH | 1 шт. | — | |
|
| 24 | 09181-25111 | SHIM (25X30X1) | 2 шт. | — | |
|
| 25 | 09181-27015 | SHIM (27X33X1) RH | 1 шт. | — | |
|
| 26 | 09262-24001 | BEARING (24X56X14) LH | 1 шт. | — | |
|
| 27 | 09263-20107 | BEARING (20X24X10) | 1 шт. | — | |
|
| 28 | 09289-31003 | OIL SEAL (31X40X8.5) | 1 шт. | — | |
|
| 29 | 09300-27005 | BUSH (27X31X13) | 0 шт. | — | |
|
| 30 | 09380-25010 | CIRCLIP RH | 1 шт. | — | |
|
| 31 | 08123-62030 | BEARING RH | 1 шт. | — | |
|
| 32 | 24741-20A00 | RETAINER | 3 шт. | — | |
|
| 33 | 09126-06011 | SCREW (6X12) | 3 шт. | — | |
|
| 34 | 26260-35G00 | GEAR, KICK STARTER IDLE | 1 шт. | — | |
|
| 35 | 26260-35G00 | (NT:23) | 0 шт. | — | |
|
| 36 | 26264-28H00 | WASHER, KICK IDLE | 1 шт. | — | |
|
| 37 | 27511-35G30 | SPROCKET, ENGINE (NT:13) | 1 шт. | — | |
|
| 38 | 27511-35G20 | SPROCKET, ENGINE (NT:14) OPT | 1 шт. | — | |
|
| 39 | 27531-35G01 | SPACER, ENGINE SPROCKET | 1 шт. | — | |
|
| 40 | 27600-02J01-114 | CHAIN ASSY, DRIVE | 0 шт. | — | |
|
| 41 | 27600-02J01-114 | (DID520MXV 114LE) | 0 шт. | — | |
|
| 42 | 27620-02J01 | .JOINT SET, CHAIN | 1 шт. | — | |
|
| 43 | 27641-02J00 | PLATE, FRONT CHAIN GUIDE | 0 шт. | — | |
|
| 44 | 09280-21010 | O-RING (D:1.9,ID:21.8) | 2 шт. | — | |
|
| 45 | 08331-3124A | CIRCLIP | 1 шт. | — | |
|
